SPECIFICATIONS

Brand Name: HTRC

Is Electric: No battery

Origin: Mainland China

Material: Metal

Recommend Age: 14+y

RC Parts & Accs: Lipo Charger

Size: 136 x 141*34mm

For Vehicle Type: Helicopters

Use: Vehicles & Remote Control Toys

Certification: CE

Certification: FCC

Upgrade Parts/Accessories: Charger

Remote Control Peripherals/Devices: Battery Charging Units

Tool Supplies: Assembled class

Quantity: 1 pcs

Model Number: Imax-B6 ac

Four-wheel Drive Attributes: Assemblage

Operation voltage range: DC 11.0 ~ 18.0 AC 100V ~ 240V

Circuit power: AC to DC adaptor (DC 11.0 ~ 18.0V / 5A)

Max. charge power: 80W

Max. discharge power: 5W

Charge current range: 0.1~6.0A

Discharge current range: 80W:0.1~2.0A

Current drain for balancing Li-Po: 300mAh/cell

Li-Ion / Polymer cell count: 1~6 series

Pb battery voltage: 2V~20V

features: RC charger

features 2: Llipo charger

features 3: Lipo battery charger

features 4: Balance charger

FAQ

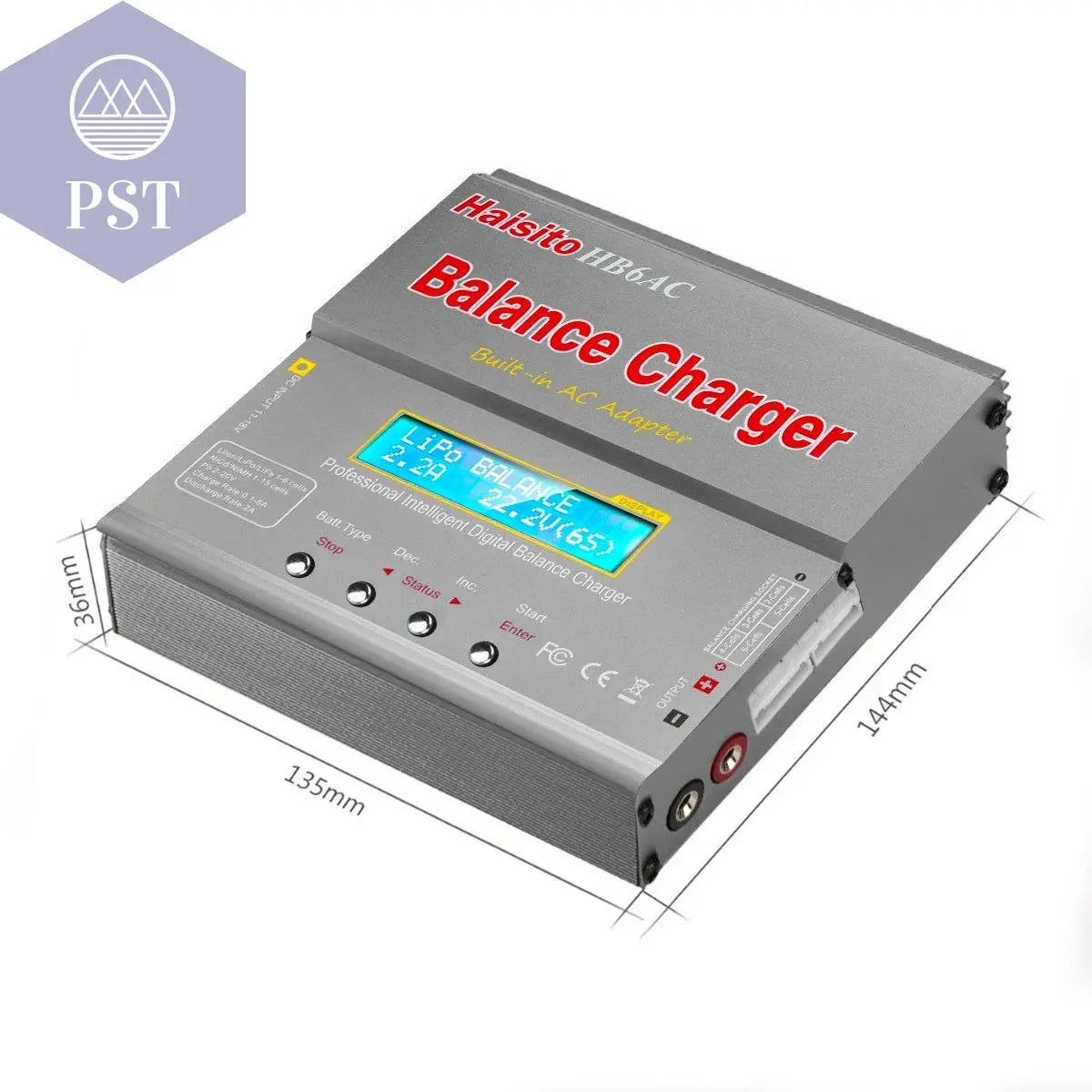

Q:What Difference of B6ac between Hb6 ac ？

A:The HB6 ac and B6 ac is just  the color and brand differ,same Function,In order to satisfy to color preferences of more customer,Please don't worry.

Q:Does The IMAX B6 ac Original?

A:Yes.Our imax b6 ac is "HTRC "Brand And produced by Our HTRC factory which focus on the high quality chargers.not Skyrc,no fake,and don't need Security Code,if you mind,please don't buy,thanks!

Q:How to charge correctly when received the goods?

A:after you received the goods,please follow those using turn

1.plug in the adapter firstly.

2.then plug the machine.

(if you plug the machine firstly,that will caused the machine can not open or work unnormally)

Q:How to use?

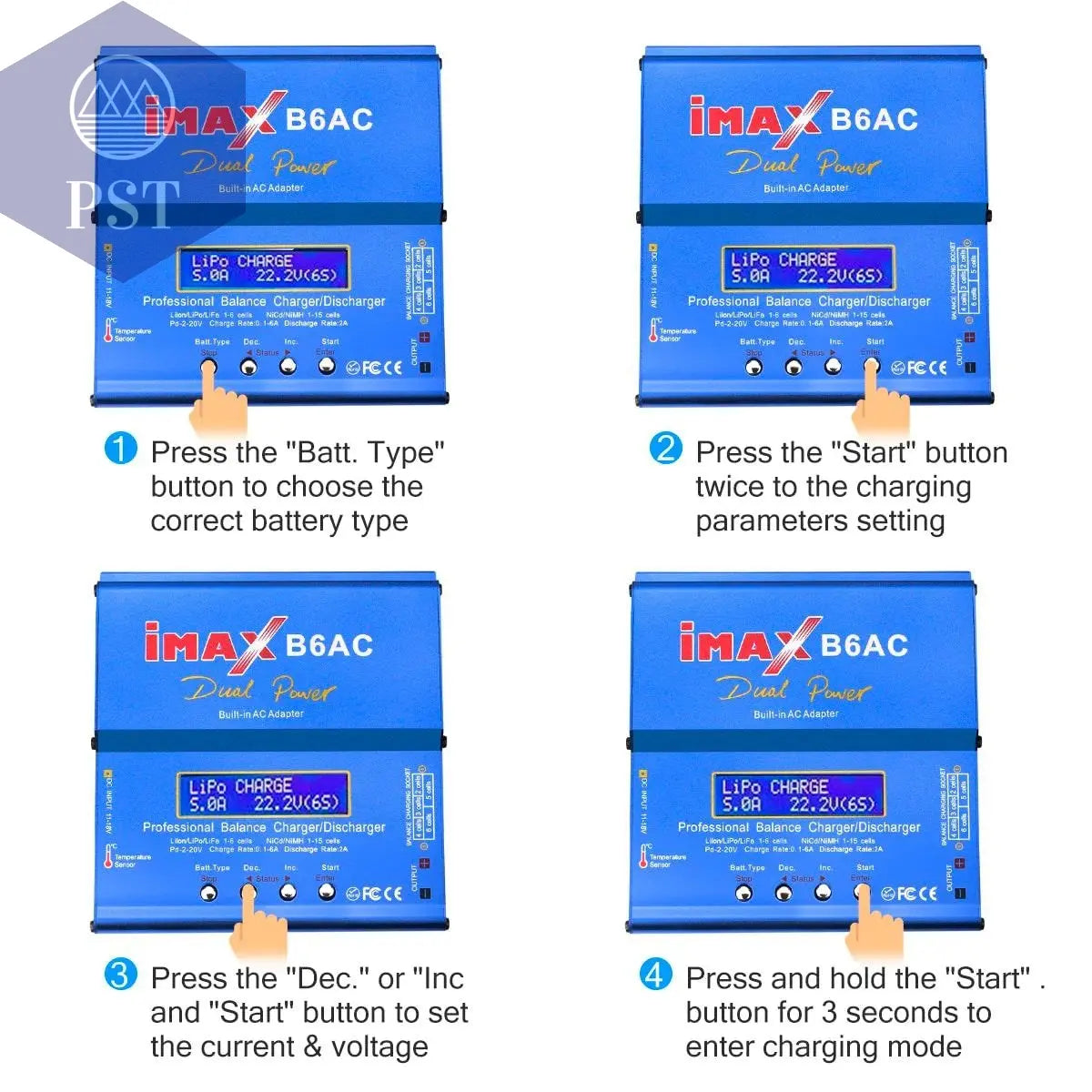

A:Do as below the picture show:

1.press the "battery type"button to choose the correct battery type

2.press the "start"button twice to the charging parameters setting

3.press the "dec."or "inc" and "start"button to set the current & voltage .

4.press and hold the "start"button for 3 seconds to entrt charging mode .

Specifications:

Operation Voltage range :

DC 11.0 ~ 18.0 Volt - AC 100V ~ 240V 50/60Hz
Circuit Power : AC to DC adaptor (DC 11.0 ~ 18.0V / 5A)
Max. Charge power 80W
Max.Discharge power 5W
Charge Current range : : 0.1~6.0A
Discharge Current range : 0.1~2.0A
Current Drain for Balancing Li-Po : 300mAh/cell
NiCd / NiMH battery Cell Count : 1~15 cell
Li-Ion / Polymer Cell Count : 1~6 series
Pb Battery Voltage : 2V~20V

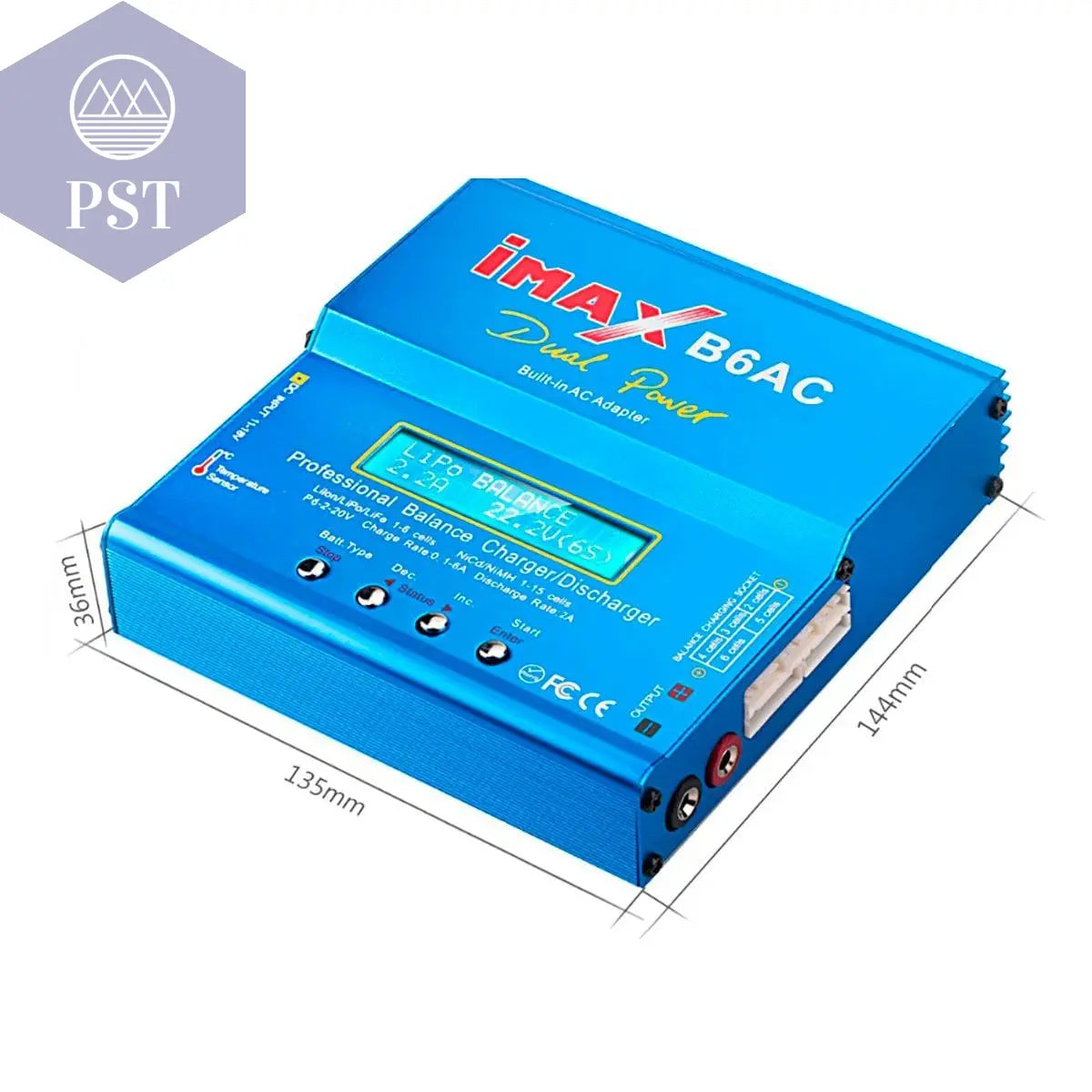

Dimensions : approx. 13.5x14.4x3.6cm

Package Included:

1 x B6AC Charger
1 x Multi-fuctional extension wire
1 x Universal crocodile clip
1 x JST plug

1 x Manual
1 x AC plug

Please note:

Our machine can't support to  measure the 1s battery 's voltage and Resistance

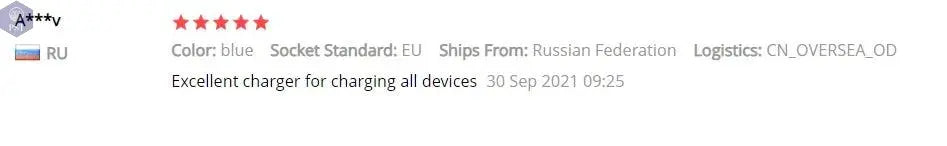

Feedback:

Charge well and good quality:

NOTE:

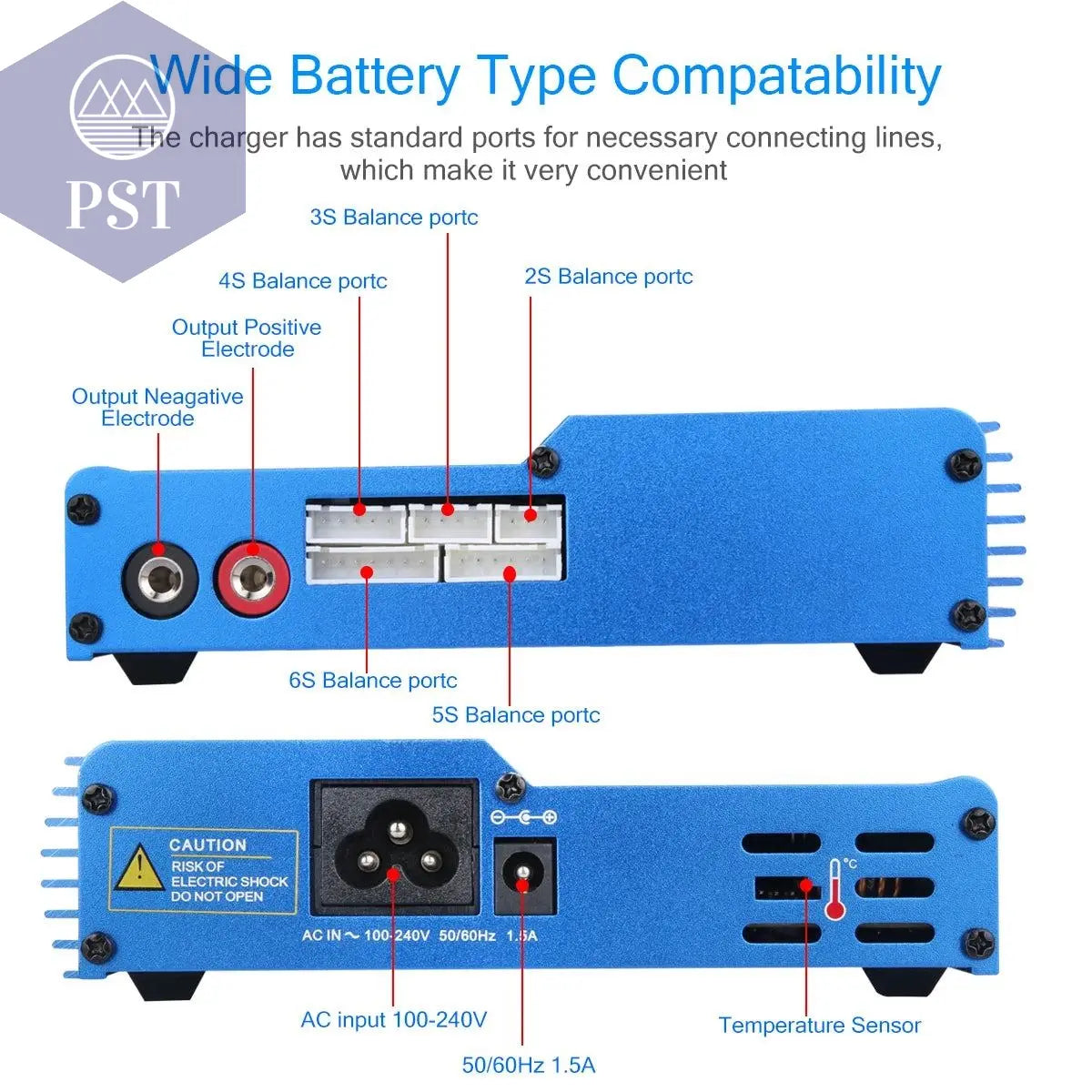

1.About the positive electrode and negative electrode interfaces,you need to connect correctly,otherwise,it will fail to charger.

2.About the connectors,you need to connect correctly,otherwise,it will fail to charger.

3.If you choose the balance mode about the balance ports ,you need to connect correctly ,otherwise,it will fail to charger

4.After setting ,press the "ENTER"button for 3 seconds,then you can charge the battery .

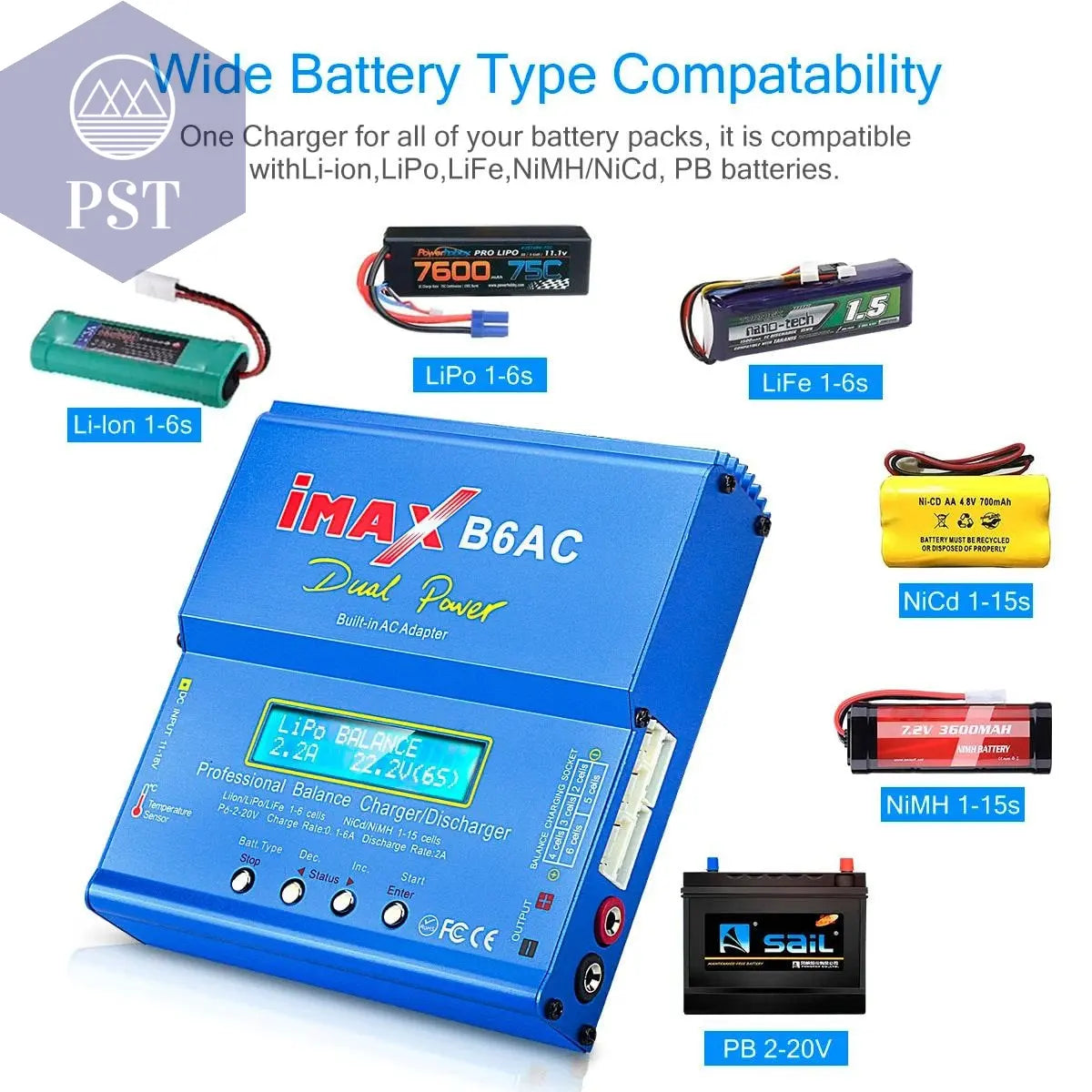

1.PROGRAM SELECT LIPO BATT : to charge /balance charge/fast charge/storage/discharge/lipo/lion/life batteries

2.USER SET PROGRAM: to set the parameter of charge batteries which you need .

3.PROGRAM SELECT NIMH BATT :to charge/discharge/cycle/nimh/nicd batteries

4.PROGRAM SELECT SAVE DATA : save setting data

5.PROGRAM SELECT PB BATT:to charge/discharge the pb (lead acid ）batteries .
