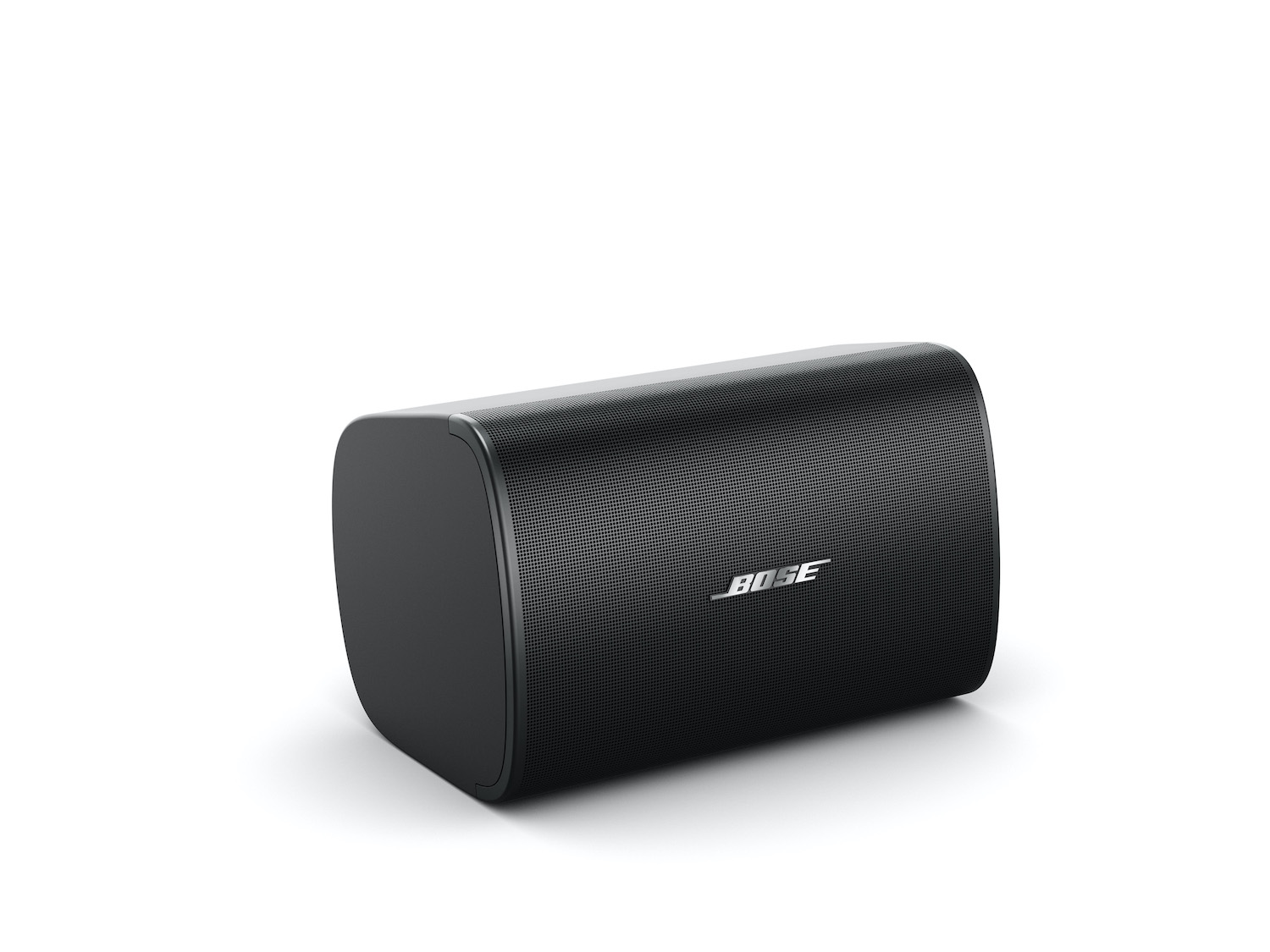

Bose Professional DesignMax DM6SE Surface Mounted Loudspeaker Pair of Black Bose Speakers

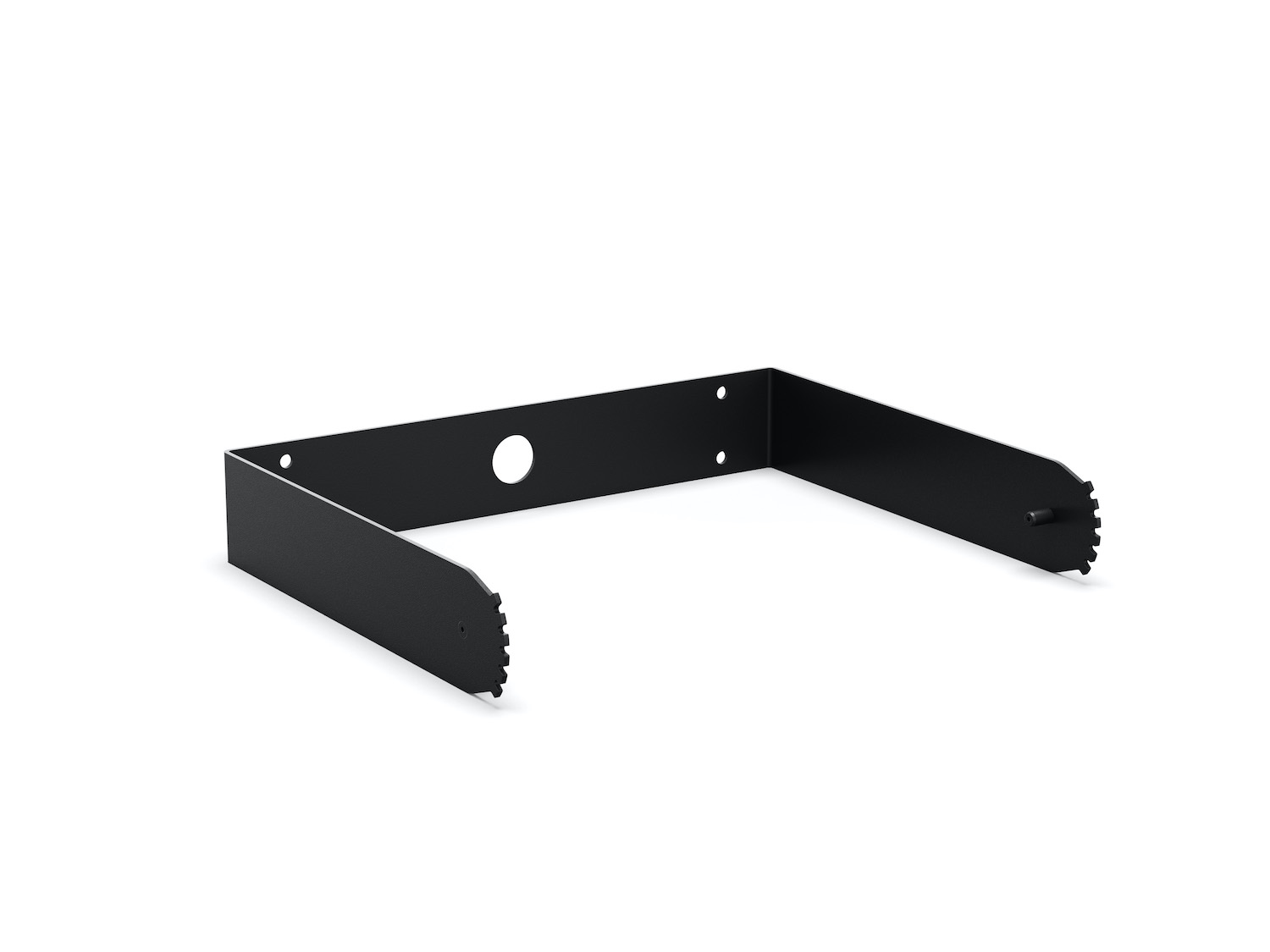

With coaxial two-way drivers, the 125-watt DesignMax DM6SE loudspeaker offers rich lows and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. The DM6SE features a 6.5-inch woofer and a 1.25-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 59 Hz – 20 kHz. The DM6SE is surface-mounted, IP55 outdoor-rated, and locks onto a hidden QuickHold U-bracket for fast, secure installation.
Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated optionsDeliver rich lows and clear, intelligible highs with coaxial two-way drivers — no DSP or EQ required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening levelEnsure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the acoustic pattern of the woofer to the pattern of the tweeterBlend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logosReduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damageInstall easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easierInstall DM6SE outside — IP55 rating with standard aluminum grille for outdoor use
Technical SummaryFrequency Response (+/-3 dB)
70 - 20,000 HzNominal coverage (H x V)
125° conicalPower Handling, peak
500 WMaximum SPL @ 1m
111 dBFrequency Range (-10 dB)
59 - 20,000 HzPower Handling, long-term continuous
125 WSensitivity (SPL/1W @ 1 m)
90 dBNominal Impedance
8 Ω (transformer bypass)
