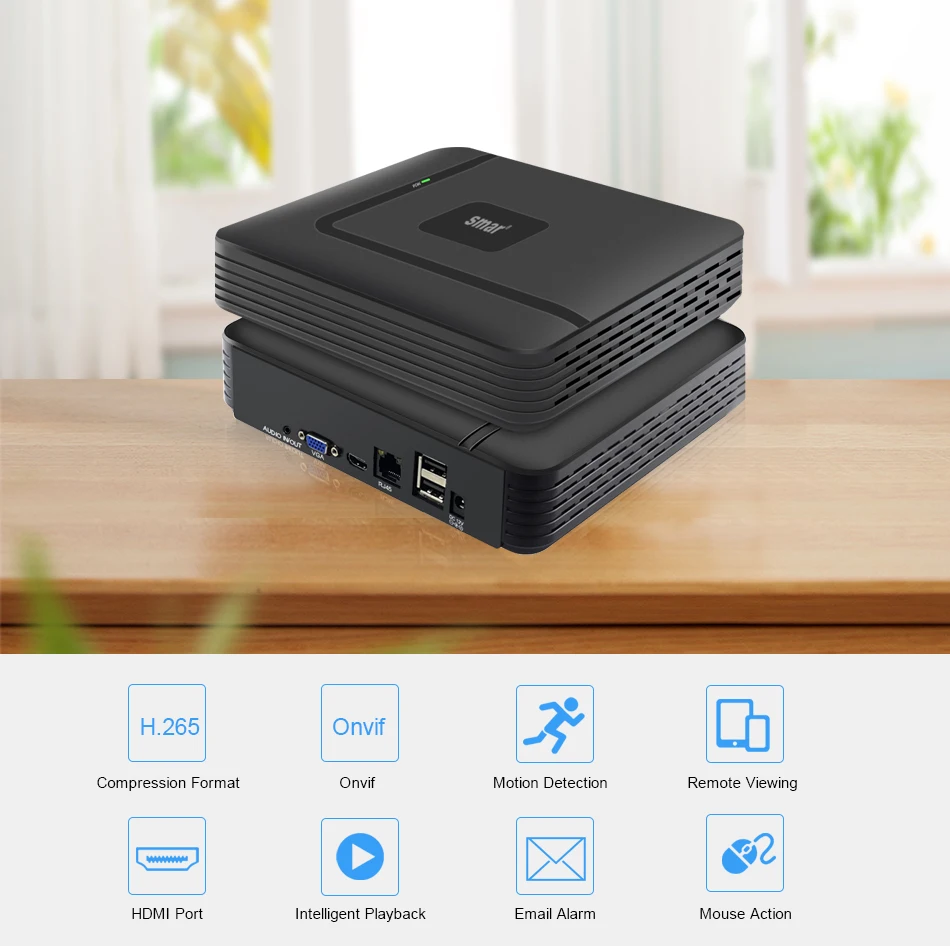

Smar H.265 CCTV NVR 8CH 9CH 16CH 32CH For 5MP 4K IP Camera Support Face Detection Email Alart Video DVR Recorder XMEYE APP Onvif

Smar H.265 CCTV NVR 8CH 9CH 16CH 32CH For 5MP 4K IP Camera Support Face Detection Email Alart Video DVR Recorder XMEYE APP Onvif

Smar H.265 CCTV NVR 8CH 9CH 16CH 32CH For 5MP 4K IP Camera Support Face Detection Email Alart Video DVR Recorder XMEYE APP Onvif

SPECIFICATIONS

Brand Name: smar

Origin: Mainland China

Hign-concerned Chemical: None

Network Protocol: TCP/IP

Two-way Audio: no

Compression Format: H.265

Hard drive Interface Type: SATA

POE: None

Certification: none

e-Cloud(P2P): YES

IP Mode: Static IP address

Hard Drive Size: 3.5''

Supported Mobile Systems: iPhone OS

Supported Mobile Systems: Android

Model Number: N1004F/N1008F/N1016GL

Audio Input: No

Technology: Network

Supported Operating Systems: Microsoft Windows 2000

Supported Operating Systems: Microsoft Windows ME

Supported Operating Systems: Microsoft Windows XP

Supported Operating Systems: Microsoft Windows Vista

Supported Operating Systems: Microsoft Windows 98

Supported Operating Systems: Microsoft Windows 7

Video Standard: NTSC

Video Standard: PAL

Smart home platform: none

Backup Type: Hard Drive

Video Resolution: 1080p

Alarm Action: FTP Photo

Network Interface: RJ45 10/100M

Audio Output: None

Communication Interface: RS232

Name: Digital Video Recorder

Input for 8 Channel NVR: 9*4K 8MP IP Camera

Input for 9 Channel NVR: 10*4K 8MP IP Camera

Input for 16 Channel NVR: 16*4K 8MP IP Camera

Onvif/P2P: Support

Compression Format: H.265

Video Output: 1*1080P HDMI/1*VGA

Type: Mini CCTV NVR

Power: EU Standard(AU/UK can choice)

Input for 32 Channel NVR: 32*4K 8MP IP Camera

Choice: yes

semi_Choice: yes

Note:

If you purchase the Security Video Recorder with HDD, we will install the HDD in the video recorder before leaving the factory to avoid crushing during transportation!

Customs TAX & Duty & VAT:

1.From CN Warehosue
About Europe member country:
IF amount is lower than €150,Aliexpress will charge VAT and customs duty from buyer.
IF higher than €150,buyer must need to pay the customs duty and VAT in destination country.
About other country , buyer need to pay the customs tax in the destination
2.From ES/PL Warehouse,Aliexpress will charge VAT from buyer
3.From RU Warehouse,be FREE of customs tax.Russian warehouse only ship to local address
PS:Aliexpress just withhold and remit tax
4.Spain warehouse can ship to the local (except the Canary Islands and remote city) and the following countries:Portugal, France, Germany, Italy, Austria,Czech Republic,  Denmark, Luxembourg, Netherlands, Belgium,  Hungary, Poland,  Slovenia;
(Note:If your address is defind as remote area:Zone 5 Canary Island post code start with 35/38 and Zone 4 Ceuta & Melilla post code start with 07/51/52, we can't send your order from Spain warehouse,but we can send your order from China as free)
5.Poland Warehouse can Ship to Poland, Portugal,France,Germany, Italy, Austria, Czech Republic, Denmark,Luxembourg,Netherlands,Belgium, United Kingdom,Hungary,Spain, Slovakia, Slovenia, Ireland,Finland,  Latvia, Lithuania, Sweden, Bulgaria, Estonia, Greece,Romania Country.

	Specifications	9CH	10CH	16CH	32CH
System	Main processor	XM8536D	XM8536E	XM8536E	NT98323
	Operating System	Embedded Linux
	System resources	Simultaneous multi-channel real-time recording, playback, network operation, USB backup
Interface	Operator interface	16-bit true color graphic menu operation interface, support mouse operation
	Preview	1/2/4/6/8/9	1/2/4/6/9/10	1/2/4/6/8/9/16	1/2/4/6/8/9/16/25/32
Video	Video input (IP	9*4K Unreal-time（Access bandwidth 60Mbps）	10*4K（Access bandwidth 72Mbps）	16*4K（Access bandwidth 72Mbps）	32*4K
	Video compression	H.265AI/H.265+(compatible H.265/H.264)
	Display quality	Max:4K
	Playback quality	4K/5M/4M/3M/1080P
	VR	Not support
	human shape / Face	Support(depend on camera,the camera of NETIP protocol can support face recognition)
Audio	Audio compression	G.711A
	Intercom	support
Record & playback	Recording mode	Manual>Alarm>Dynamic Detection>Timing
	Localpayback(real-time+ Un real-time)	1ch4K/2ch5M/1ch4M /2ch3M/3h1080P	1ch4k/2ch5M/2ch4M/ 3ch3M/5ch1080P	1ch4k/2ch5M/2ch4M/ 3ch3M/4ch1080P	2ch4K@12fps/3ch5M@20fps/4ch4M@20fps/4ch3M@20fps/6ch1080P@25fps
	Search mode	Search by Time/Calendar/Event/Channel/Face
	Record storage	HDD、Network
	Backup mode	Network backup, USB hard disk, USB burner, SATA burner
External interface	Video output	1ch VGA，1ch HDMI HD output
	Audio I/O	1/1（3.5mm）
	Alarm I/O	0/0
	Network interface	1*RJ45 10M/100M Adaptive Ethernet port			1*RJ45 100M/1000M Adaptive Ethernet port
	USB interface	2*USB2.0 ports(one USB extension interface is reserved)
	HDD	1 SATA(Up to 14TB for each disk)
	ESATA	No
	Serial interface	No
Other	ONVIF	Support
	power supplyr	DC12V 2A(If the hard drive is greater than 2TB, please replace it with a 3A or higher power supply)
	Power Consumption	<10W(Without HDD)
	Work environment	Temperature:0°C －55°C, Humidity:10%－90%RH , Atm:86kpa－106kp

Note:
8CH NVR is differences with 9CH/16CH NVR
Differences1: 8CH Shell Material: Botton Metal(White), 9CH/16CH Shell Material:Plastic(Full Black)
Differeance2:Video Input(IP): 8CH Max support 9*4K IP Cameras,9CH max support 10*4K IP Cameras,16CH max support 16*4K IP Cameras.
Same: Other function are t he same,as H.265 Video Compression,motion detection,Email alarm,Multiple Language....
Please check the picture as follow：

Now the parameters of the 16CH CCTV NVR are being updated, Please refer to the actual product reference standard.1. H.265 Vdieo Compresion for 9CH/ 10CH/ 16CH,4MP/5MP/1080P HD Resolution2.Realtime live display up to 9 / 10 / 16 IP Cameras3.Support Multi Languages.4.Support VGA & HDMI Video Output.5. Backup Via USB Drive + 3.5'' Hard disk (up to 6T )( NO Hard Disk in the Package)6.Support iPhone,Android Mobile remote access through P2P Cloud.7.Cloud:XMEYE.NET;APP: XMEYE8.Motion detection and Email alarm.9.Support ONVIF2.3 Agreement.(Compatible ONVIF2.0)

Packing List:

1* 9CH/ 10CH/16CH/32CH H.265 NVR
1* USB Mouse
1* DC12V Power Adapter for NVR
1* User's Manual

For 9CH NVR:1. 9CH: it's XM Chip;
2. Max support 9*4K(8MP) IP Camera
3. Don't support Wifi Adapter;
4. 9CH(XM) Max Support 1920x1080P Display
5.Support Multiple Languages: Chinese, English, Italian, Spanish, Japanese, Russian, French, Germany, Portuguese, Turkish, Greek, Vietnamese, Indonesian, Czech

For 10CH NVR:1.10CH:It's Hi3536 Chip;
2. Max support 10*4K(8MP) IP Camera
3. Support Wifi Adapter, the Wifi Adapter model is:7601
4.10CH(Hi3536) Max Support the 4K Display

5.Support Multiple Languages: Chinese, English, Italian, Spanish, Japanese, Russian, French, Germany, Portuguese, Turkish, Greek, Vietnamese, Indonesian, Czech

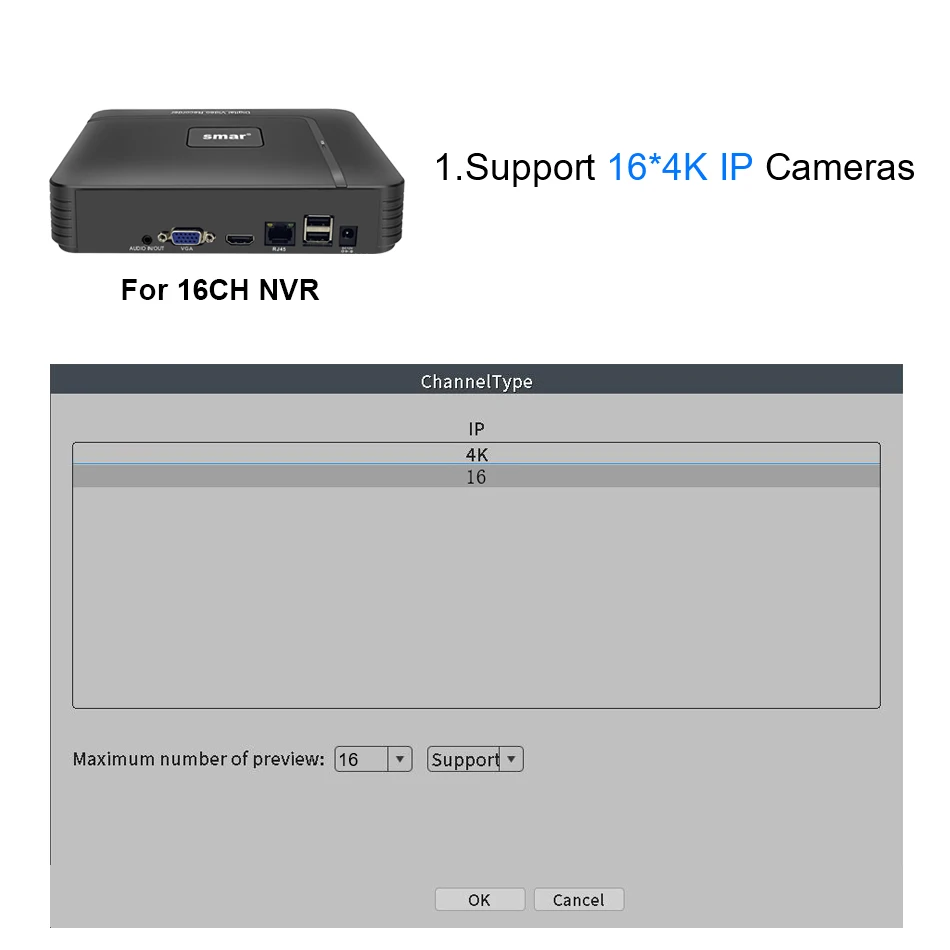

For 16CH NVR:

 For 16CH NVR:
1. 16CH is XM8536E Chip;
2. Max support 16*4K(8MP) IP Camera
3. Don't support WiFi Adapter
4. 16CH(XM8536E) Board Max Support the 4K Display
5.English, Chinese, Italian, Spanish, Japanese, Russian, French, German, Portuguese, Turkish, Greek, Vietnamese,Indonesian, Czech

For 32CH NVR

1.32CH is NT98323 Chip;
2. Max support 32*4K(8MP) IP Camera
3. Support Wifi Adapter, the Wifi Adapter model is:7601
4.32CH(NT982323) Max Support the 4K Display5.Support Multiple Languages: Chinese, English, Italian, Spanish, Japanese, Russian, French, Germany, Portuguese, Turkish, Polish, Romanian, Hungarian, Finnish, Persian, Thai, Greek, Vietnamese, Brazilian, Hebrew, Indonesian, Arabic, Swedish, Czech, Bulgarian, Slovak, Dutch

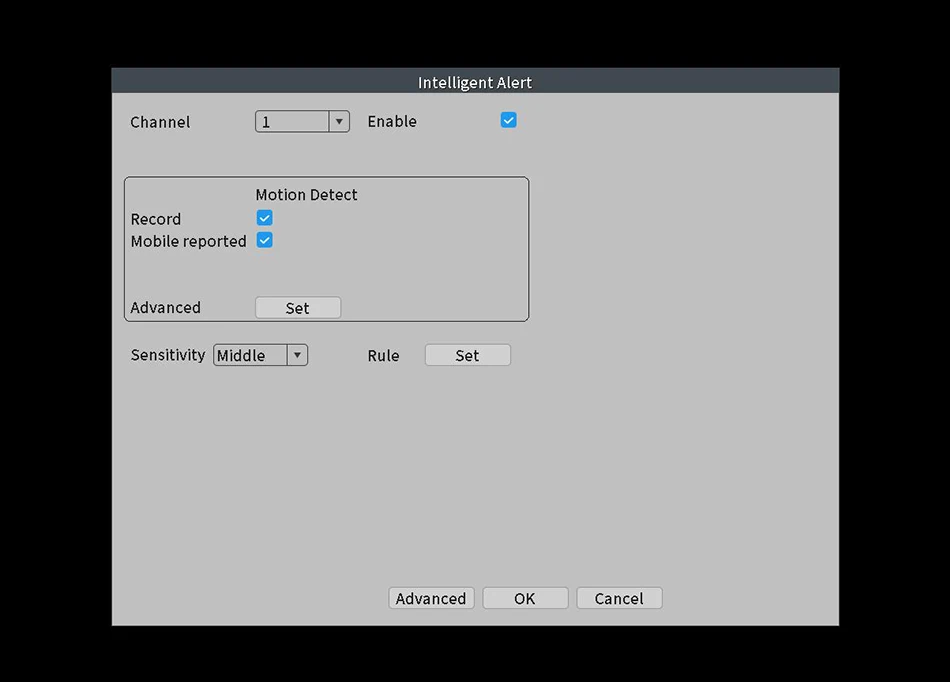

Motion Detection & Email Alert

When the Detect Motion happened in your home and office. you'll get instant alarming email when the home or office is invaded. You can even ensure that false alarms are avoided by setting the motion detection "mask"to block areas with constant movement.
Note:Our DVR Motion Detection Function only Support the following Brand of IP Camera; As: XM, Dahua, Safer, HIVT, Part of HIKVISION. And if your IP Camera is other Brand, Can't used the Motion Detection Function with Our DVR. ( Please note before when you buying)

E-mail SetPlease note: SMTP Server only support these Email Box:126,163,gmail,sina,139,156,qq format, And the recipient can set up 5 vaild mail.

AI Face Detection

AI face detection is more easy to catch the detail arround you . When someone invades, the smar security camera can clearly capture the details of the person's face and protect your property at all times.Support ONVIF

You can connect any brand's Onvif IP Cameras to our this NVR;

Reminder:Smar's Video Recorder all support ONVIF and NETIP Protocol;Netip: It is a Private protocol, only applicable to Network Video Products of XM Scheme；Onvif: It is an international open network video product standard network interface protocol；Onvif Advantages:Onvif likes a communication bridge, It can implement multiple devices(IP Camera and Video Recorder) from different manufacturers connected to each other, mutual Communication.Onvif Disadvantages:The standards of onvif protocol are also different for video network products of different manufacturers;So,Their communication with each other will cause some bad problems, such as: motion detection can not work normally; Audio and video can't be synchronized; Loss of video data, etc......(Note: We recommend that when you buying the Network Video Recorder, also buying the IP Camera from our store, Because they have perfect private protocol between them, it can fully display products all of the functions.)

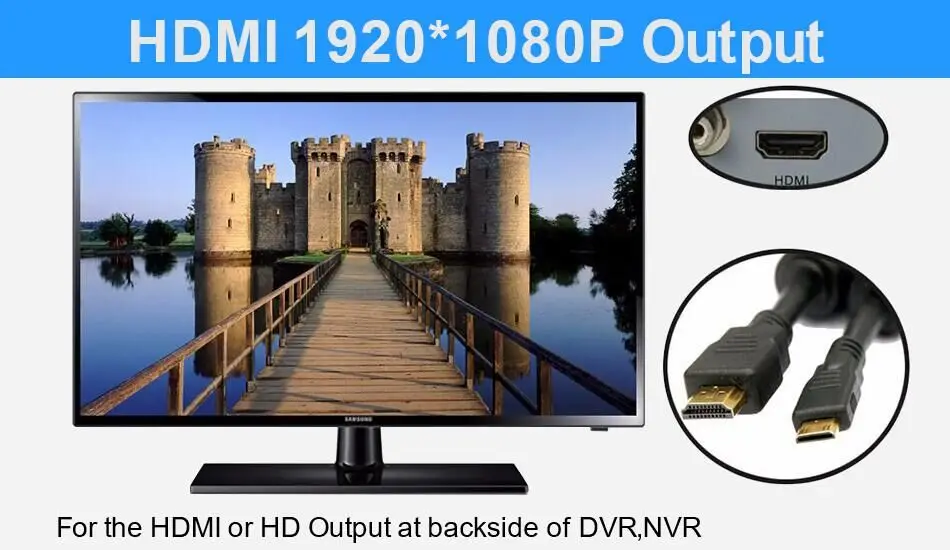

HDMI & VGA Output

Default Display of Resulution:1920*1080,Your monitor must be has the same display of Resolution, otherwise it will not image outputEasy access via multi-platformSupport Mobile Phone iOS, Android System，Remote view of mobile phones, any time... any where...How to connect IP cameras to NVR?
1. Please connect the power supply to IP Cameras and NVR;
2. Please connect the IP cameras to the Router through the network cable (Select router for different channels according to the number of cameras)
3. Please connect NVR to Router through the network cable;
4. Log in to the NVR, then search the IP address of IP cameras through NVR, add the IP address of IP cameras to NVR, and then they will be able to work together!（Note: If your IP Cameras is not ours, Please check whether your IP cameras support the onvif protocol, otherwise they will not work together!）

Why choose H.265 NVR?H.265 More Clear , HD resolution offer you best image quality in a lower bit rate.
Save more storage space,can reduce 40%-50% file size,save your HDD storage space and reduce your purchase cost

If you need 1TB/2TB/3TB/4TB HDD, please click below pic for shopping.

9CH/16CH NVR Size and Multi angle display:

8CH/32CH NVR Size and Multi angle display:

How to remote view through Mobile phone?1How to remote view through Mobile phone?
1. Dowload XMEye Pro Free APP in your mobile phone;
2. Open the software register an account and login.
3. Add devices( Connect the camera to the NVR first)
4. Add successfully, enjoy live video.VMS For Local Review & RecordDefault IP Address: 192.168.1.9
Username: admin
Password: null (empty)
Default Username of CMS: super
Password: null (empty)
When you log in to VMS for the first time, Device list is empty, Please add your device at "System->Device Manager"
(As usual, DVR default IP address will be 192.168.1.9, but if your local Internet IP address with the same our default IP address, You must be changed the default IP address, you can edit the IP address of DVR by VMS.)
