BSIDE Digital Clamp Meter
BSIDE Digital Clamp Meter 1mA High-Precision Ammeter Pliers True RMS DC AC Current Car Repair Electrical Temp Tester Multimeter

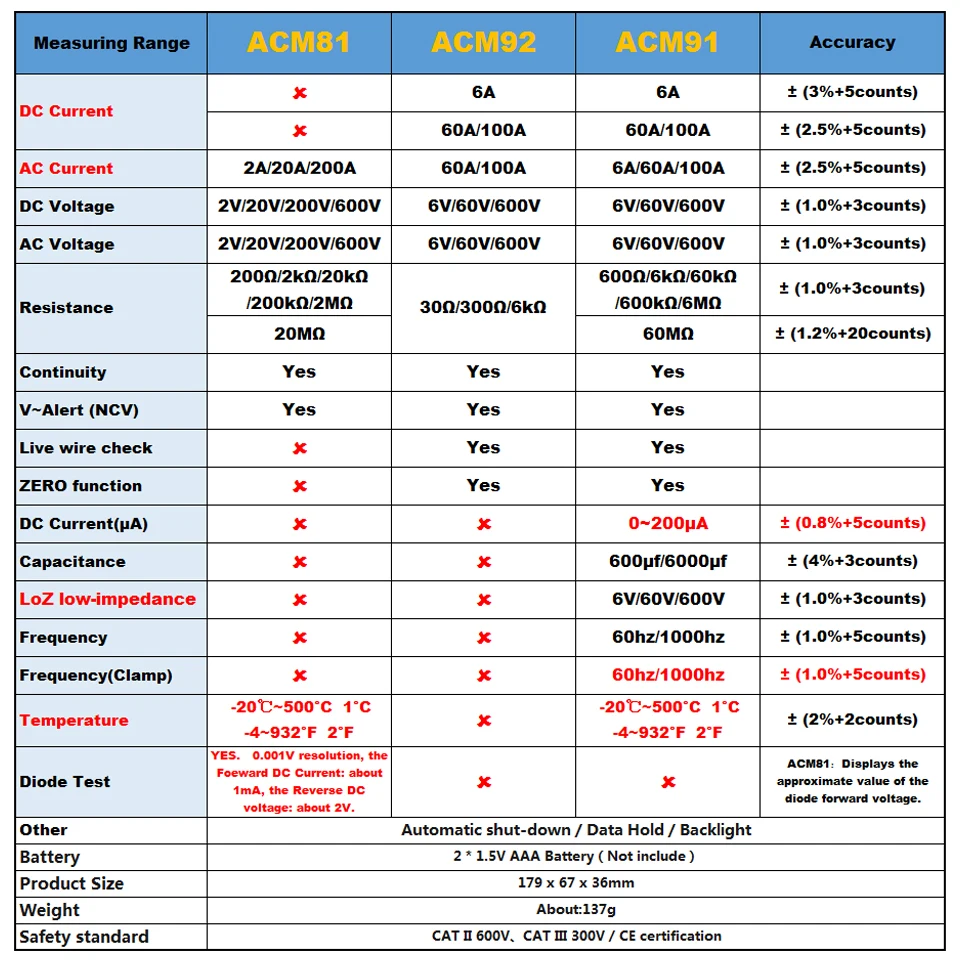

SPECIFICATIONS
Brand Name: BSIDE
BSIDE Model: AcM91
DIY Supplies: ELECTRICAL
Origin: Mainland China
Measuring Inductance Range: N/A
Weight: 161g
Dimensions: 175mm x 5.5mm x 35 mm
Operating Temperature: 0-40C
Measuring Current Range: ACM91/92 (DC/AC 100A), ACM81 (AC 200A)
Display Type: Analog and Digital

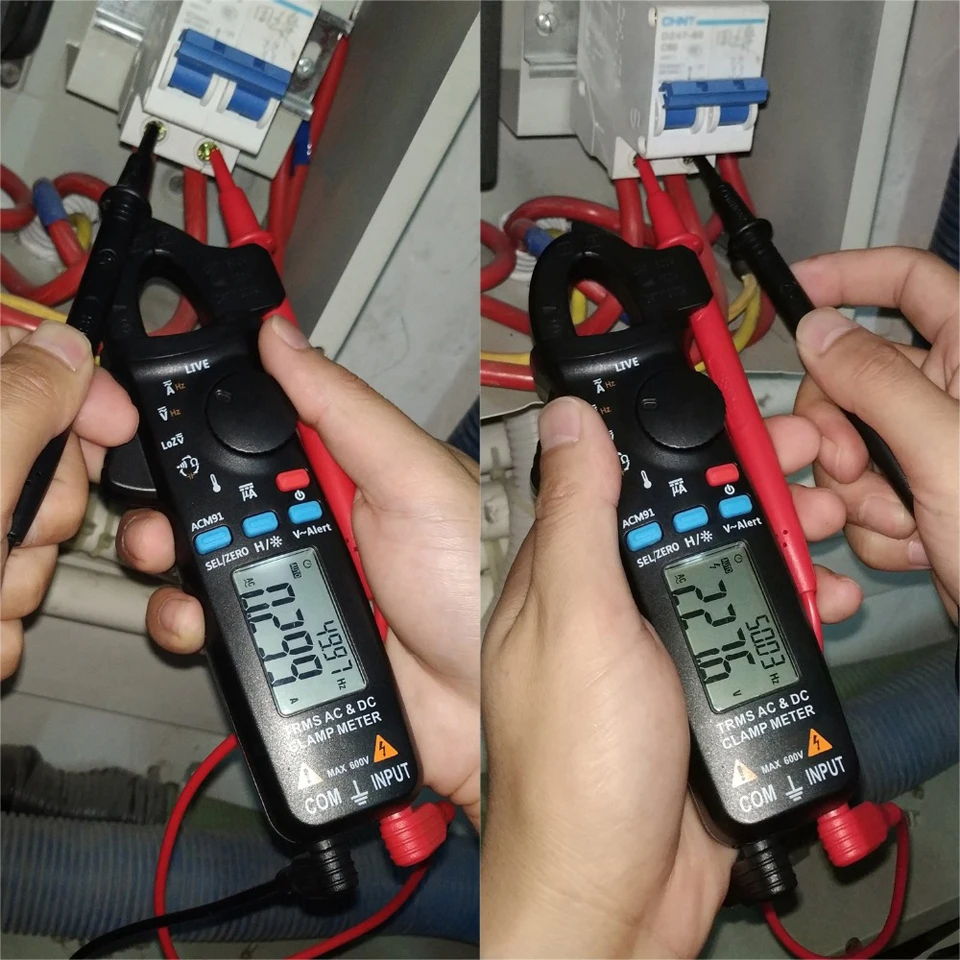

Measuring Voltage Range: 6V/60V/600V (AC/DC)
Measuring Resistance Range: 600/6k/60k/600k/6M/60M ohm
Certification: CE
Certification: FCC
Certification: RoHS
Measuring Capacitance Range: 600uF/6000uF (ACM91)
Model Number: BSIDE ACM91 Clamp Meter
True RMS: Yes.
Minimum DC/AC Current: 1mA by jaws.
ACM81 Maximum display: 2000 counts.
ACM92/91 Maximum display: 6000 counts.
Operating mode: Auto range
Low Impedance Voltage Test: Yes.(ACM91)
DC microampere: Yes.(ACM91)

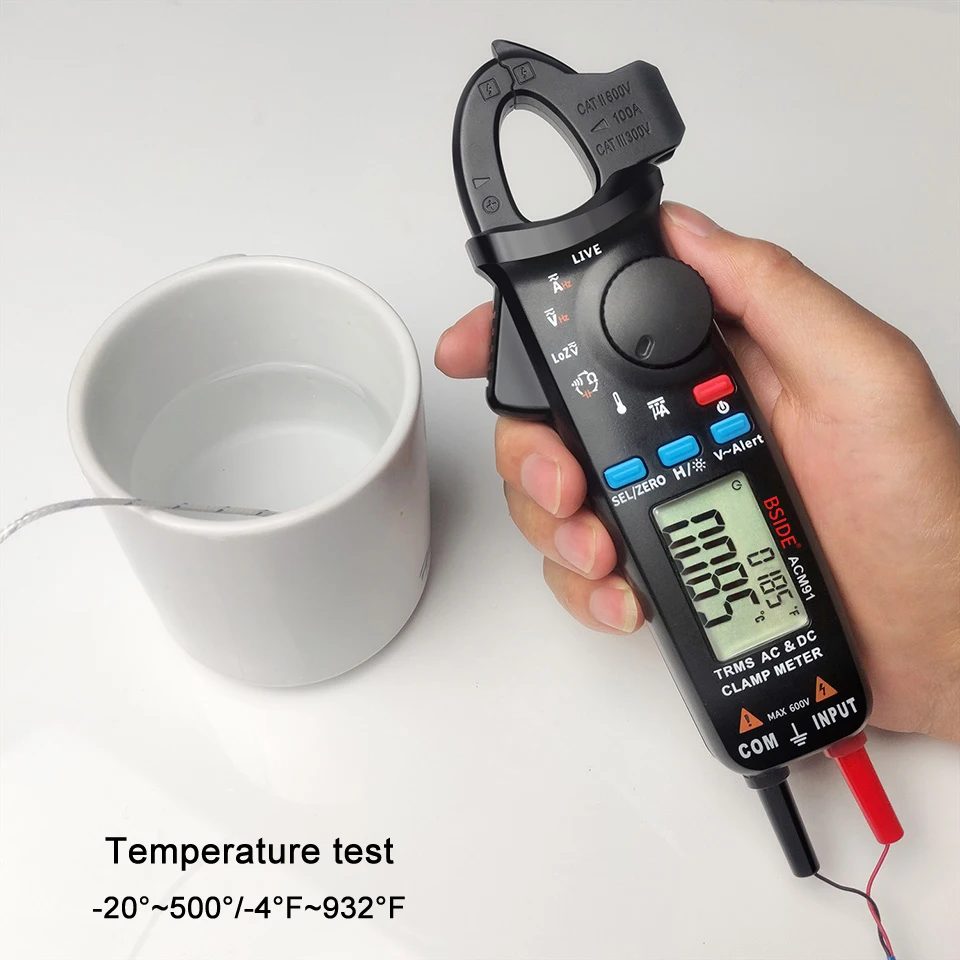

Temperature: -20C~500C.(ACM91)
V-alert measurement (NCV): Yes.
Continuity: Yes.
LIVE wire check: Yes.
Frequency: Yes.
Continuity/Buzzer: Yes.
Battery test: Yes.
Diode: Yes.(ACM81)
Power supply: 2*1.5V AAA (Not included)
Safety standard: IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, IEC-61010-2-033 standar
Choice: yes
semi_Choice: yes
● Ultra-portable tools for advance electricians. The DC AC current can be tested quickly, accurately and safely without damaging the insulation on the line surface.

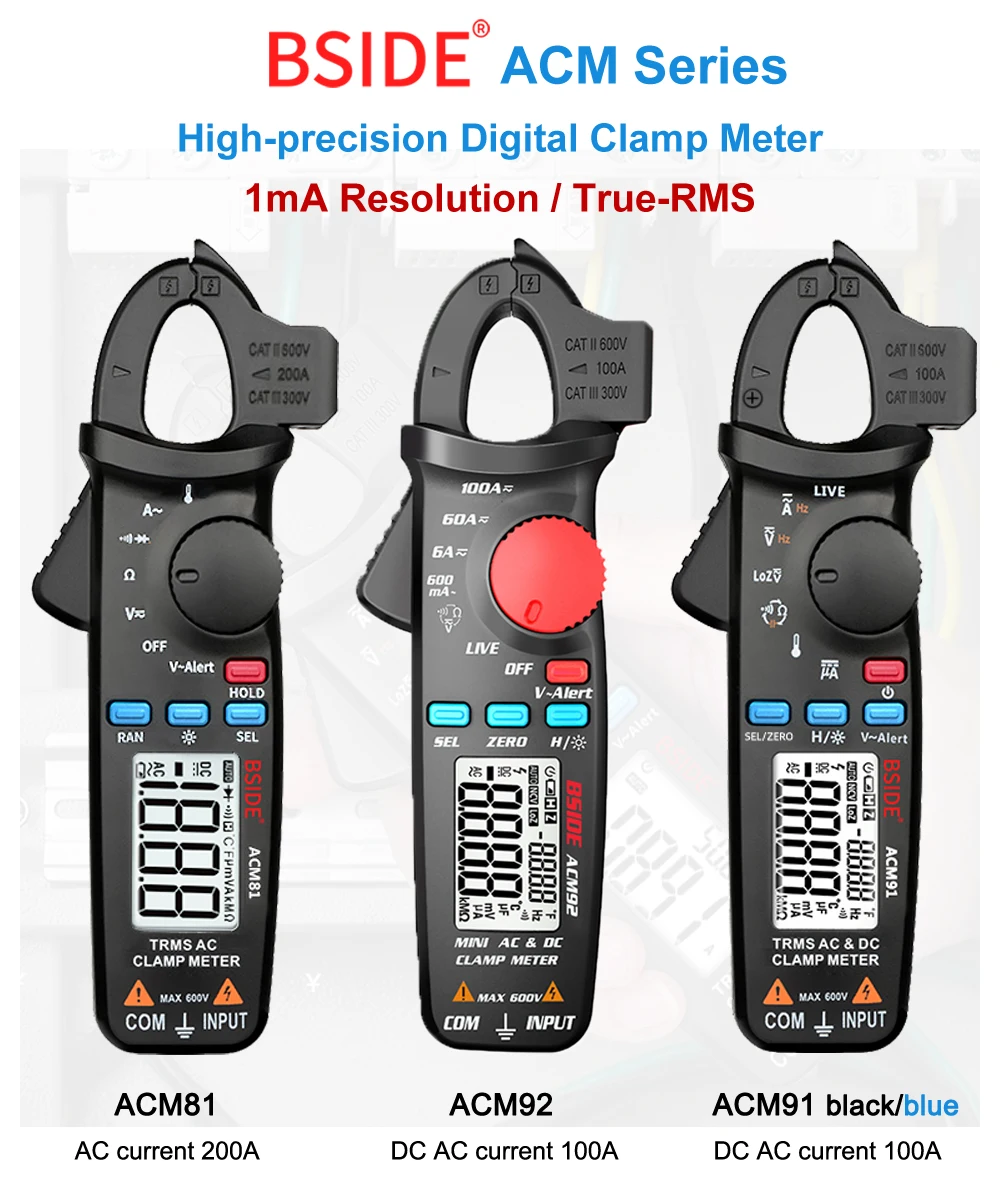

● The ACM81/92/91 series of clamp meters have True-RMS characteristics and 1 mA Resolution. Has Dual impedance test voltage. Can effectively meet the needs of professionals.
● The BSIDE series of clamp meters is equipped with different test functions. Two colors (Blue and Black). Meet the needs of different customers at a more affordable price.

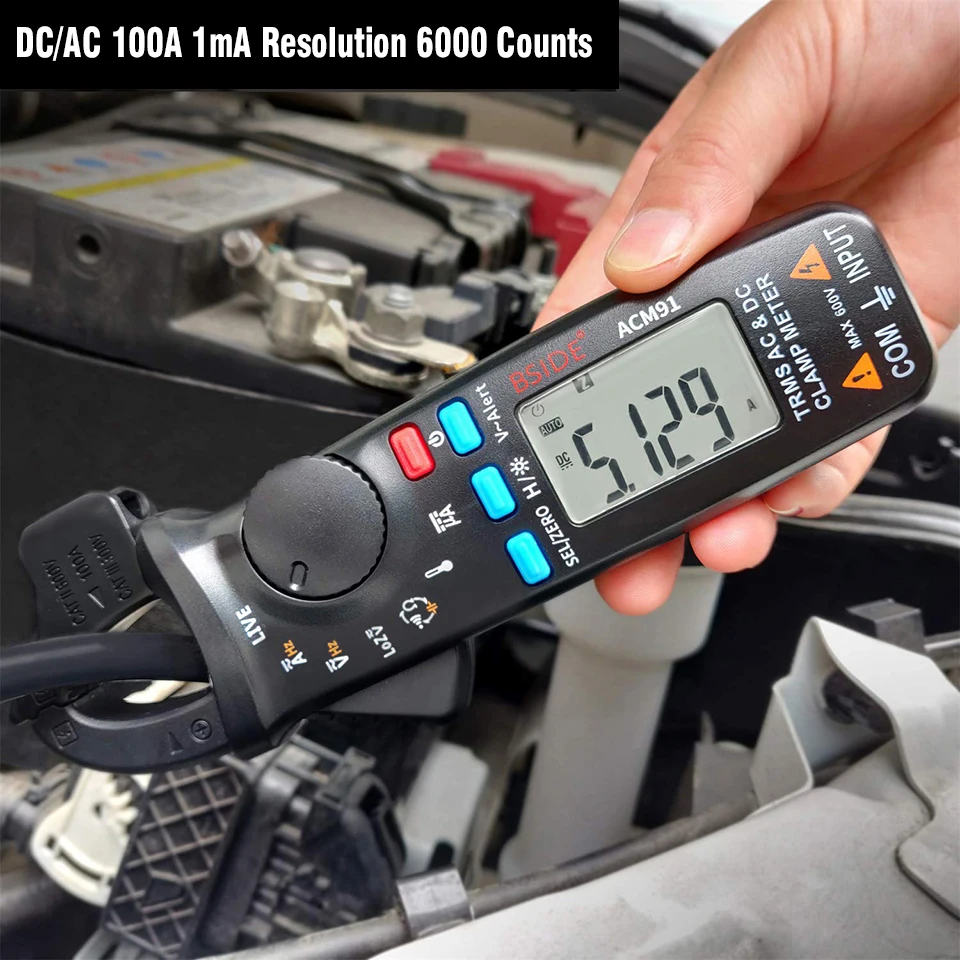

● Maximum display: 6000Counts. Compared with similar products,The ACM92/91 still has 1mA accuracy for a larger measurement range (0~6A).
● The Automatic-Range operation mode can effectively avoid burning the table, and the operation is safer and faster!
Order notice:
● ACM81 product only support testing AC current.

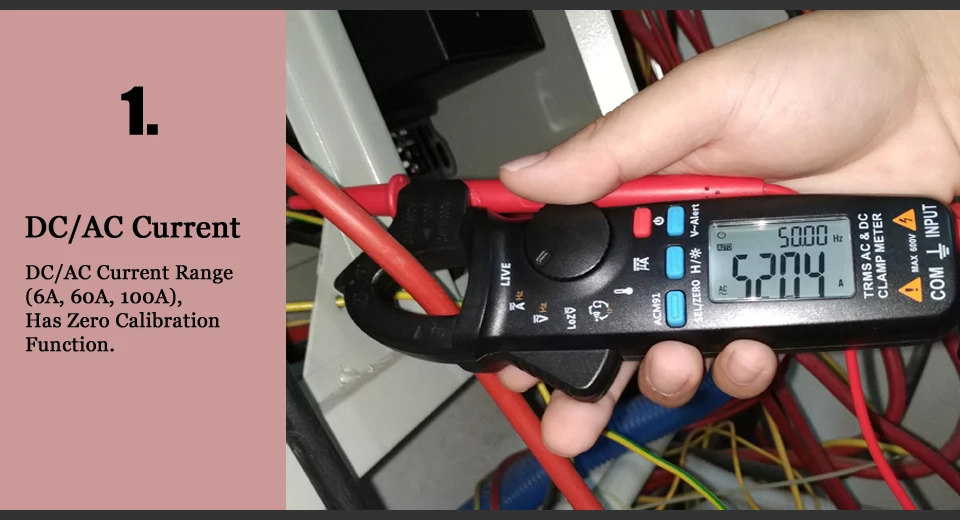

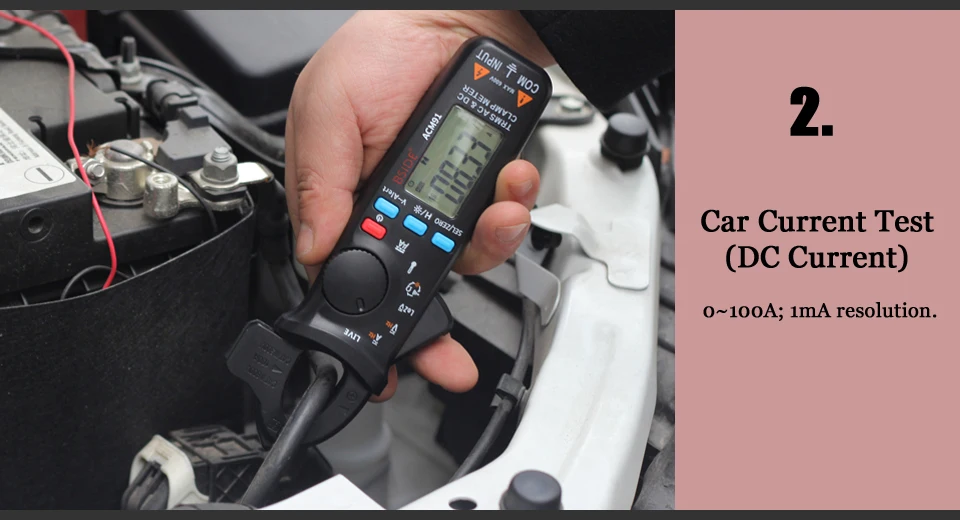

● The ACM91 and ACM92 product supports testing of DC AC current.
Thank you for your trust and evaluation!
●The BSIDE ACM series of clamp meters is equipped with different test functions. Two colors (Blue and Black).Meet the needs of different customers at a more affordable price.
More Accurate:

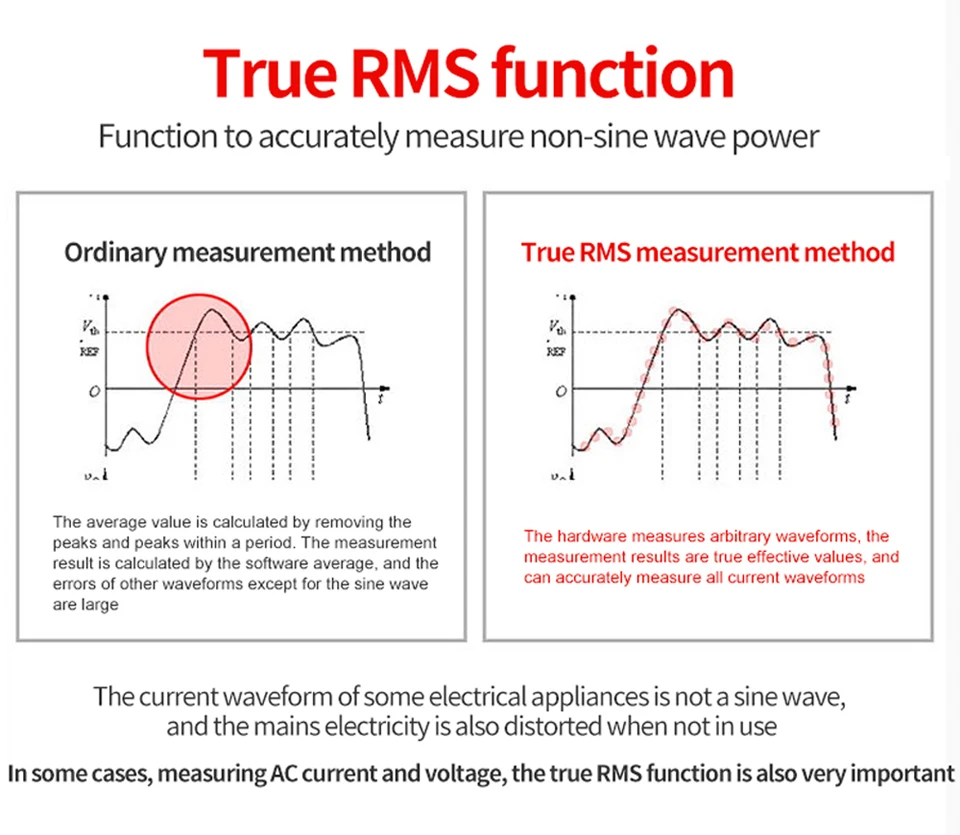

●BSIDE ACM series products have True-RMS characteristics (1mA resolution).Can effectivelymeet the needs of professionals.●Maximum display: 6000Counts.Compared with similar products,The ACM92/91 still has 1mA accuracyfor a larger measurement range(0~6A).●The ACM92/91 clamp meter has a “Zero Clear Function” (ZERO). Used before the DC current test, Caneffectively reduce the test error.●Dual impedance test voltage (Conventional voltage test and Low Impedance voltage test), It can meetthe voltage test requirements of professionals.
More Test Features:
●This series of products has DC/AC Voltage, AC Current, DC Current,Temperature, Frequency, Clamp on frequency function, Capacitance,DC microampere (minumum 0.1μA by terminals), Resistance, Diode, Continuity,Low Impedance Voltage,LIVE wire check, V-Alert( NCV ) test function, with such a small size it meets the rules of the state has made the most perfectfunctions.
More Application Scenarios:
●This product has excellent LoZ low-impedance test function and DC microampere detection function, which is very suitable for the maintenance industry.
Optimize the efficiency of the test:

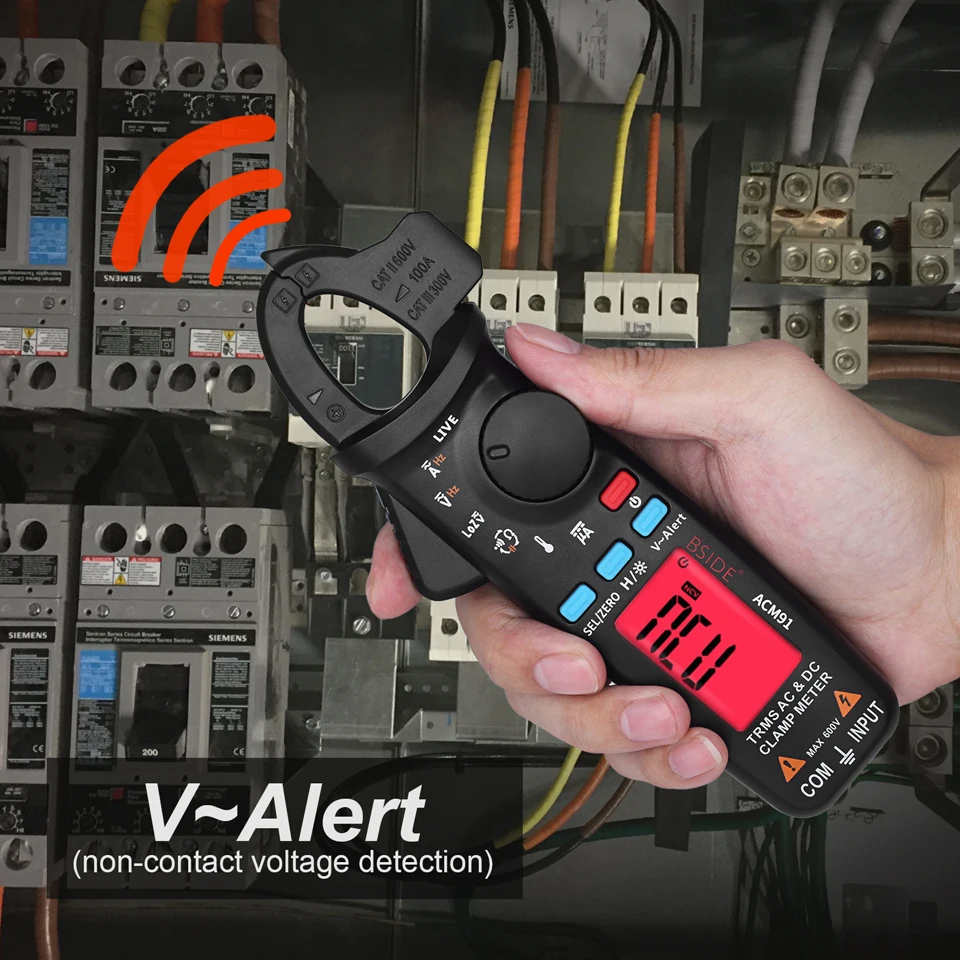

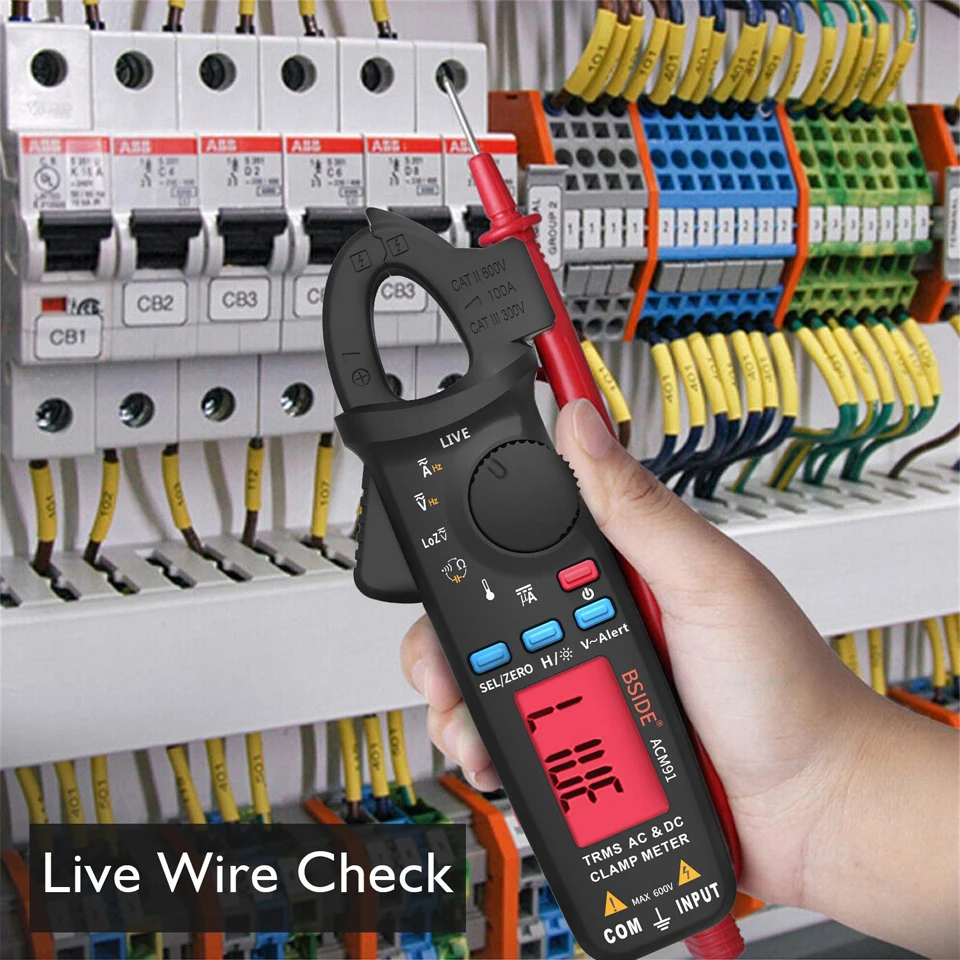

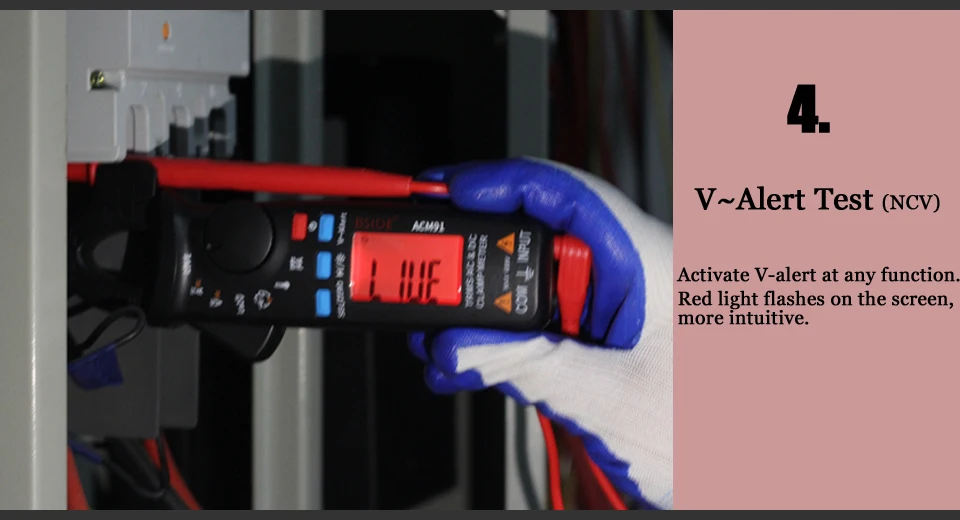

● Support one-handed switching of all test functions(complete in 1.5 seconds), making operation more convenient and quick.● LIVE wire check function and V ~ alert function conveniently quickly identify mains connection status.

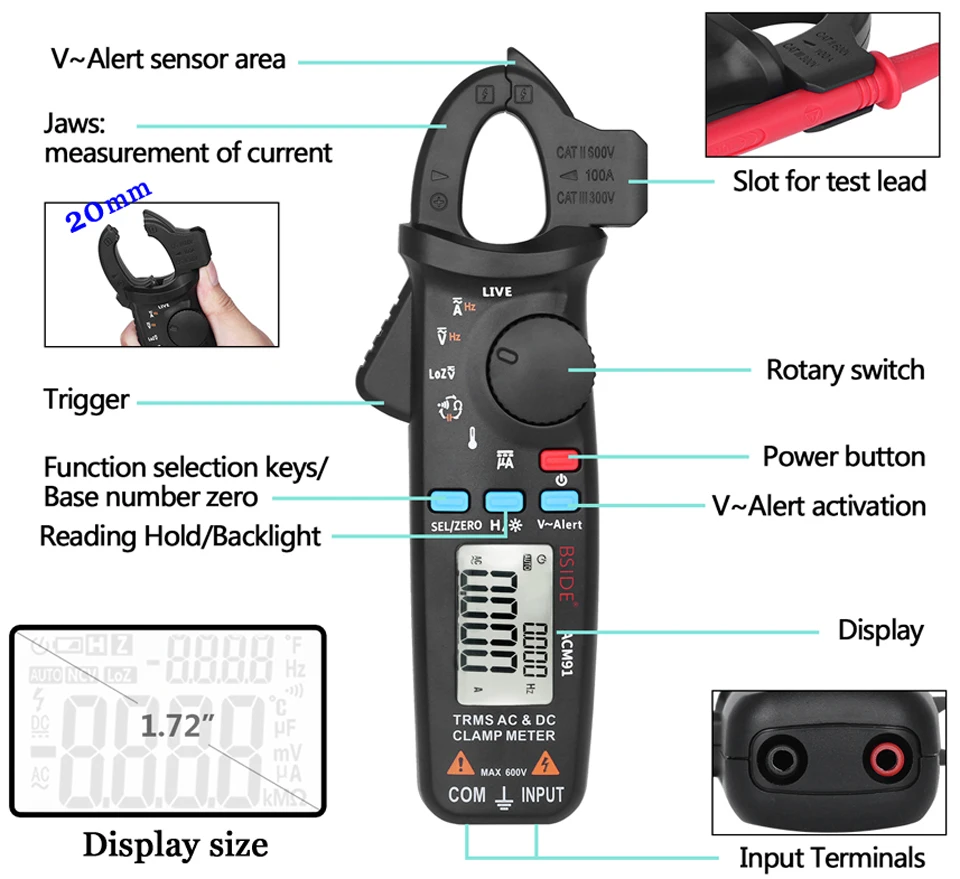

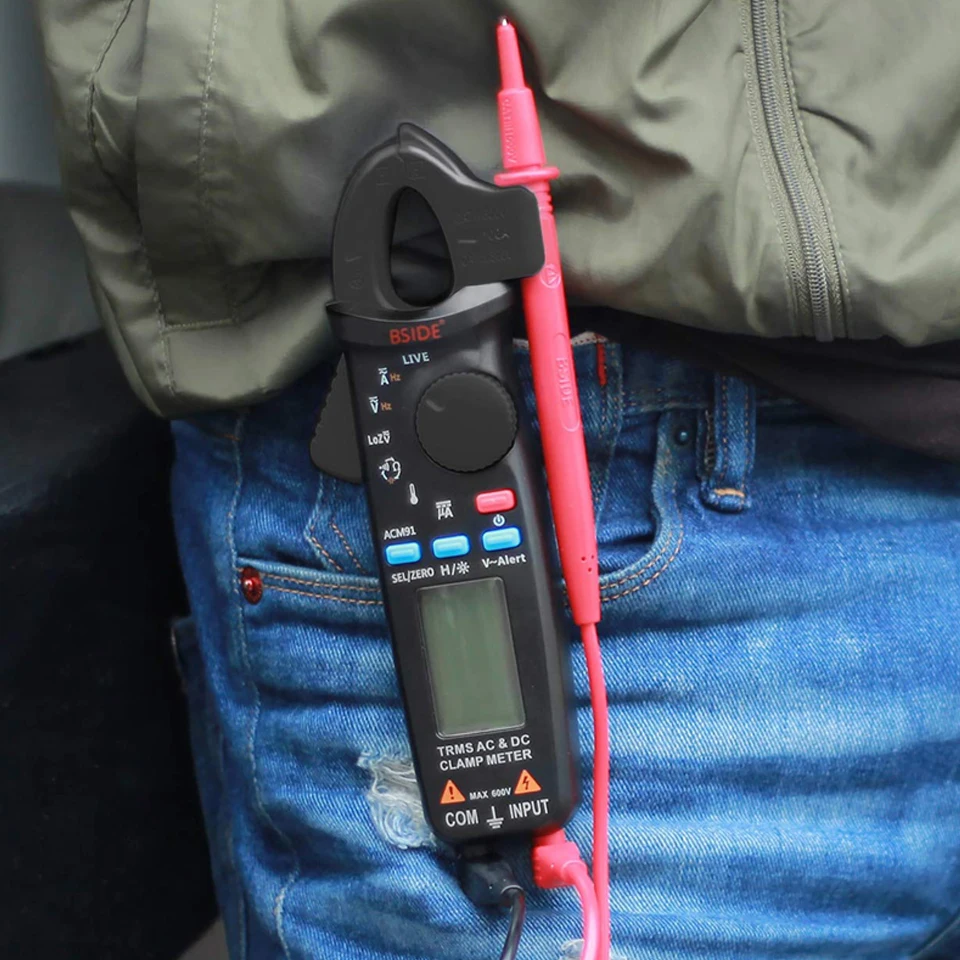

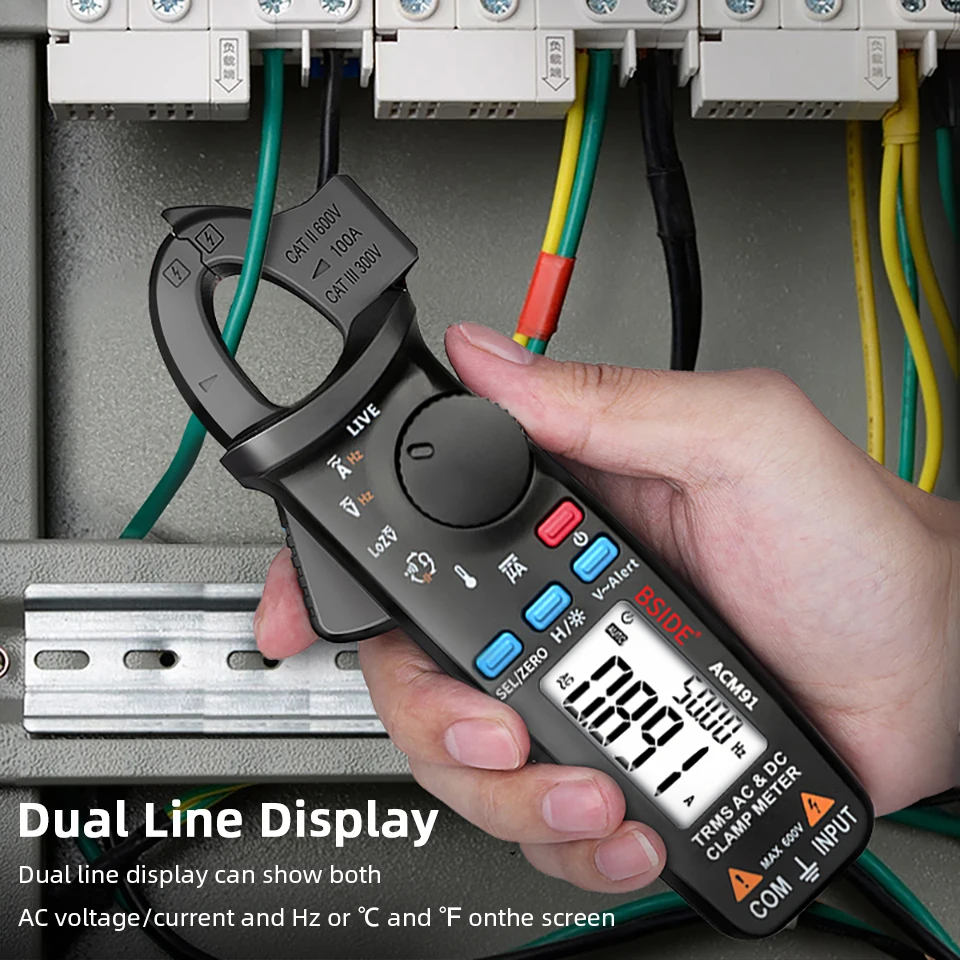

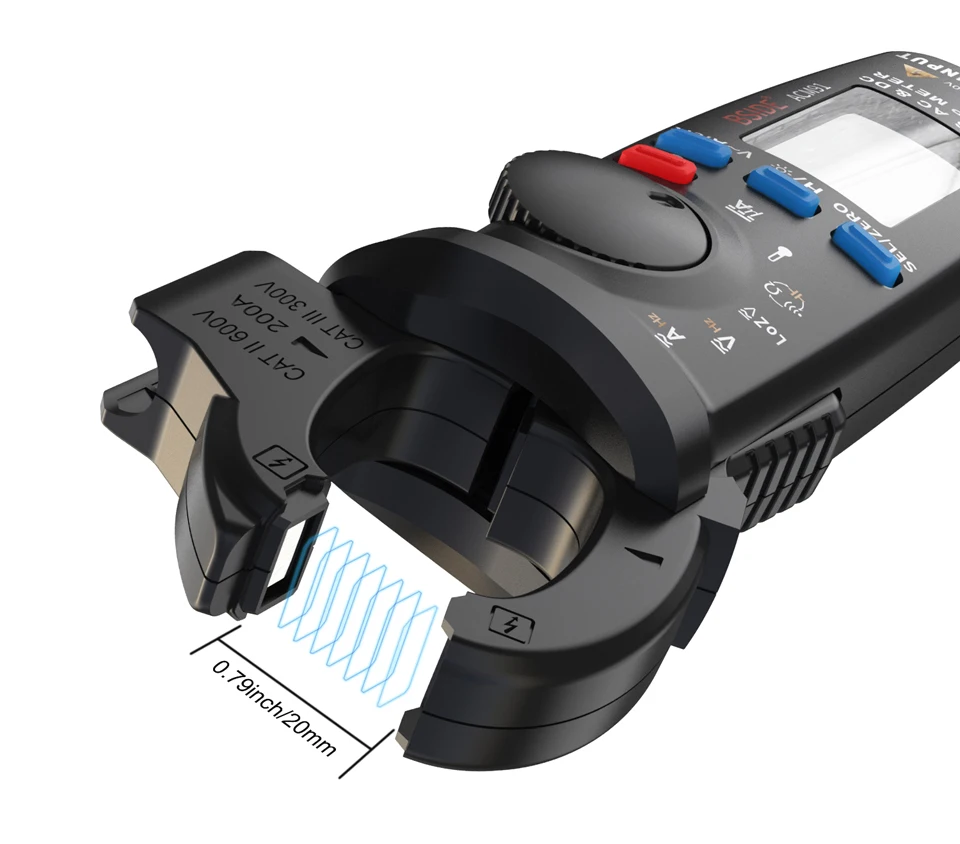

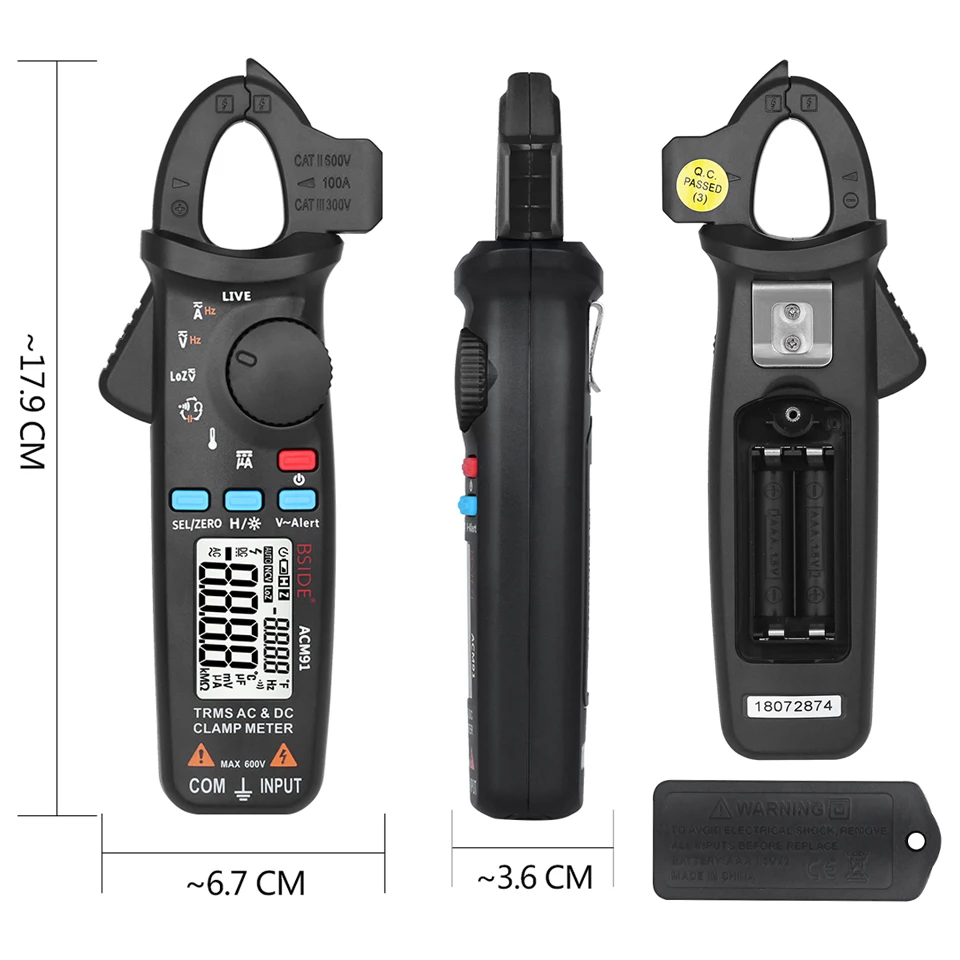

● There are two colors, Blue and Black. There is always one that you like.● Streamlined design for more comfortable operation.● LCD display(1.72 inches) with backlight for clear reading.● Has Data hold, Low battery indication functions, Auto power off features, Added back hooks.● Jaw opening size 20 mm.● The body size of the product is -17.5CM*5.5CM*3.5CM, which is more convenient to use and carry.

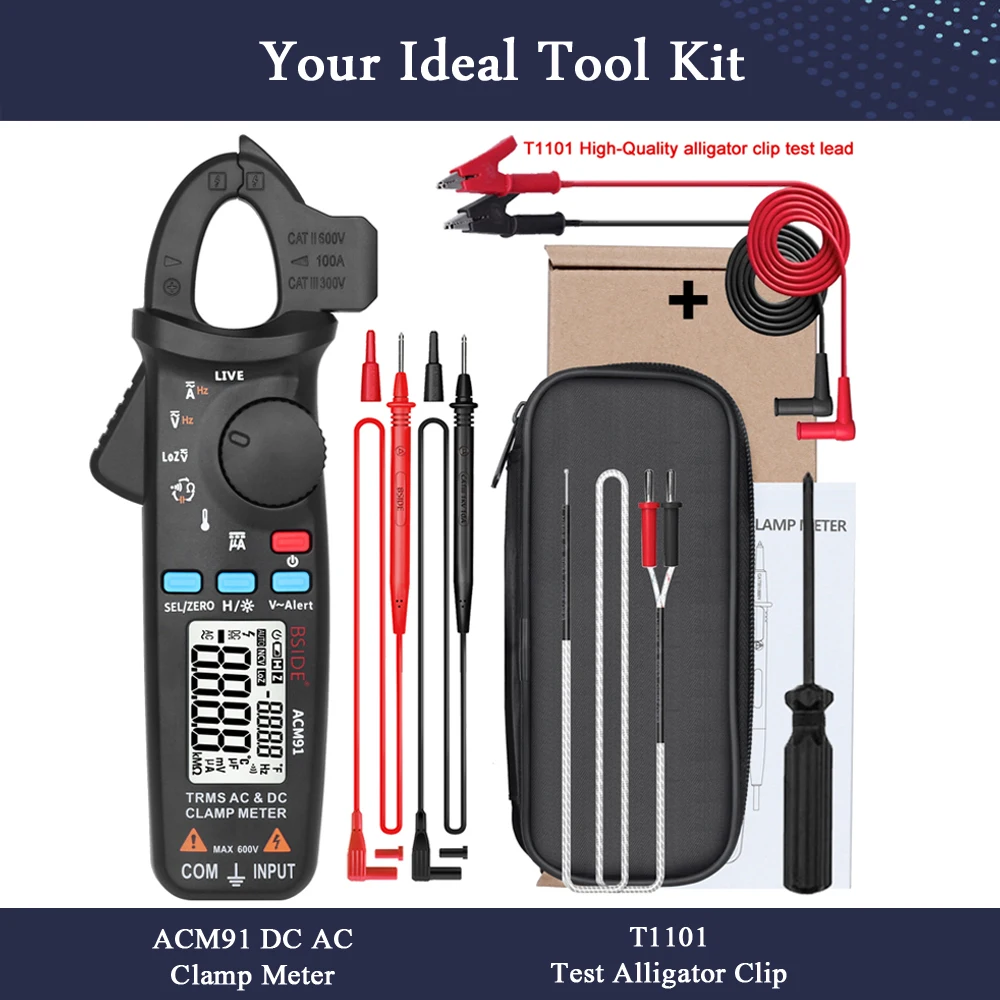

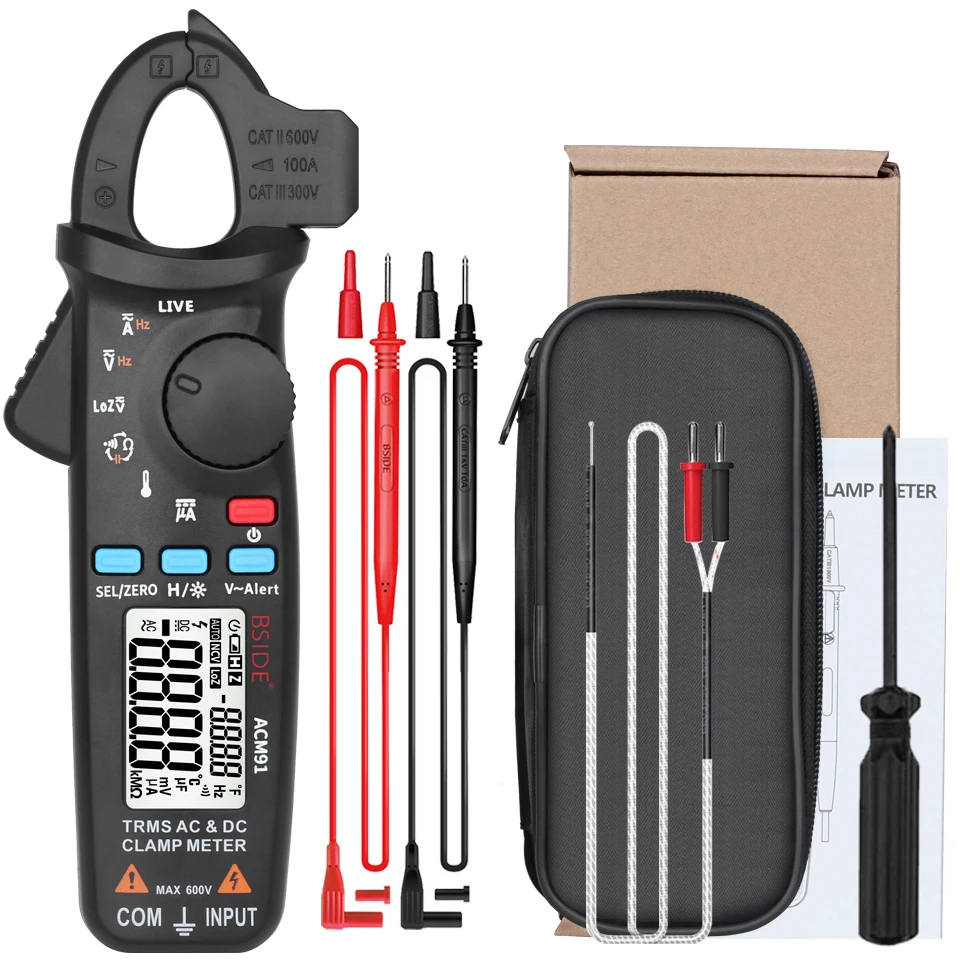

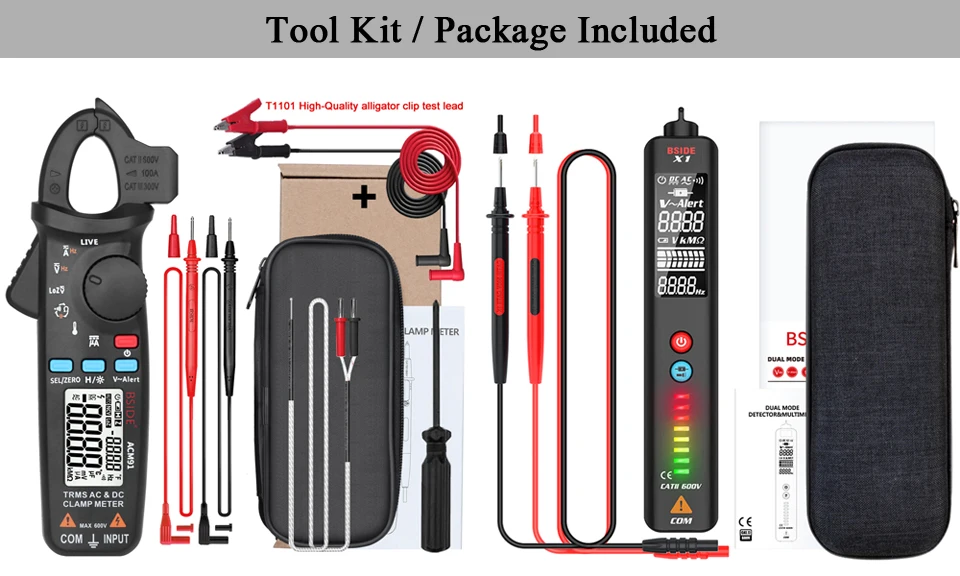

Package Includes:●1 x Digital Clamp Meter ●1 x Test Leads
●1 x Thermocouple ●1 x User Manual
●1 x Carrying Case ●1 x Gift (Screwdrive)

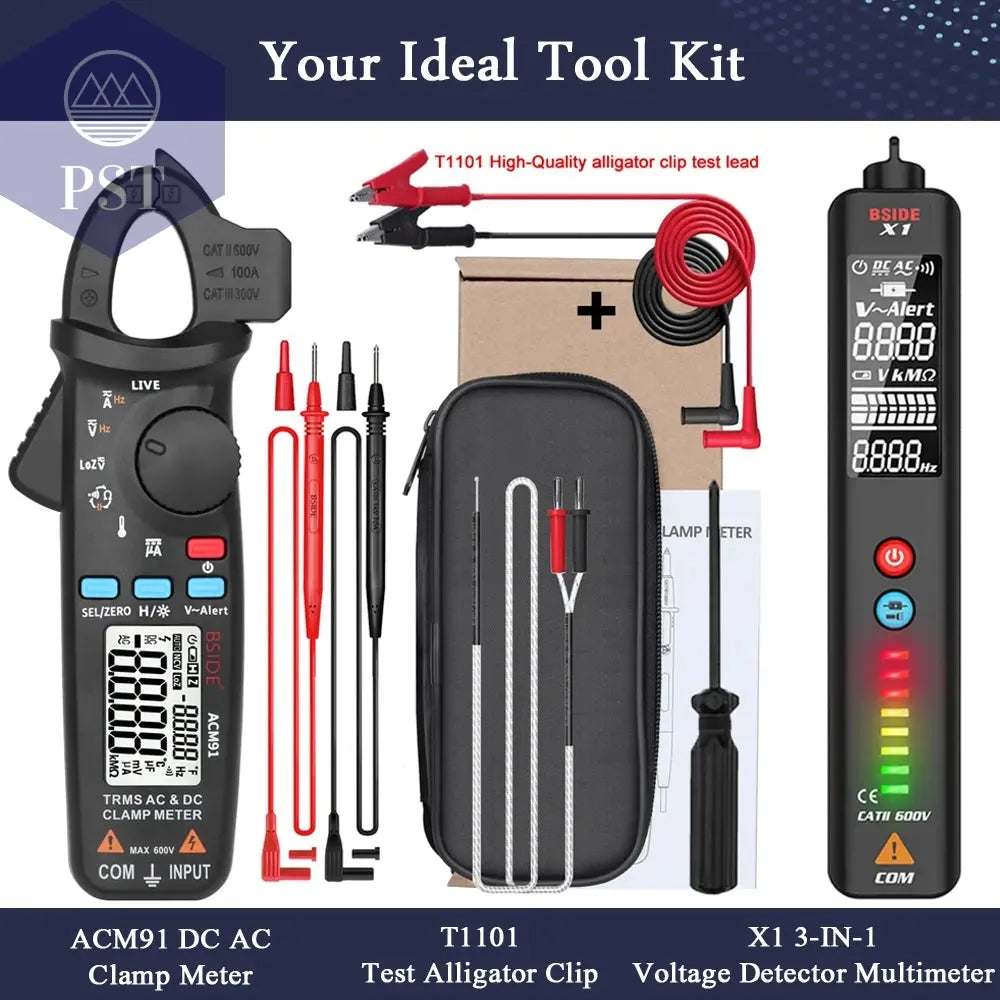

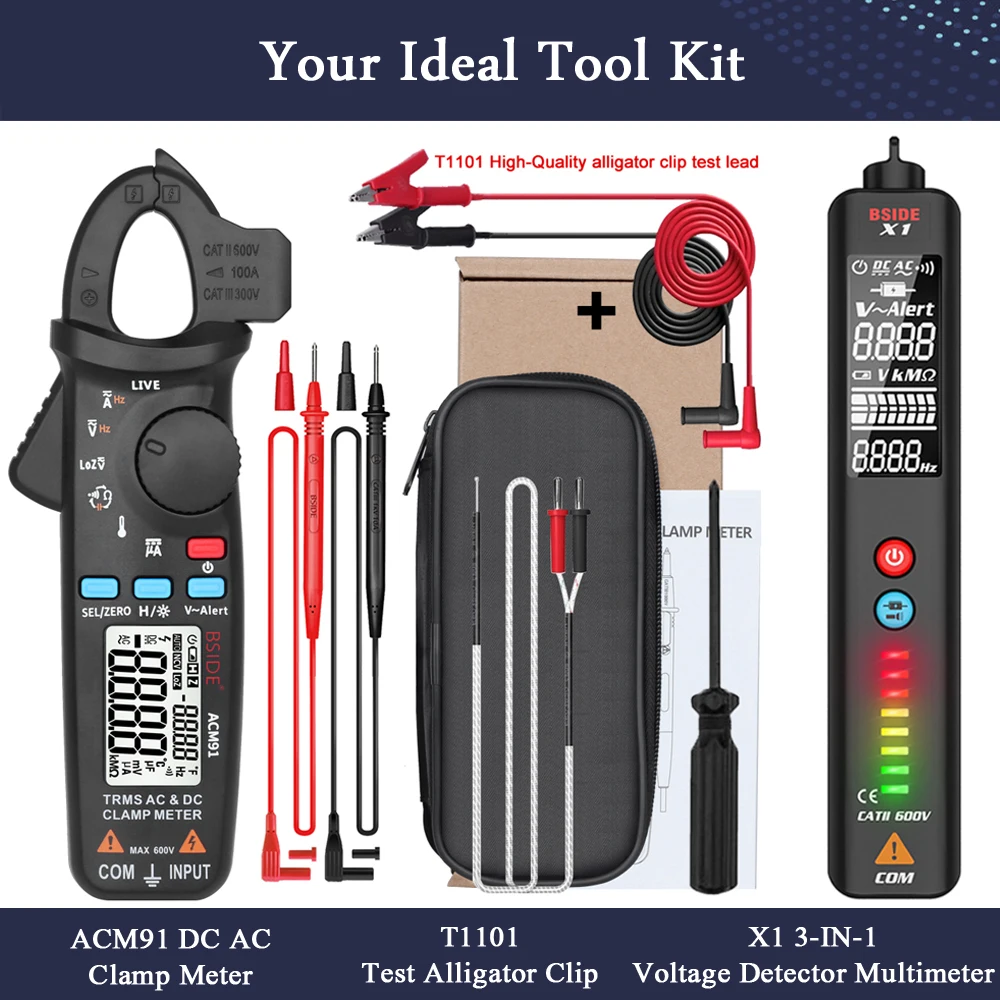

Recommended : Tool kit A.
ACM91 DC / AC current clamp meter + X1 3-IN-1 Voltage detector multimeter + T1101 crocodile head test clip.
ACM91 DC / AC current clamp meter + X1 3-IN-1 Voltage detector multimeter + T1101 crocodile head test clip.
