Power Bank Charger Type C USB Output Display Interface
Power Bank Charger Type C USB Output Display Interface
SPECIFICATIONS
Brand Name: HIDANCE
DIY Supplies: ELECTRICAL
Origin: Mainland China
Dimensions: 60*60*11mm
Operating Temperature: -10-60C

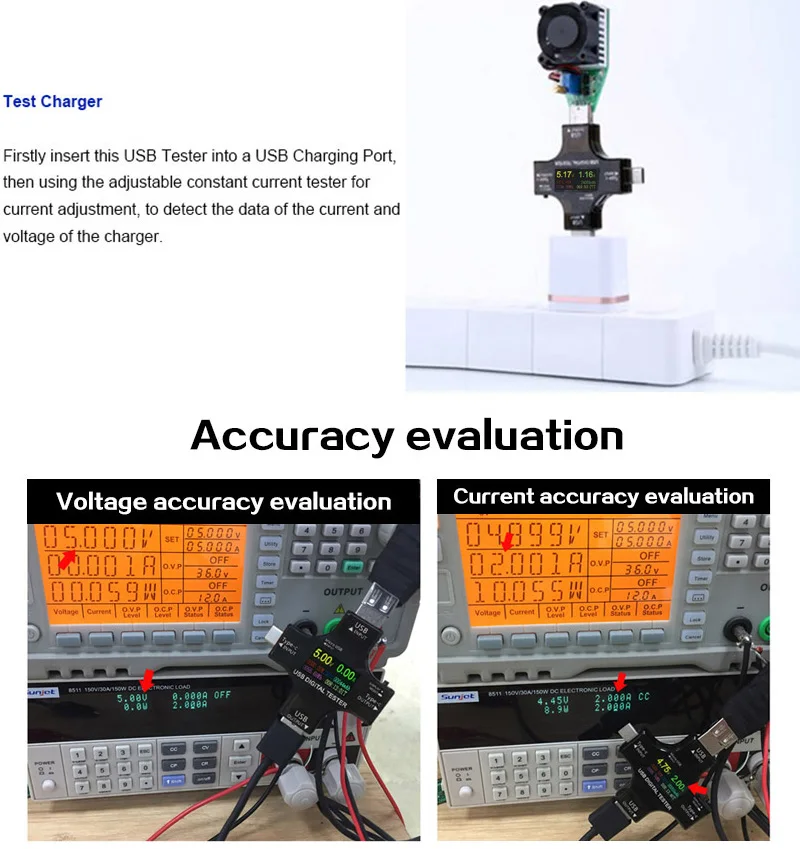

Accuracy Class: 1% (Software calibration technique)
Display Type: Analog and Digital
Power Supply: DC
Certification: CE
Model Number: J7-c
Alloy sampling technique: <2mR (Metal Manganin resistor Sampling technique)
Display type: 128X64=8192pixel Dot Matrix Display Screen
Boot screen: Display: Welcome!
Data storage type: EEPROM (3500000 autotype)
USB pin material: Pure copper metal
Display panel type: Dot matrix LCD module display
MCU chip storage: Flash memory
Shell material: Add hard PC highlights material
Protective film: 5C high transparent protective film
important Notice:

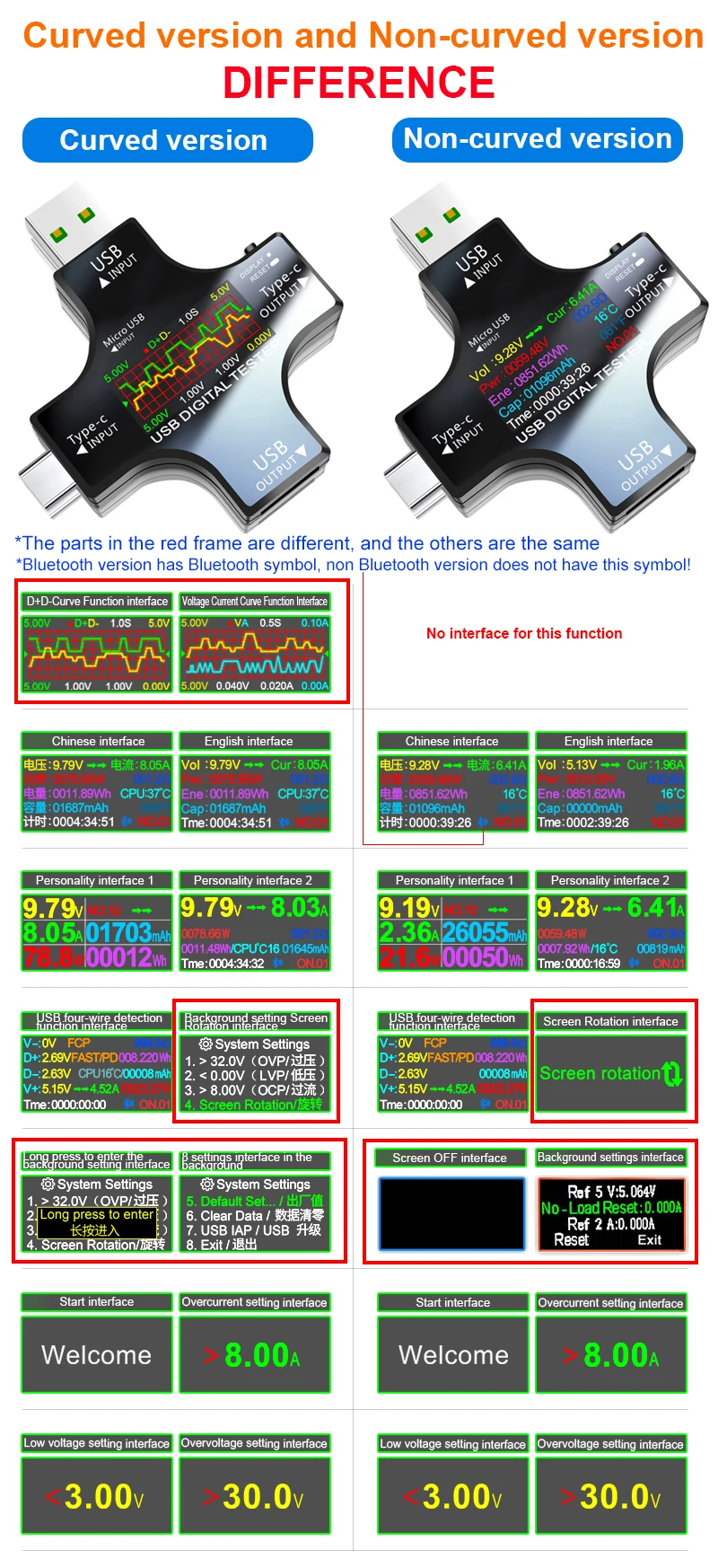

Our product is divided into curve version and non-curve version, see the product details for details

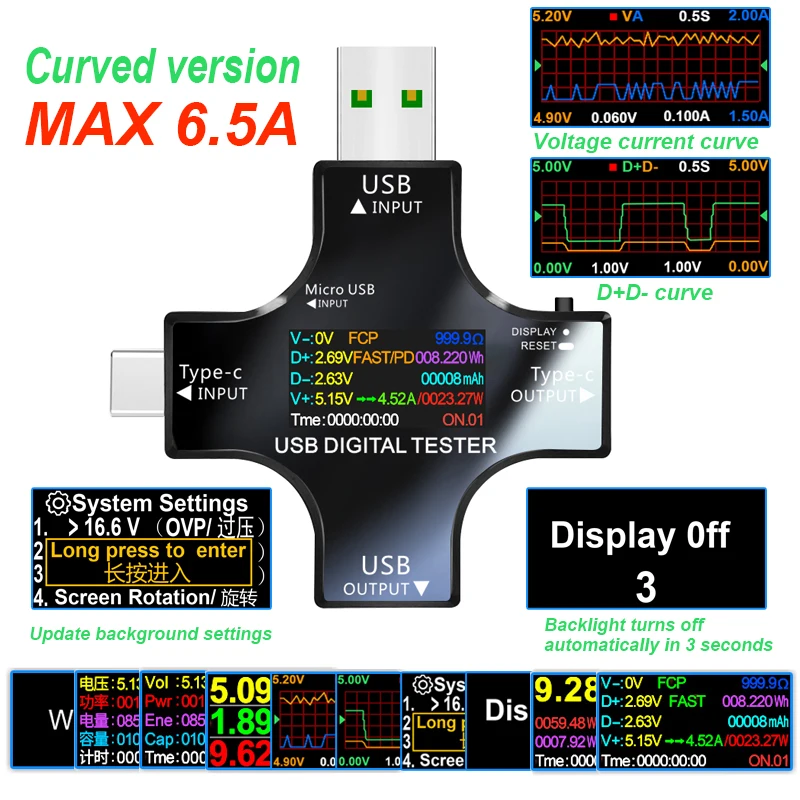

New: Curved Version sales

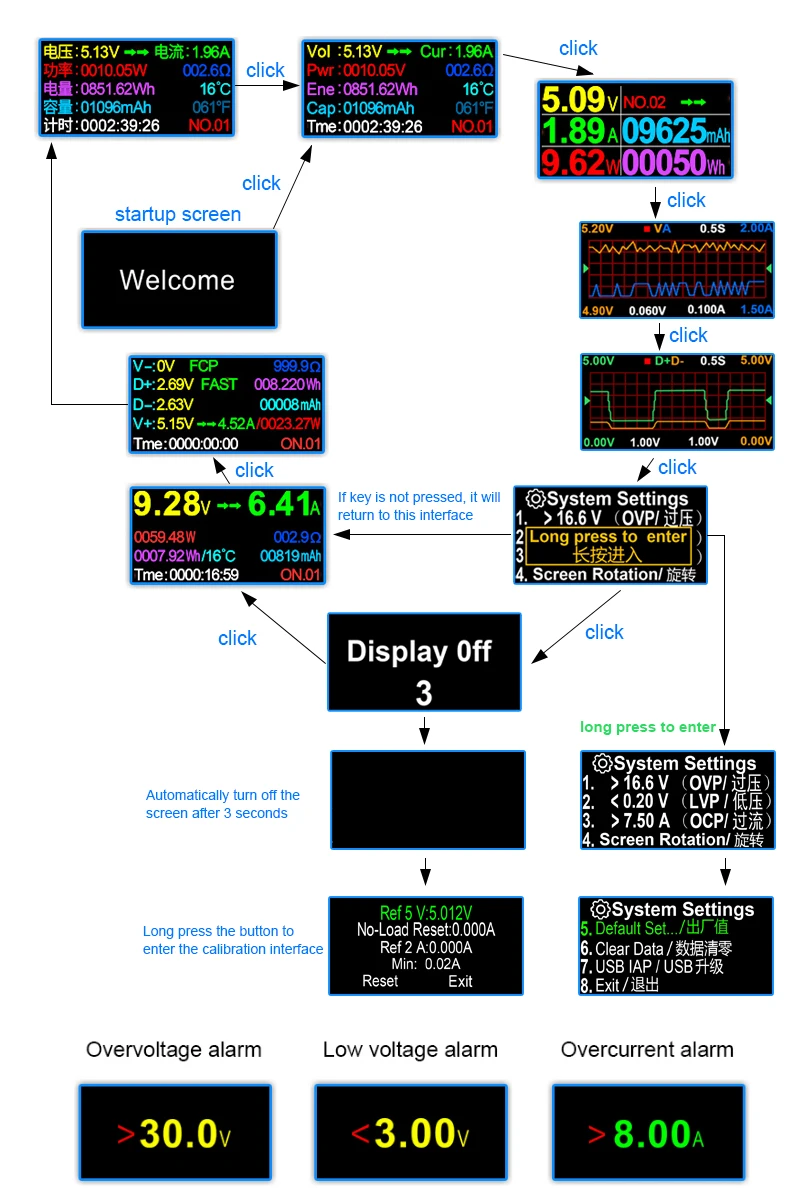

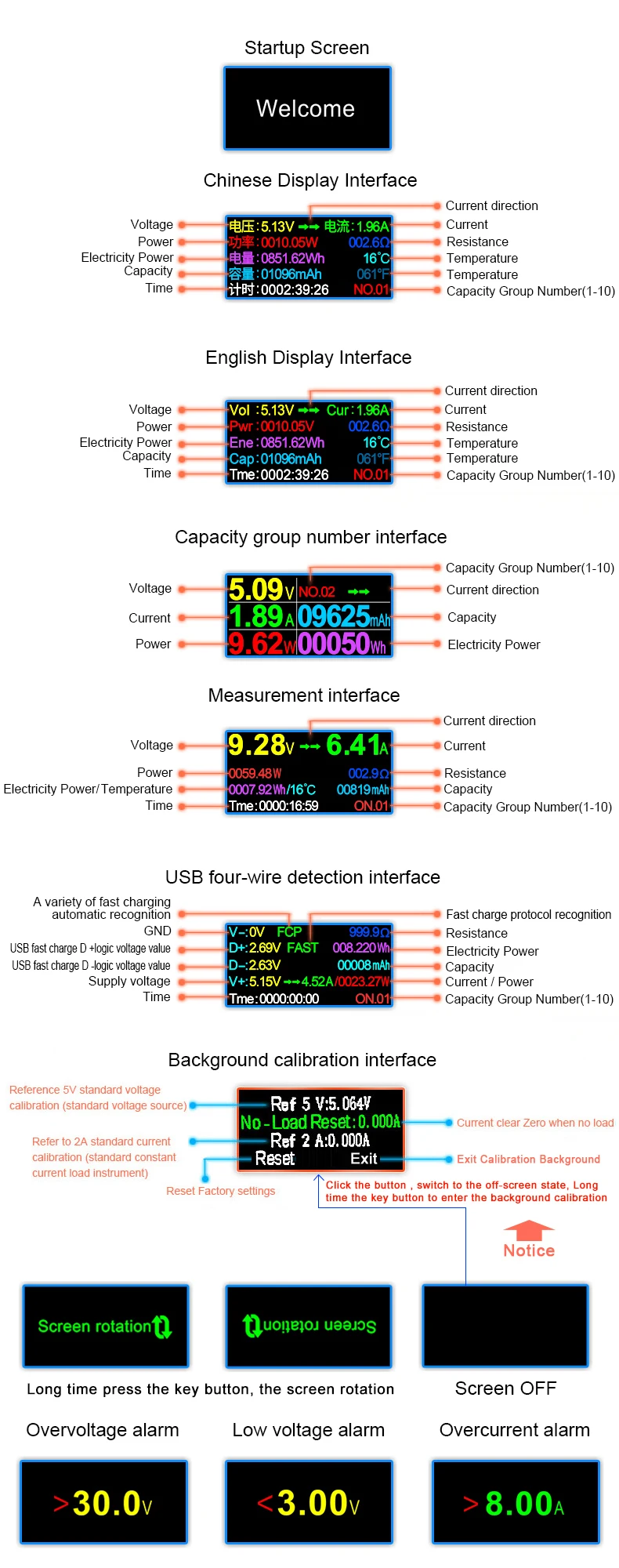

Product multi-function interface display
Key button operation instructions
1) Short press of the button is to switch the screen function
2) Quickly double-click the capacity to reset to zero (mAh)
3) Quick three-click battery reset and reset (Wh)
4) Four quick clicks are timing reset to clear the current group (00:00:00)
5) Quick five clicks are to change the cumulative data storage group number (NO.X)
6) Press and hold the button to reset the capacity, power, and time to reset the current group.
(mAh, Wh, 00:00:00)
7) When short press on the System Settings setting interface, long press the button to enter the setting, and then short press to switch the setting column, and then long press in a certain column to execute the column, when the number of the execution column jumps and flashes, double-click is an addend. Adjust, click is subtraction adjustment, long press during addition or subtraction adjustment is continuous addition or continuous subtraction, after adjusting for a while, the word OK will be displayed and the system will automatically save the value, and continue to wait for a while to automatically exit the setting interface
7.1 >32.0V (OVP/Overvoltage Protection)
7.2 <0.00V (LVP/Low Voltage Protection)
7.3 >8.00A (OPC/Overcurrent Protection)
7.4 Scrren Rotation
7.5 Default Setting
7.6 Clear Data
7.6 USB IAP/USB upgrade
7.7 Exit
8) When short press to the curve interface, long press the button to switch the refresh curve update speed 0.5S 1S 2S 5S several gears, and double-click the button quickly to stop and continue

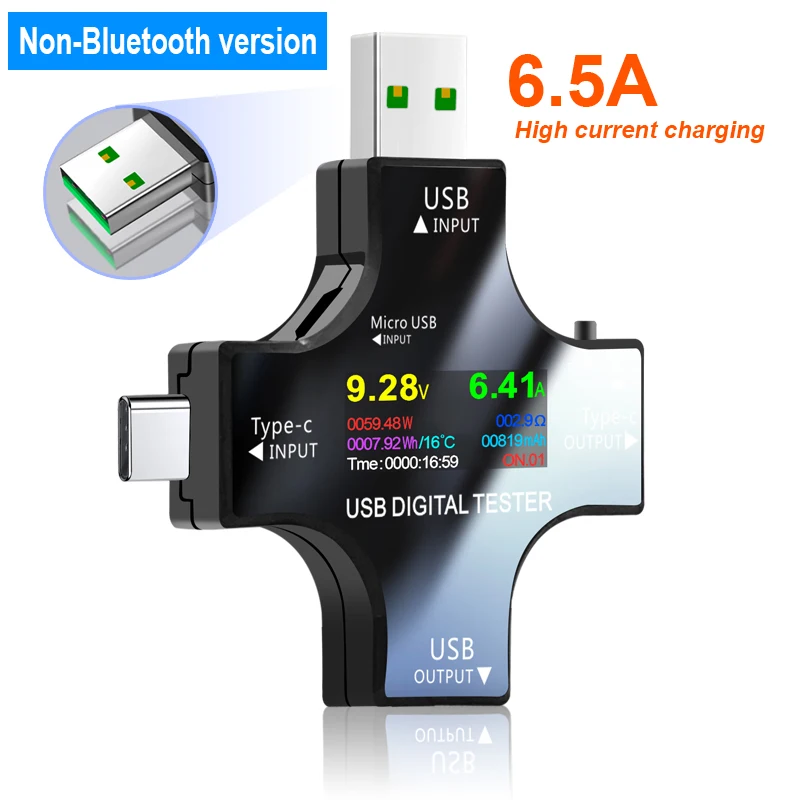

Non-curved version
Note:
This product does not include BluetoothIf you need Bluetooth products, please order another links, thank you
https://www.aliexpress.com/item/32859439118.html?spm=5261.ProductManageOnline.0.0.7d2d4edfsMLh2y
Key button operation instructions
1. Short press the button to switch the screen,
2. Quickly double-click the capacity(mAH) to clear zero ,
3. Quickly three-click the power( WH) to clear zero,
4. Fast four-click time to clear zero,
5. The quick five-click is to change the cumulative data storage group number (NO.X, 10 groups of data),
6. Long press button the capacity and power time to clear all at once,

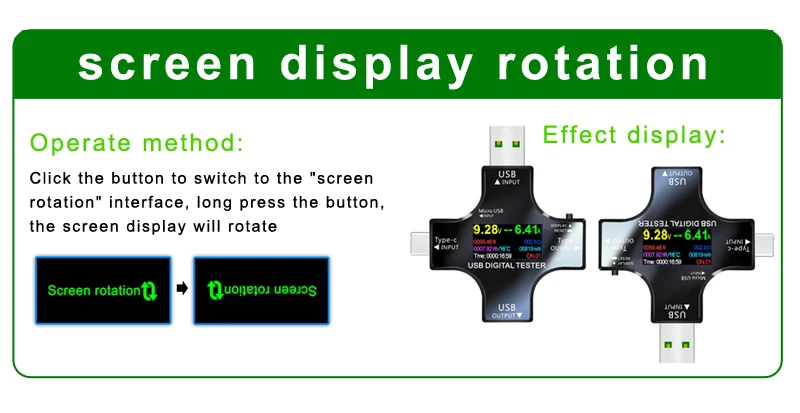

7. In the (Screen rotation) interface, long press the button to rotate the screen;
8. When the short key is pressed to the overvoltage, low pressure and overcurrent setting interface, the value can be adjusted by quickly double-clicking or quickly three-clicking.
Production Description
Voltage measuring range : 3.6V~32.0V Resolution Precision : 0.01V
Current measuring range : 0.00~5.10A Resolution Precision : 0.01A Maximum test current 6.5A
Capacity cumulative range: : 0~99999mAh Resolution Precision : 0.001Ah
Power cumulative range : 0~999999mWh Resolution Precision : 0.001Wh
Power metering range : 000.00~150.00 W Resolution Precision : 0.01W
Impedance Measuring range : 1~999.9Ω Resolution Precision : 0.1Ω
Temperature Measuring Range : 0~80℃ Resolution Precision : 1℃ Maximum
Timing Measuring range : 999Hours 59Minutes 59 Seconds Resolution Precision : 1s
USB D+ Voltage Range : 0V~2.999V Resolution Precision : 0.001V
USB D- Voltage Range : 0V~2.999V Resolution Precision : 0.001V
Time to refresh : 500mS/ times
Measurement rate : 0.5 times/s
Alarm Mode : Display Hints
Product size : 61mm x 68mm x 10.8mm
Self-consumable flow : <0.02A
Working temperature : -10~+60℃
Working humidity: : 10~80(no doubt)
Pressure of work : 80~106kPa
Certificate: RoHS, CE
Product Details:

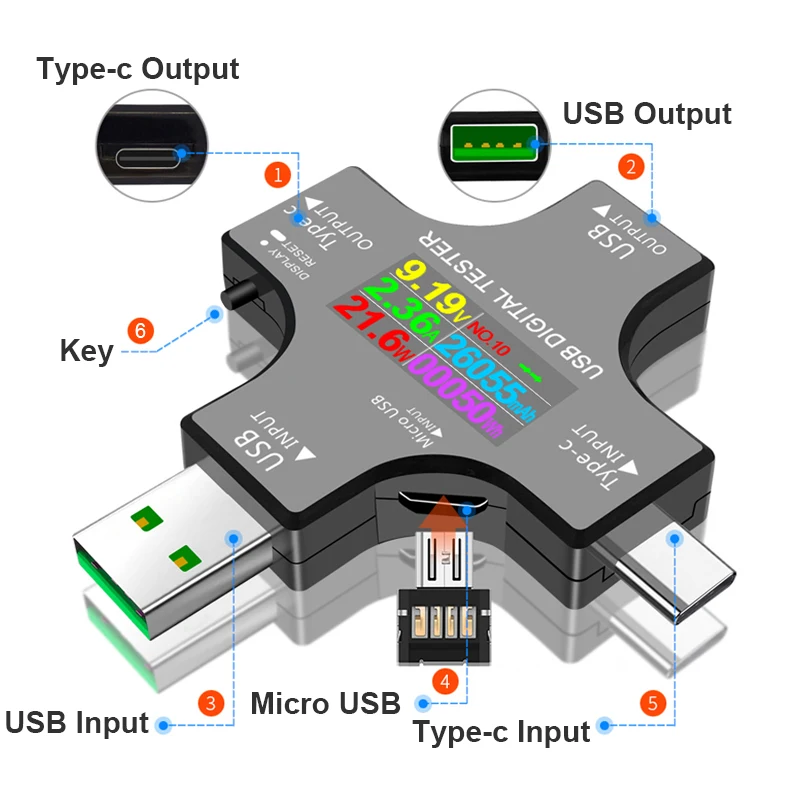

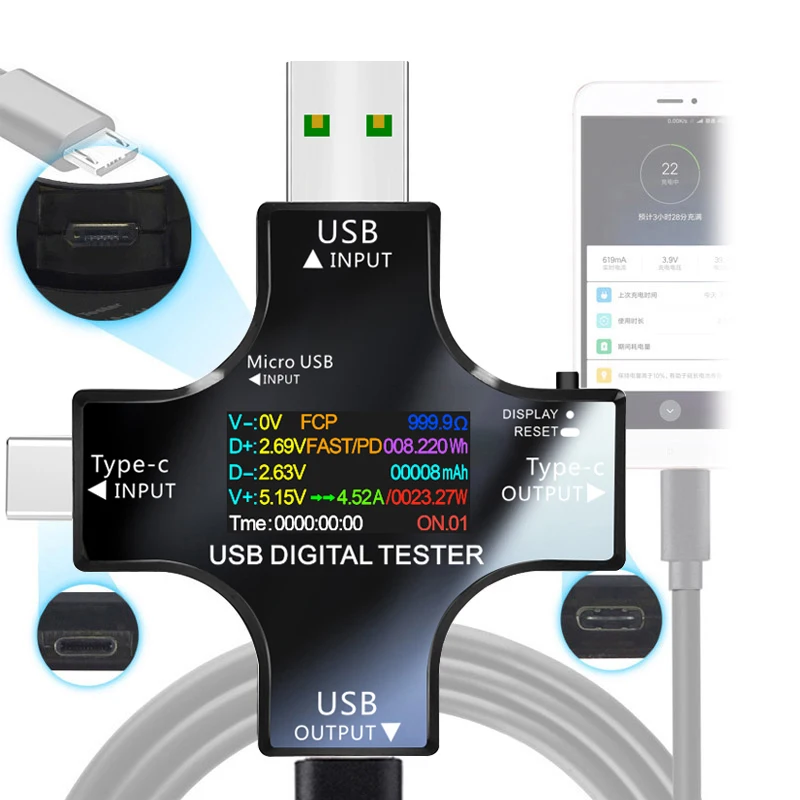

Input Interface: Type-C / Micro USB / USB
Output interface: Type-C / USB
Timed charge reminder settings: 24-hour countdown
Full charge threshold parameters: < 2 W / 0.5 hours
Refresh time: > 500mS / time
Measurement rate: about 0.5 time / S
Alarm mode: siren sound and display prompt (double warning)
Display type: micro-power LCD module LCM white font in English display
Product dimensions: 60 x 60 x 11 mm
Current consumption: < 0.02 A
Operating temperature: -10 to +60 °C
Working humidity: 10 to 80 (no doubt)
Work oppression: 80 - 106 Kpa
FAQ
Patent certificate

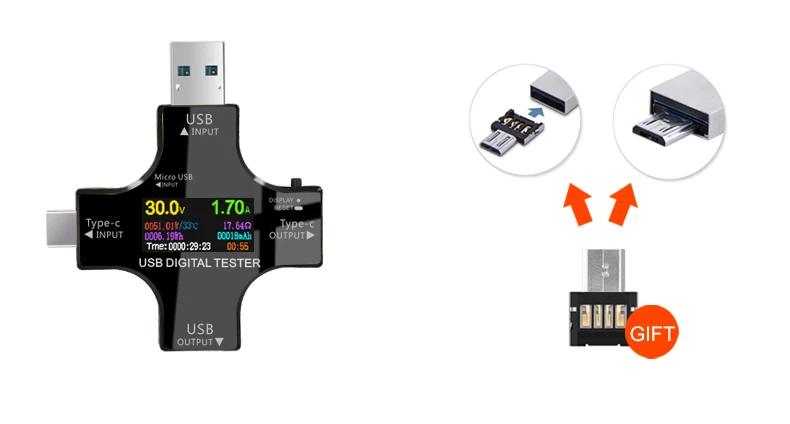

Product packaging
1.USB Type-C multi-interface color tester X1pcs

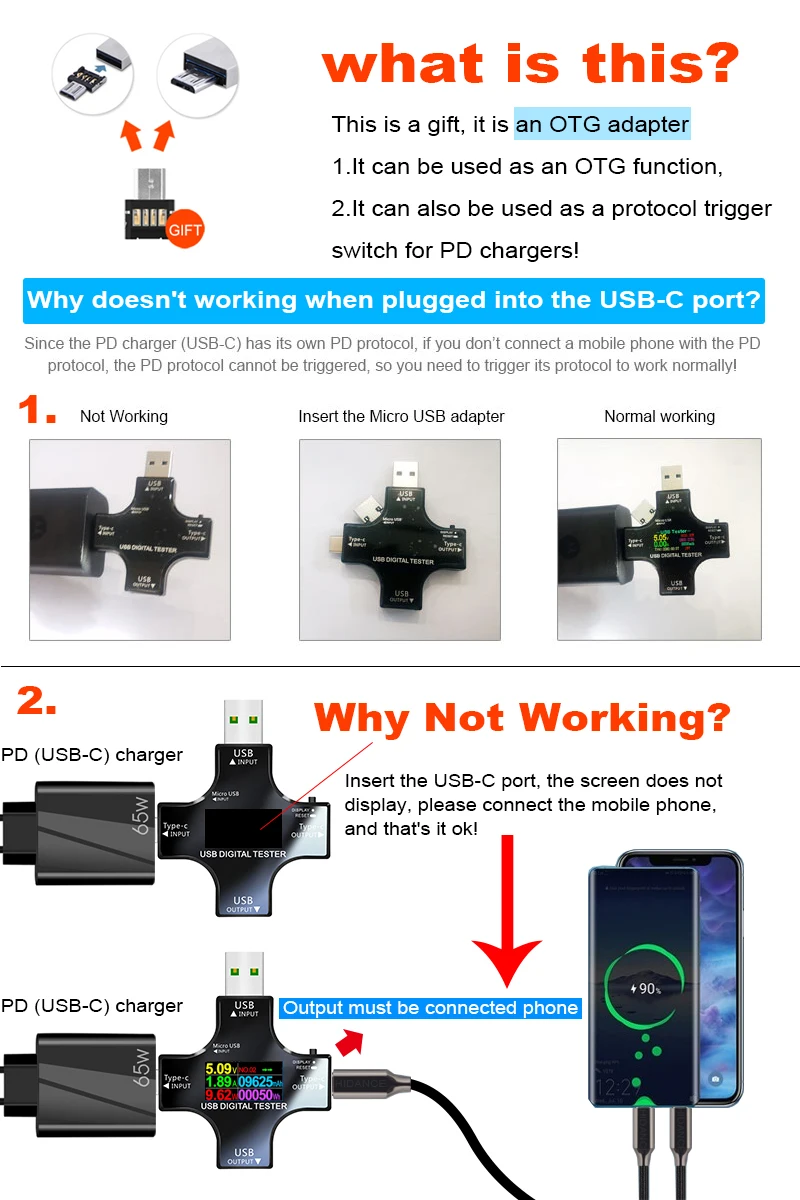

2.Micro USB adapter X1pcs
3.User Manual X1pcs
4.Packing box X1pcs
