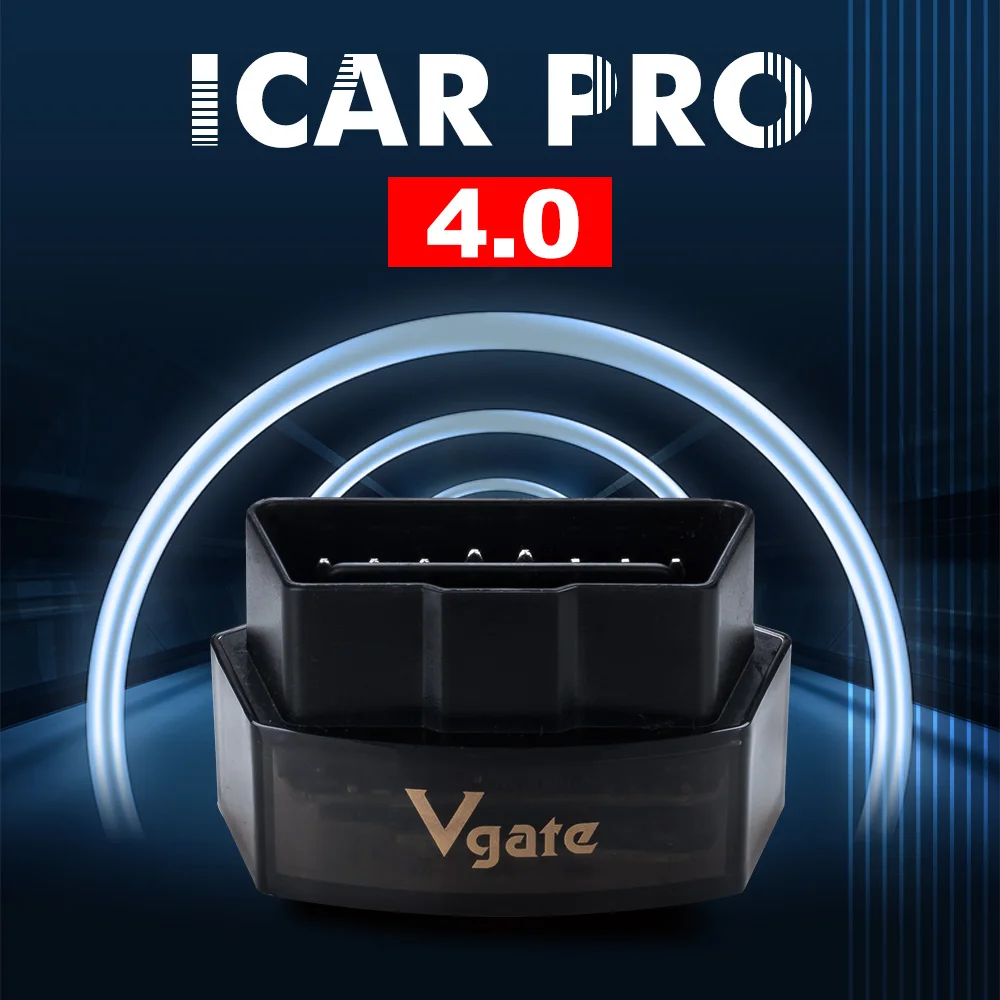

Vgate Vlinker MC iCar Pro Bluetooth-compatible 4.0/WIFI OBD2 Scanner For Android/IOS as icar2 ELM327 Auto Code Reader OBDII Tool
Vgate Vlinker MC iCar Pro Bluetooth-compatible 4.0/WIFI OBD2 Scanner For Android/IOS as icar2 ELM327 Auto Code Reader OBDII Tool
Vgate Vlinker MC iCar Pro Bluetooth
SPECIFICATIONS
Vgate Vlinker MC iCar Pro Bluetooth
Origin: Mainland China
Hardware Version: Newest
Special Features: Bluetooth
Software Version: V2.1
Item Type: Code Readers & Scan Tools
Certification: CE
Language: Russian
Language: English
Software Update: Yes
Version:: V2.1
Performance: Stable and Reliable
Support System: Android V4.1-4.4 / Windows 7 / XP only
Delivery Time: 1 day
Place of Origin: Guangdong, China (Mainland)
Price: Factory price
Notice

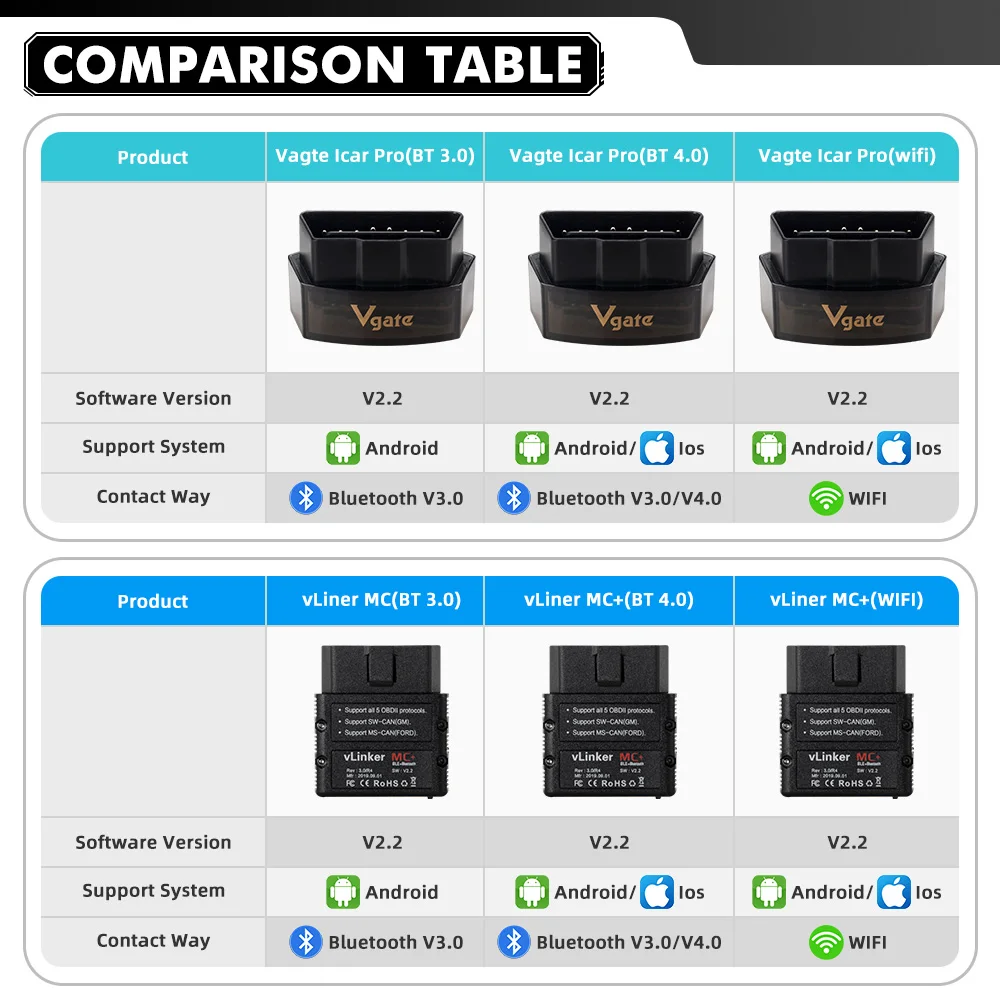

How to choose ?
Type 1-3 :Vgate icar pro
Type 4-6:New arrival vLink MC
Vgate iCar Pro Bluetooth-compatible 4.0/WIFI OBD2 Scanner For Android/IOS
Please note:
According to your needs to choose Bt3.0/BT4.0/WIFI(Do not choose wrong version)
Purchase Notes：
1.iCar Pro's firmware version has been updated to ELM327 V2.2 for all market in the world，V2.2 adds more instructions to read more data and vehicles
2.Our store sells the original iCar pro，We have software to test if is original iCar pro, if you need you can contact us，Avoid getting fake iCar pro from other stores
3.If you use BT 4.0 to Connected, please connect Bluetooth-compatible directly in the diagnostic APP

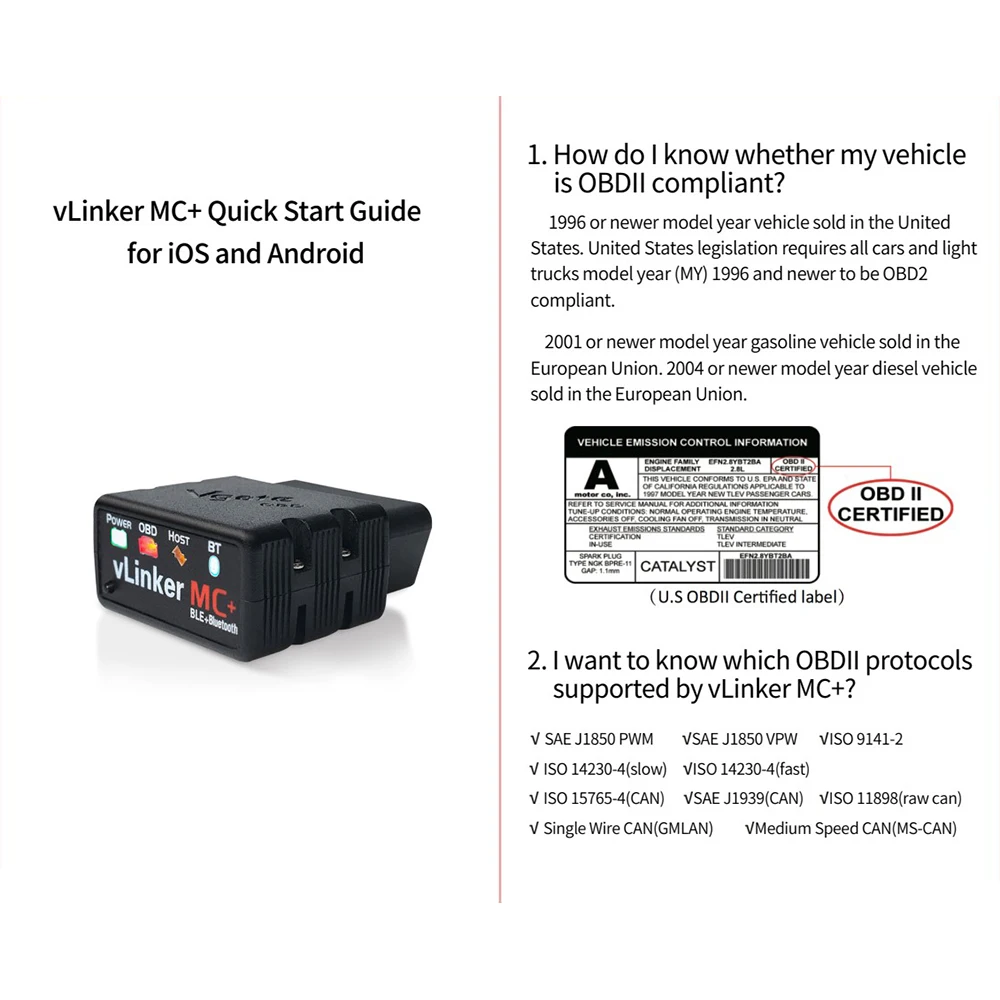

Vehicle Coverage:
Works on all OBD2 Vehicles (1996 onwards in USA)
and EOBD vehicles (Petrol cars from 2001 and diesel cars from 2003/2004 in Europe)

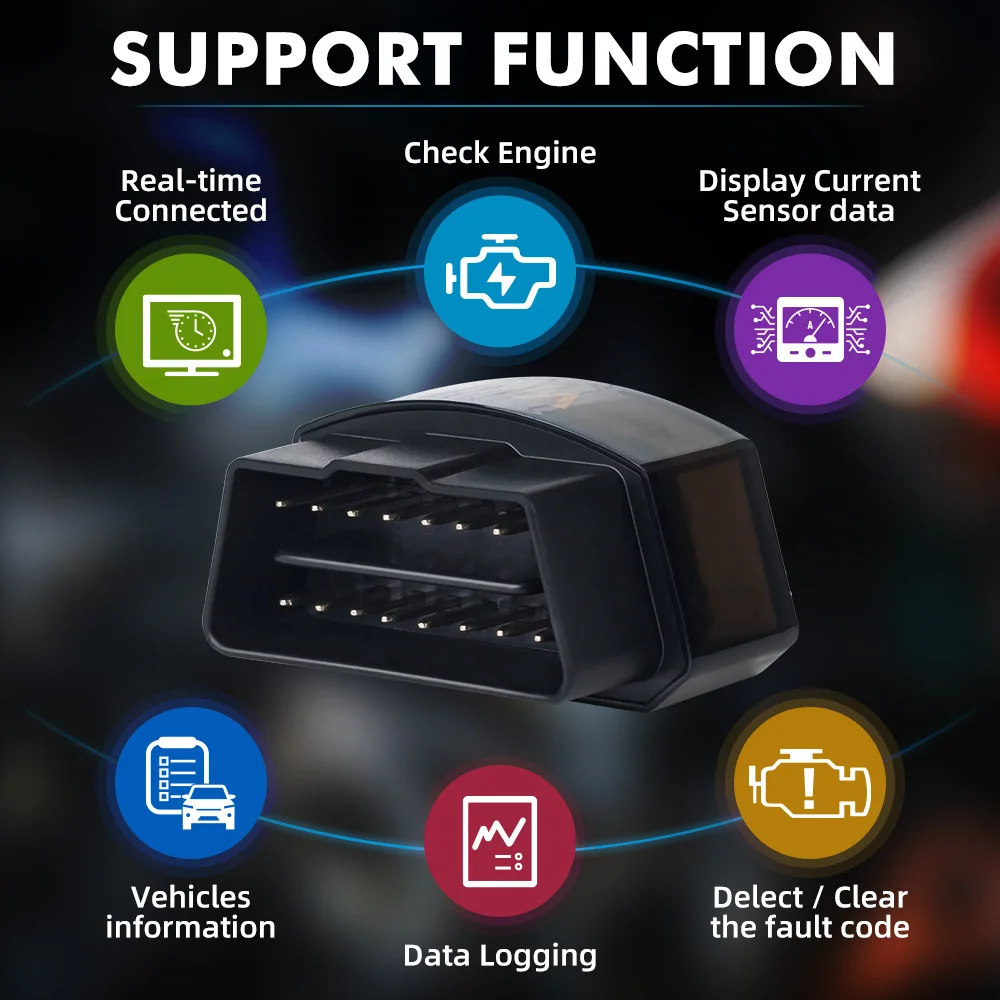

Icar pro function :
Check Engine
Data Logging
Delect / Clear the fault code
Real-time Connected
Display Current Sensor data
Vehicles information
Vgate iCar Pro Features:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning. (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL ("Check Engine" light)
Engine RPM
Calculated Load Valu
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure
Many othershellip

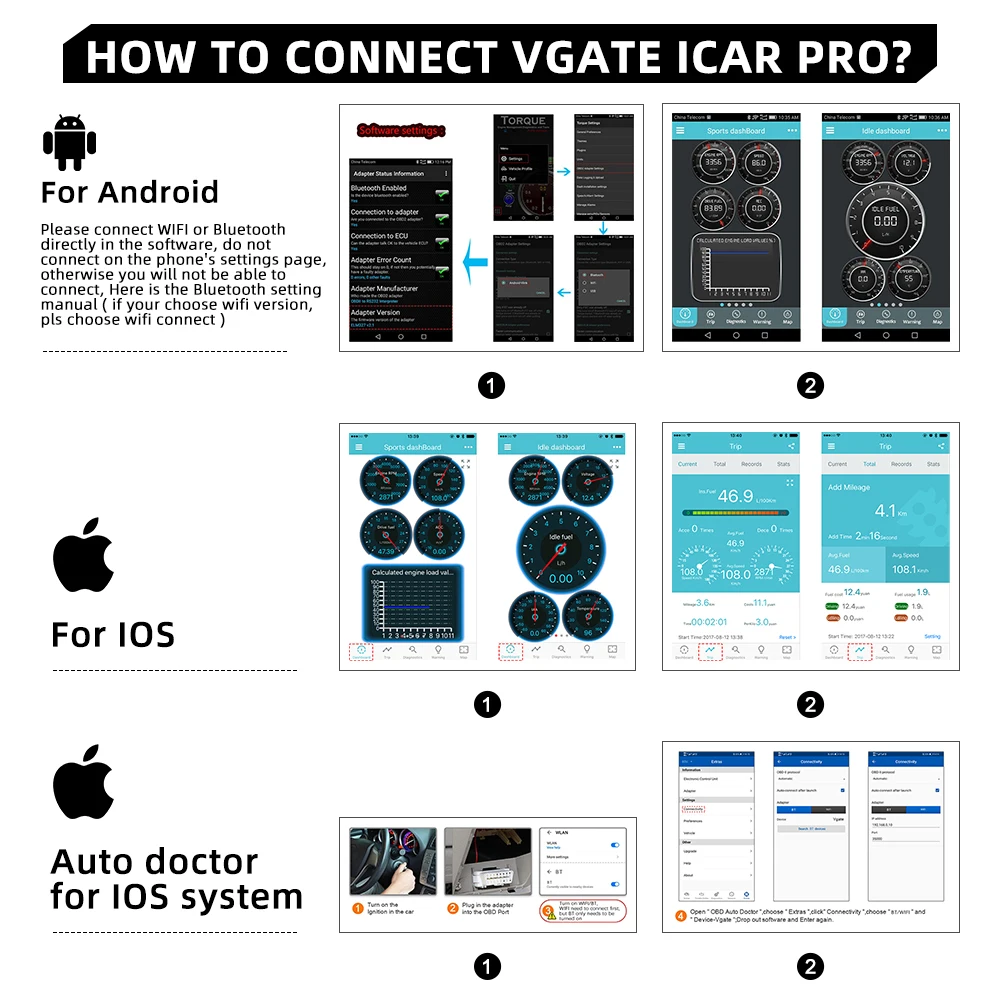

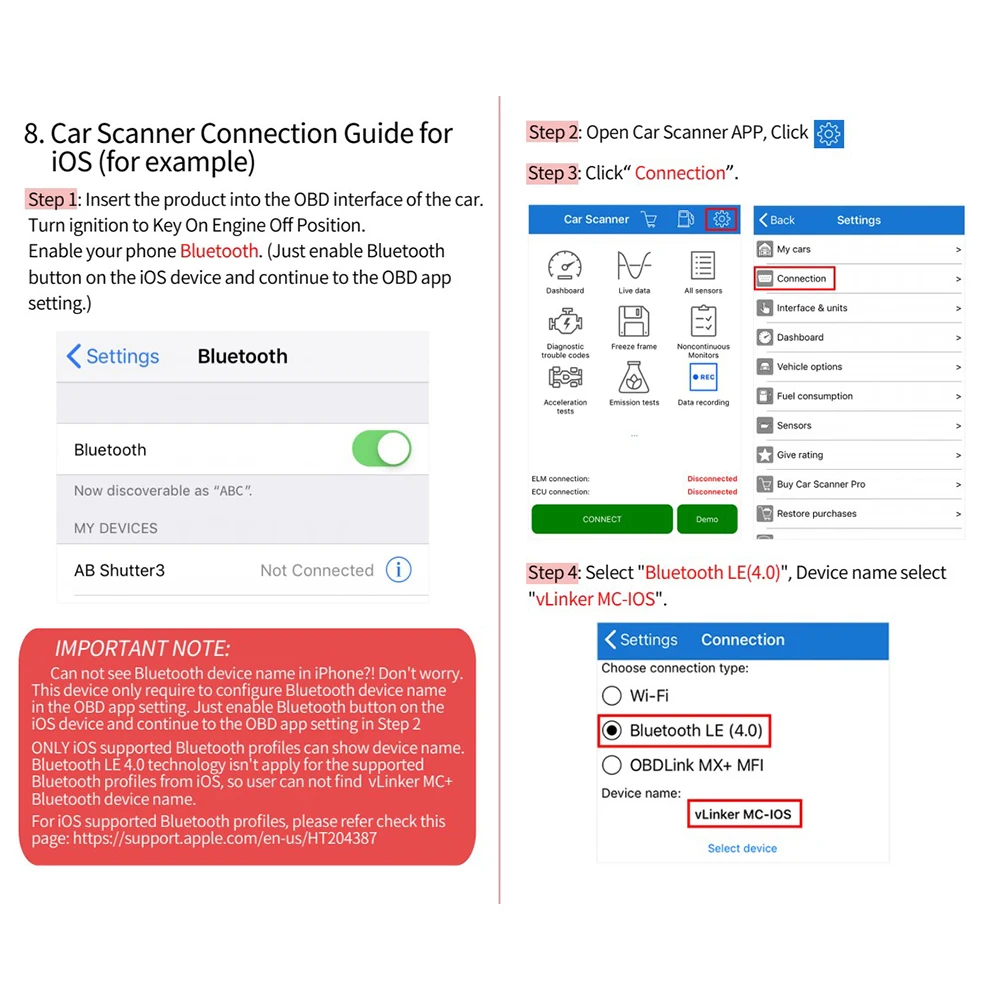

How to connect Vgate iCar Pro?
For Android

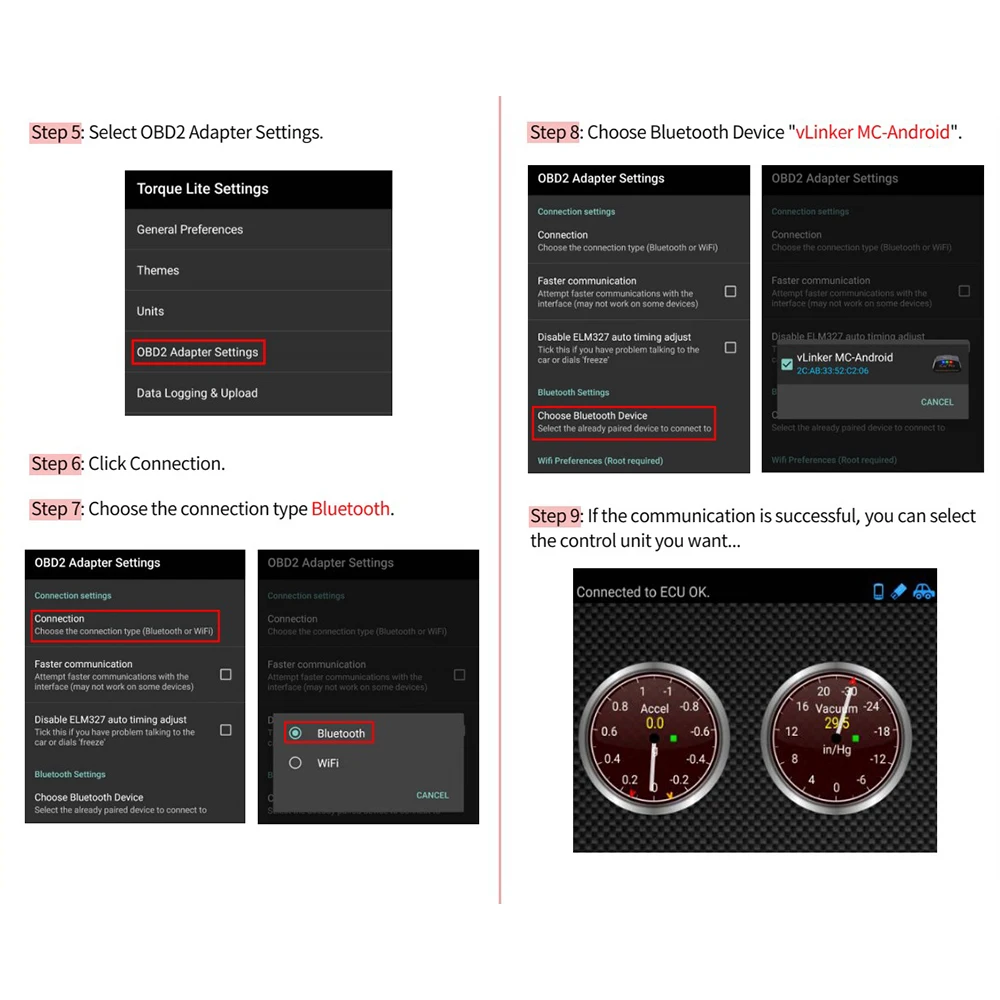

Please connect WIFI or Bluetooth-compatible directly in the software, do not connect on the phone's settings page, otherwise you will not be able to connect , Here is theBluetooth-compatible setting manual ( if your choose wifi version, pls choose wifi connect )

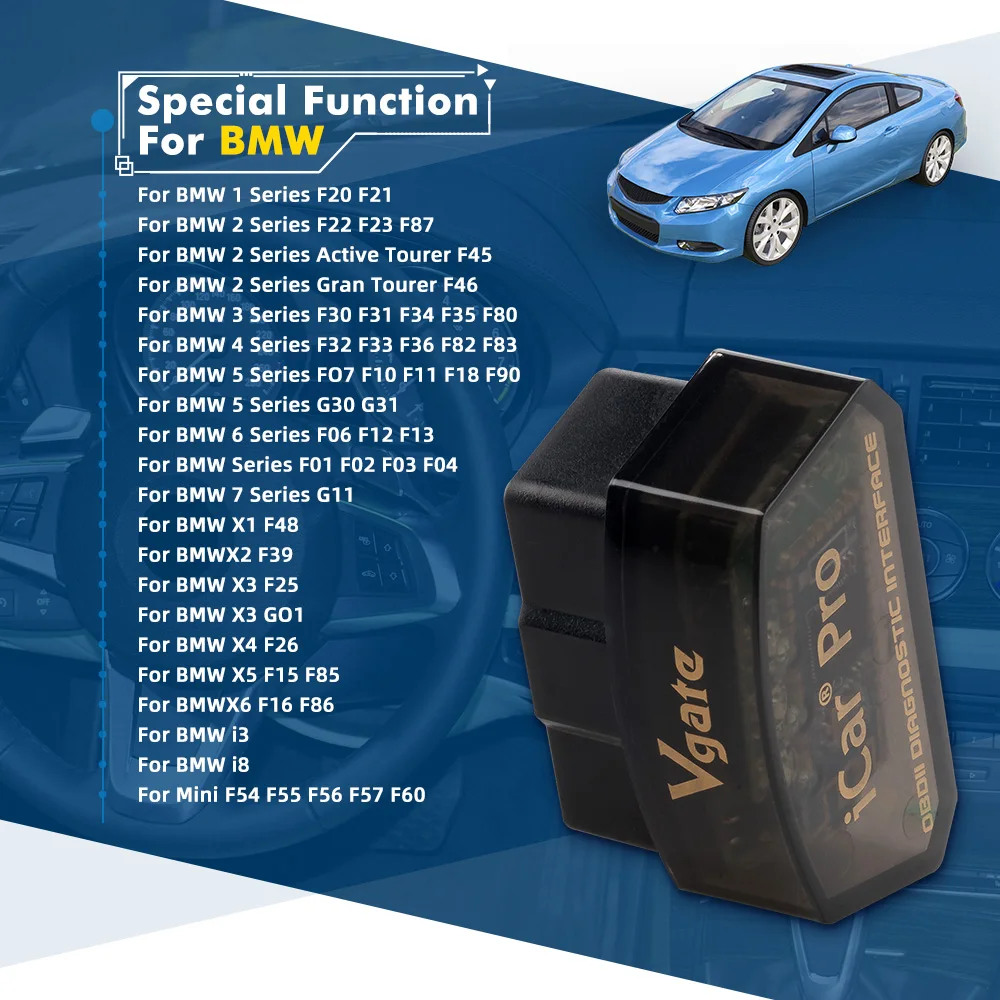

Bimmer Code for BMW-designated models :

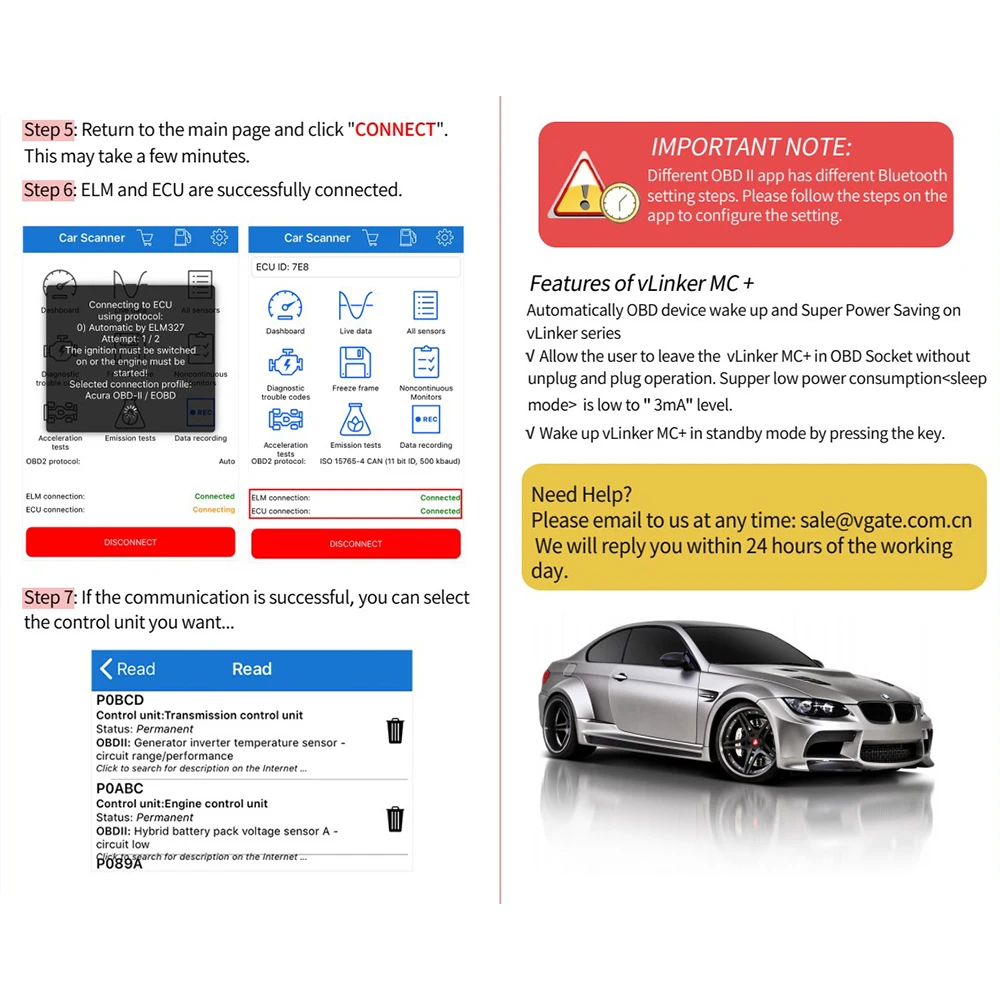

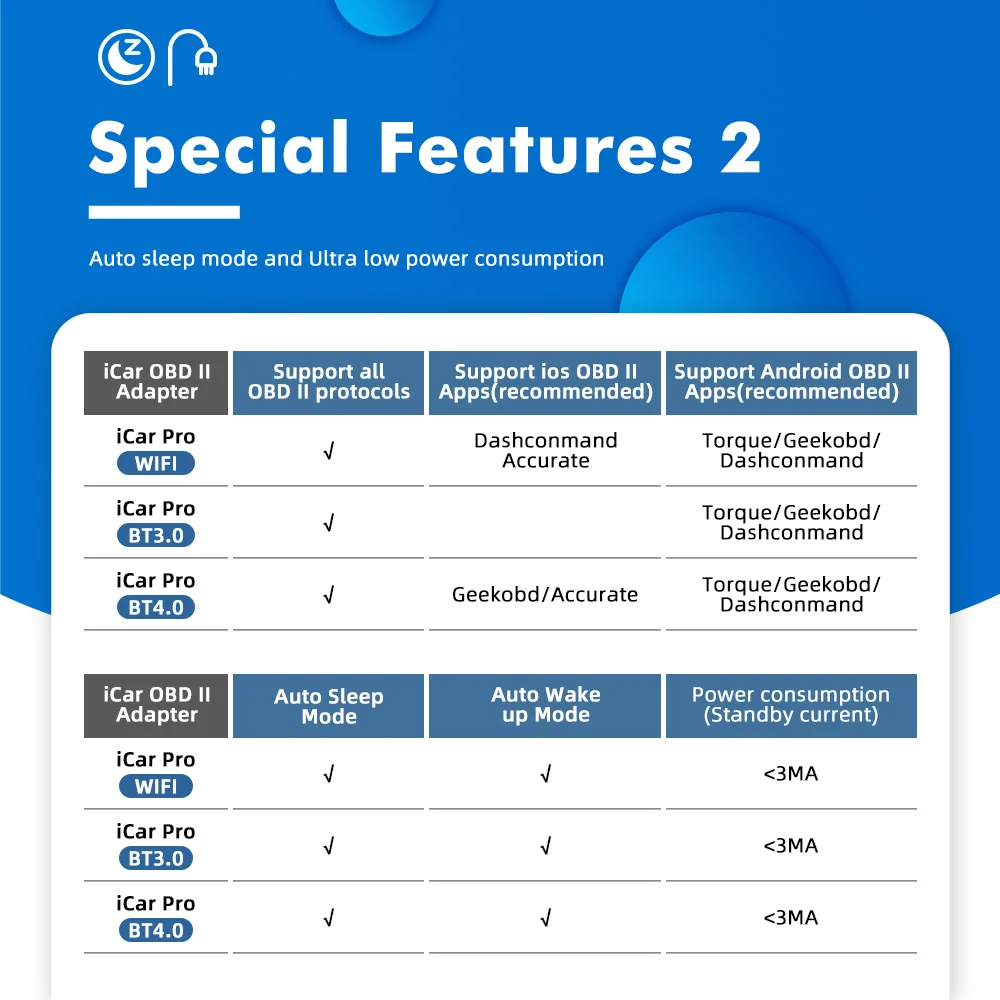

ICAR pro special features：Auto sleep mode and Ultra low power consumption
Vgate iCar Pro OBD II adpater is a High-quality automotive scanning tool, Supports all OBD-II protocols:
SAE J1850 PWM (41.6 Kbaud)
SAE J1850 VPW (10.4 Kbaud)
ISO9141-2 (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
SAE J1939 CAN (29bit ID, 250 * Kbaud)
USER1 CAN (11 * bit ID, 125 * Kbaud)
USER2 CAN (11 * bit ID, 50 * kbaud)
* Default Settings (User Adjustable)

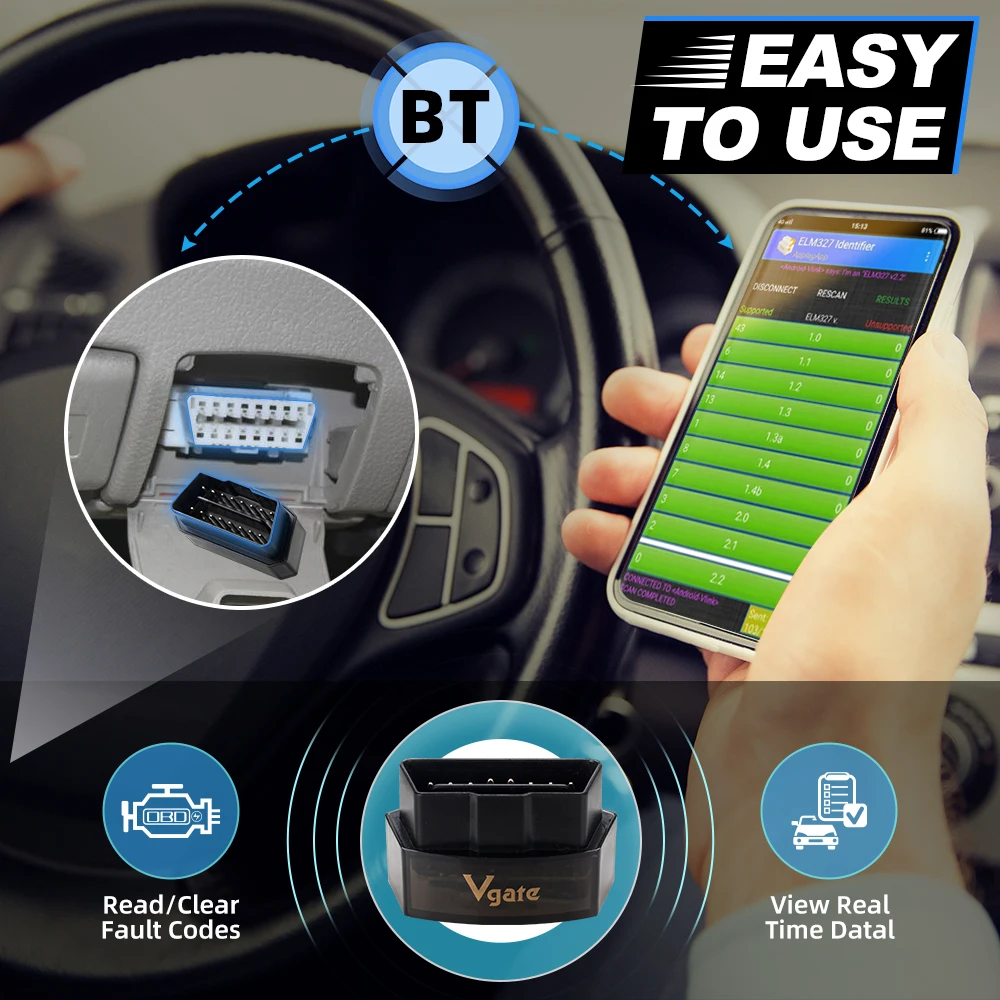

Easy to use:
Vgate iCar Pro Specification:
Supply Voltage: 11.5V-15V
Supply Current: <200Ma
Standby Current: <30Ma (TONWON Pro = <3Ma)
Operating temperature: -40 ℃ - 85 ℃
Operating Humidity: 5% - 95% RH Non-Dewfall
Hardware version：V2.2
Supported systems：Android/IOS
Connection method：Bluetooth-compatible 3.0/4.0/WIFI

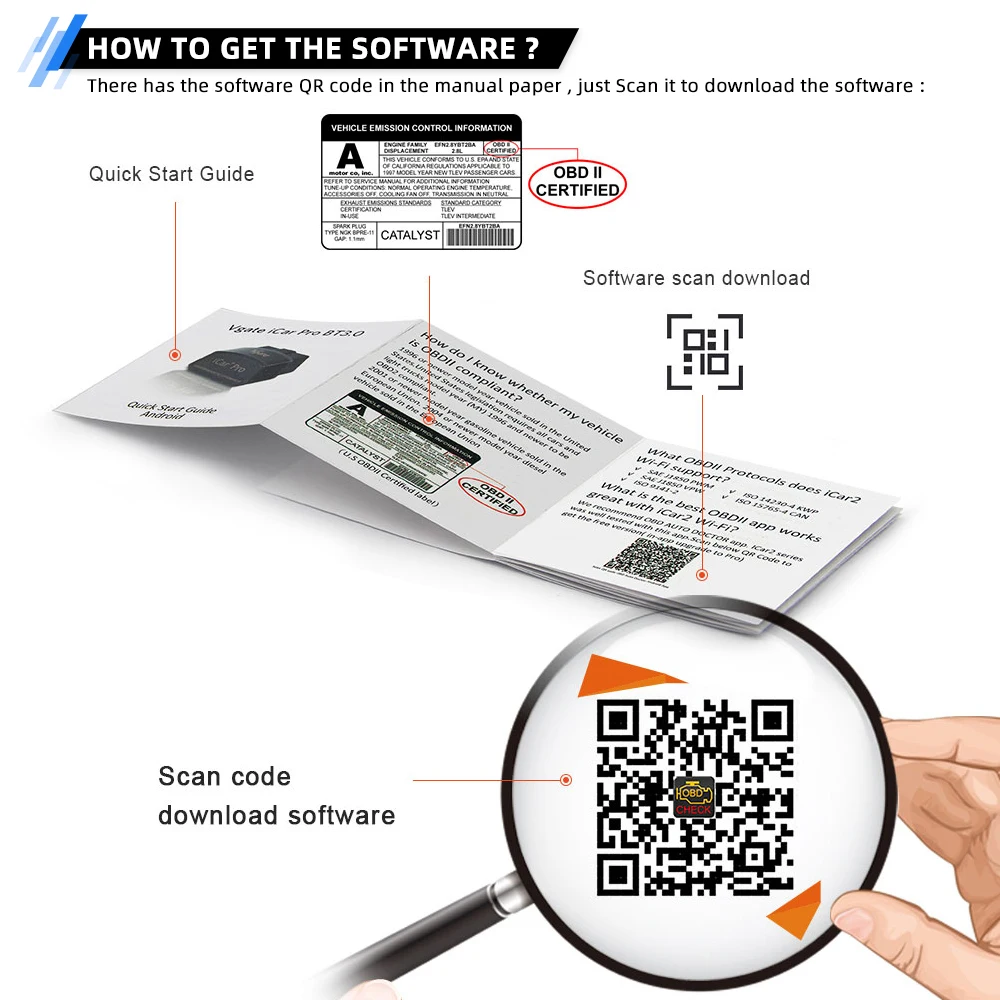

How to Get the software ?
There has the software QR code in the manual paper , just Scan it to download the software :

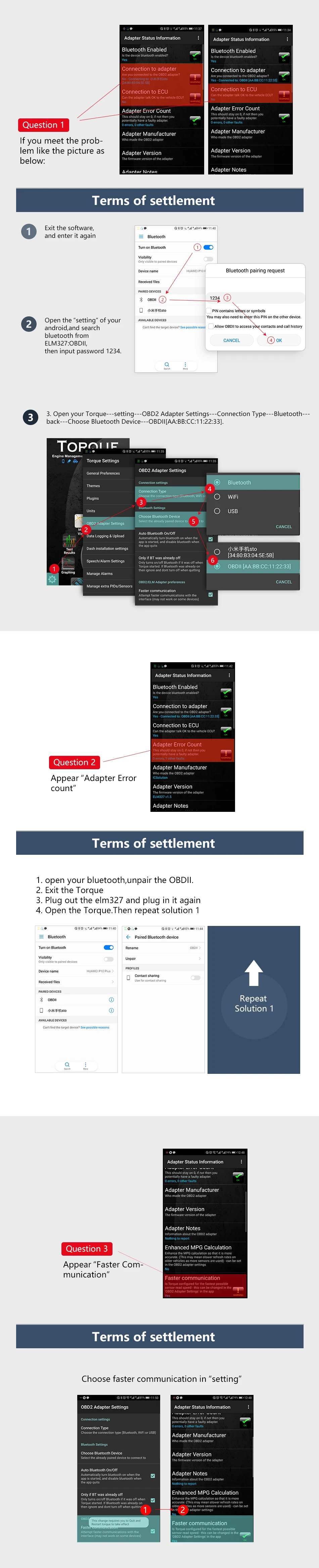

Problem settlement:

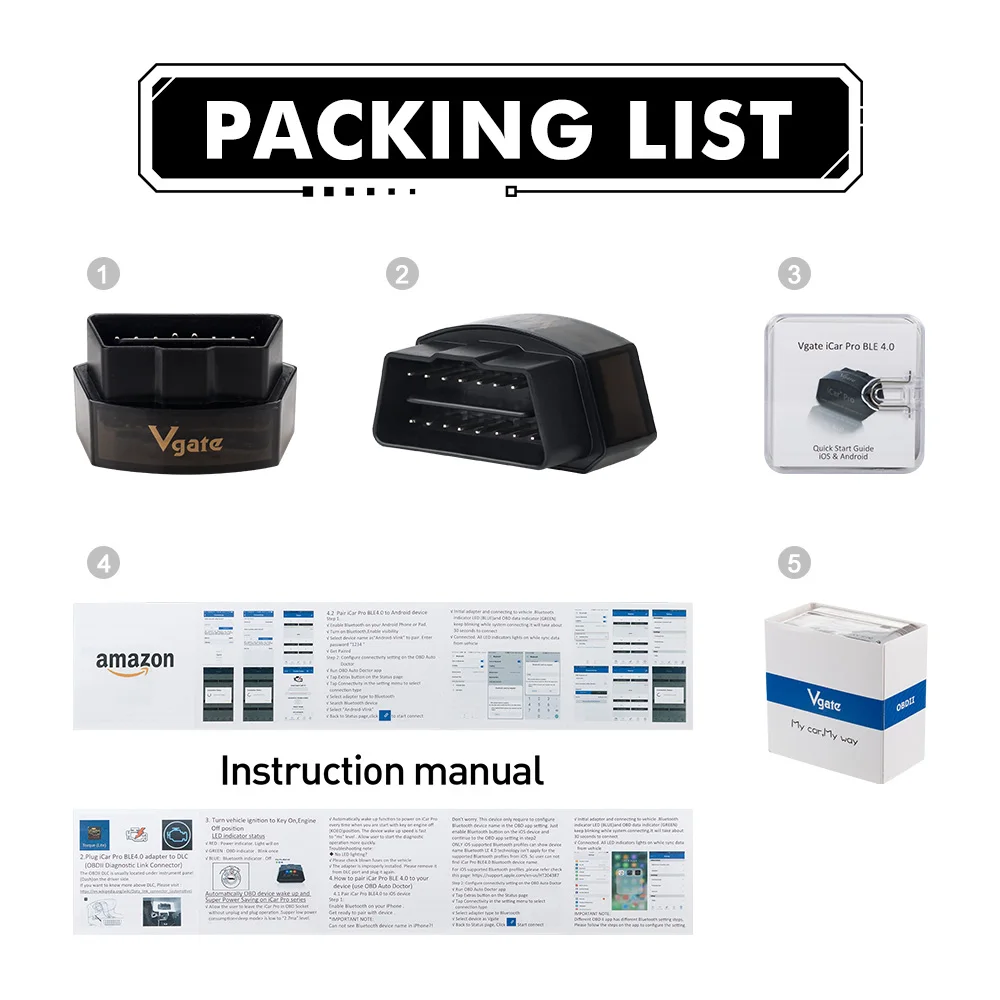

Package List:
-------------------------------------------------------------------------------------------------------------

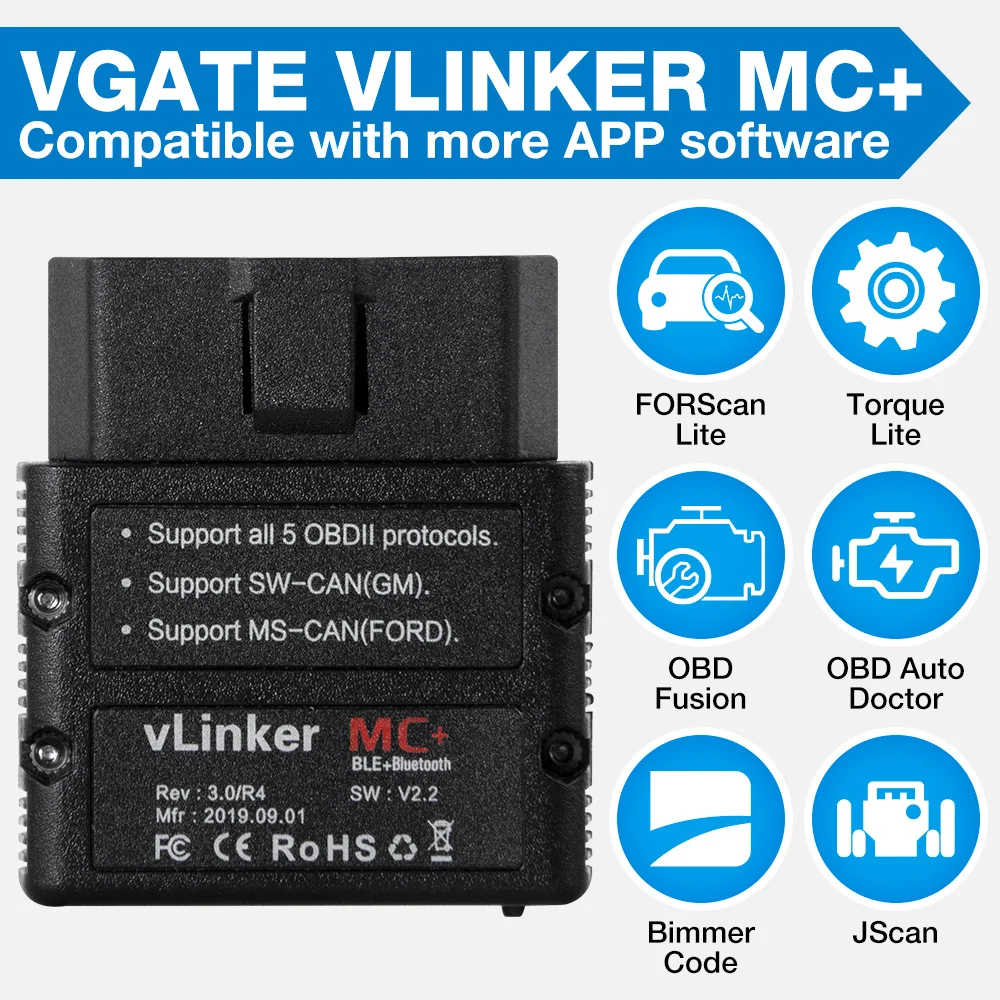

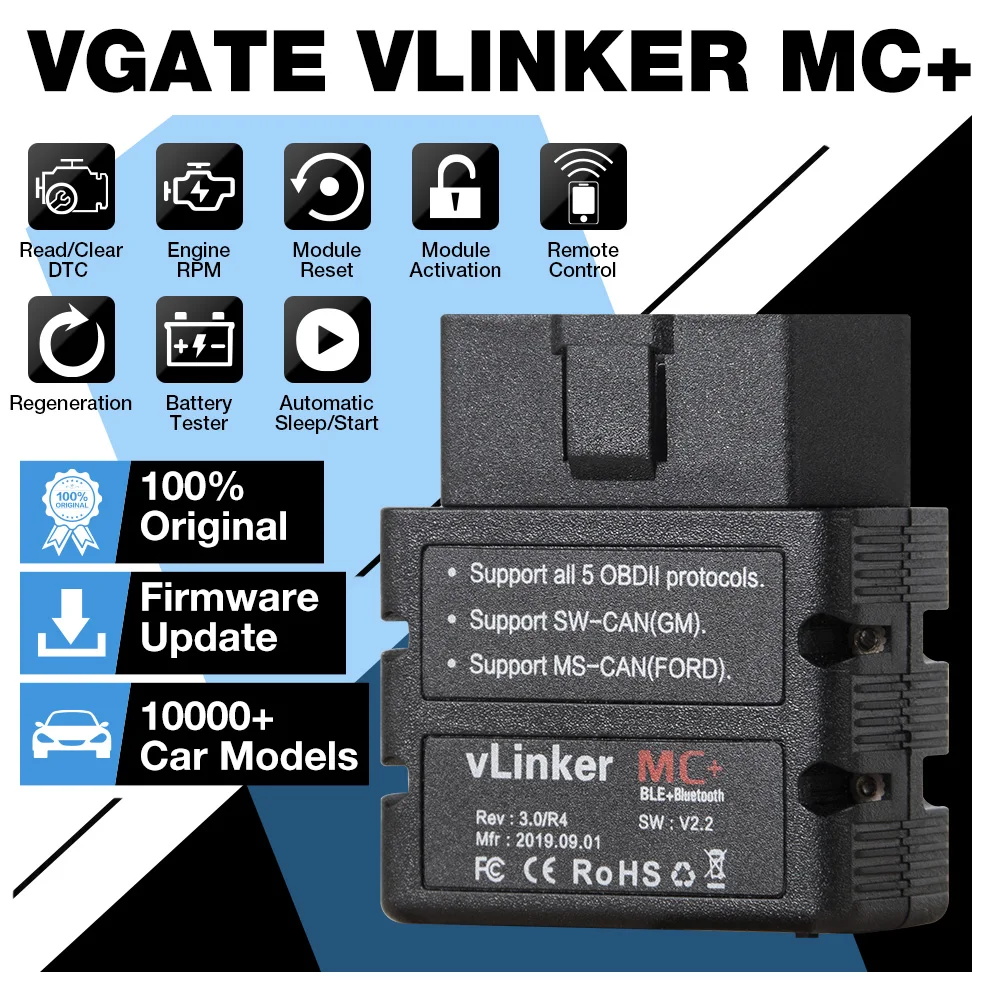

Vgate vLinker MC+ ELM 327 V2.2Bluetooth-compatible 4.0 WIFI ELM327 For Android/IOS Scanner OBD 2 OBD2 Car Diagnostic Auto Tool PK OBDLINK
Purchase Notes：
1.Our software to test if is origina Vgate, if you need you can contact us，Avoid getting fake Vgate from other stores
2.If you use Bluetooth-compatible 4.0 to Connected, please connect Bluetooth-compatible directly in the diagnostic APP

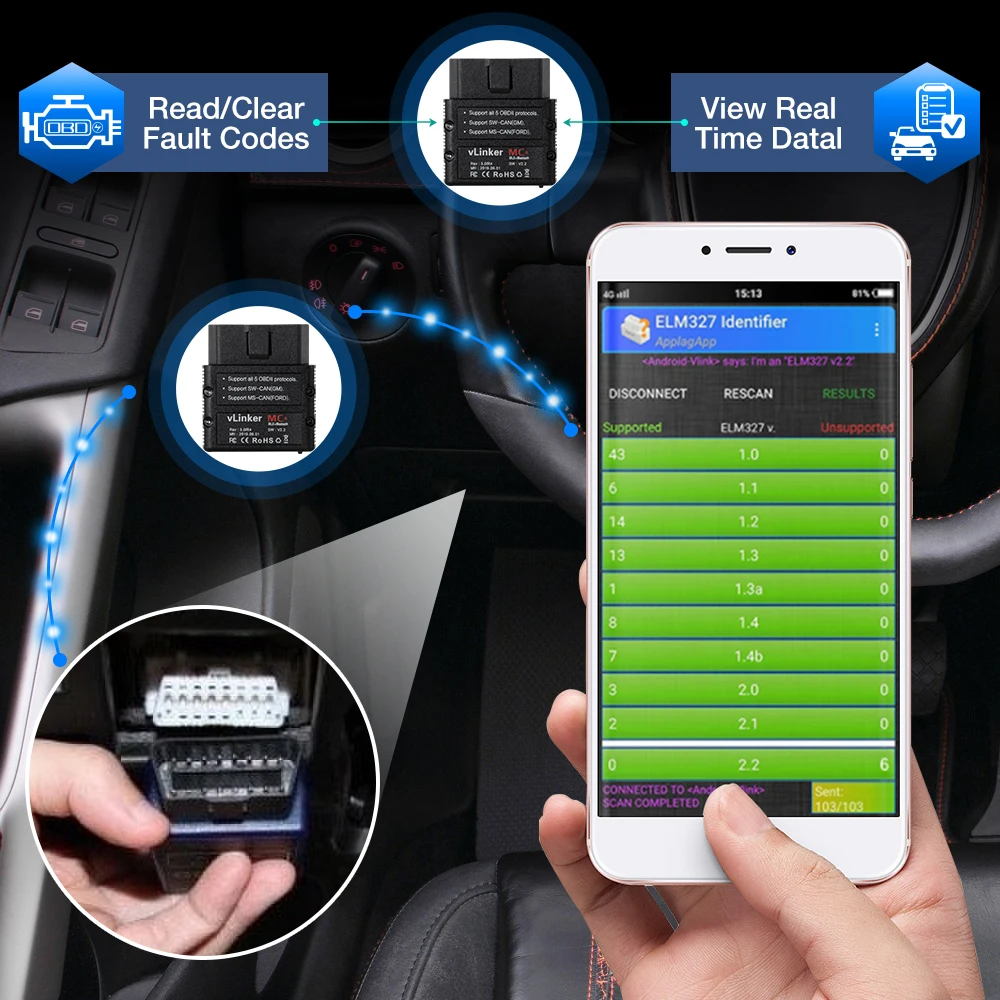

Why choose this vLink MC+?
100% Original Vgate vLinker BT3.0/4.0/WIFI:
compatible with 95%+ world car models.
1.Data buffer up to 2K bytes, UART baud rate increased to 230. 4 Kbpsc
2.Support Almost All ELM327/ELM329/OBDLINK Adapter Software
3.Automatic sleep and start to reduce power consumptione
4.OBD2 Standard Protocols+More protocols
5.Support user-defined commands
6.Request bytes up to 48 bytes
7.Support Firmware Update
8.Support user-defined APP

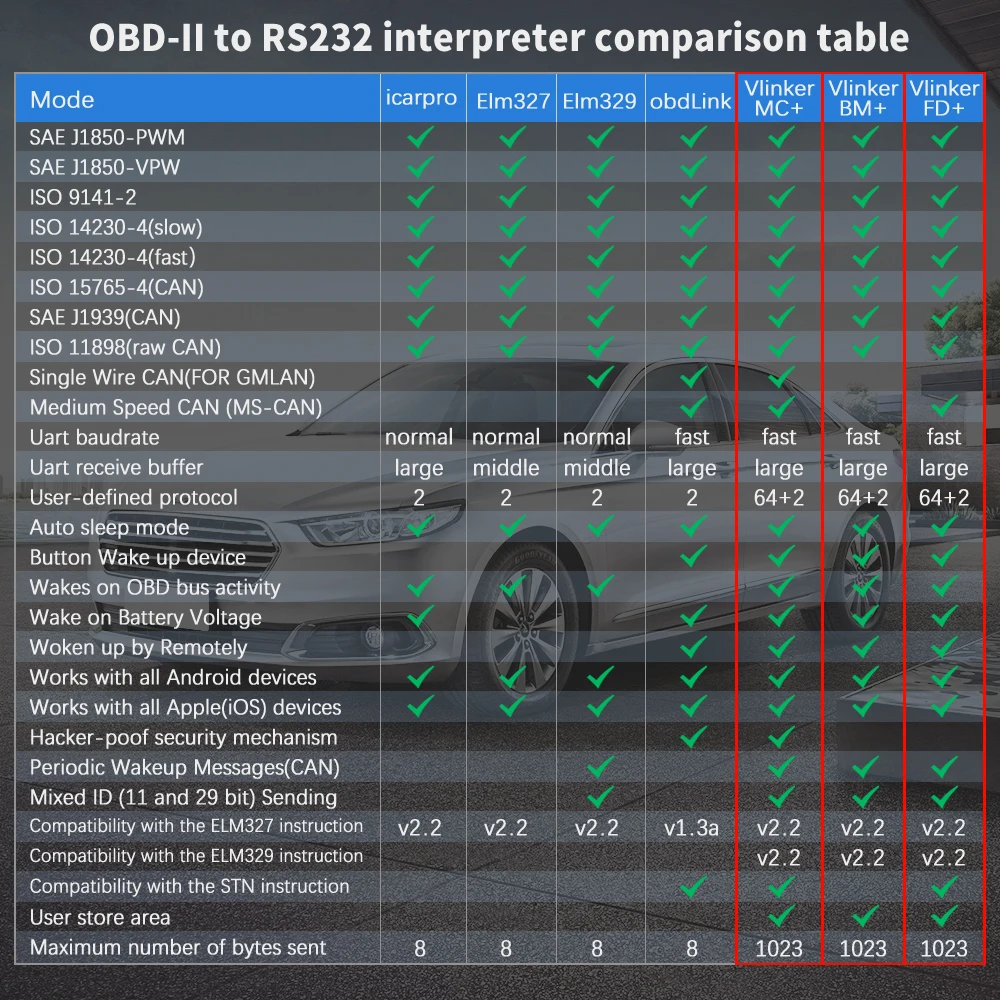

Support Protocols Multiple protocols：
--15 ELM format protocols;
-- 23 STN format protocols;
-- Up to 64 user-defined protocols.
OBDII 5 standard protocols：
-- SAE J1850 VPW
-- SAE J1850 PWM
-- ISO 9141-2
-- ISO 14230-4
-- ISO 15765-4 CAN
Additionalprotocols：
-- SAE J1939 CAN
-- ISO 11898 (raw CAN)
-- for GMLAN Single Wire CAN (for GMW3089)
-- for Ford Medium Speed CAN (MS CAN)
Theseprotocolscover almost 99% of the OBDII Cars on the market
Software Support：

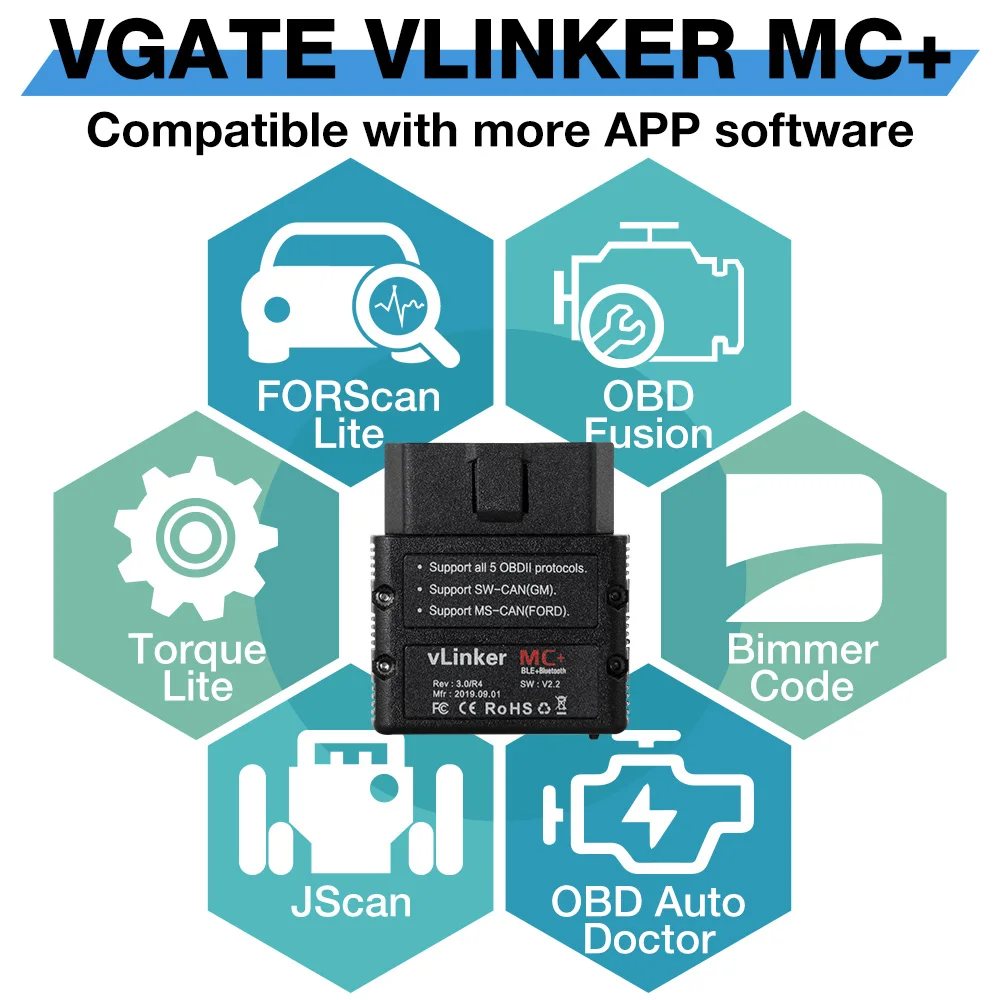

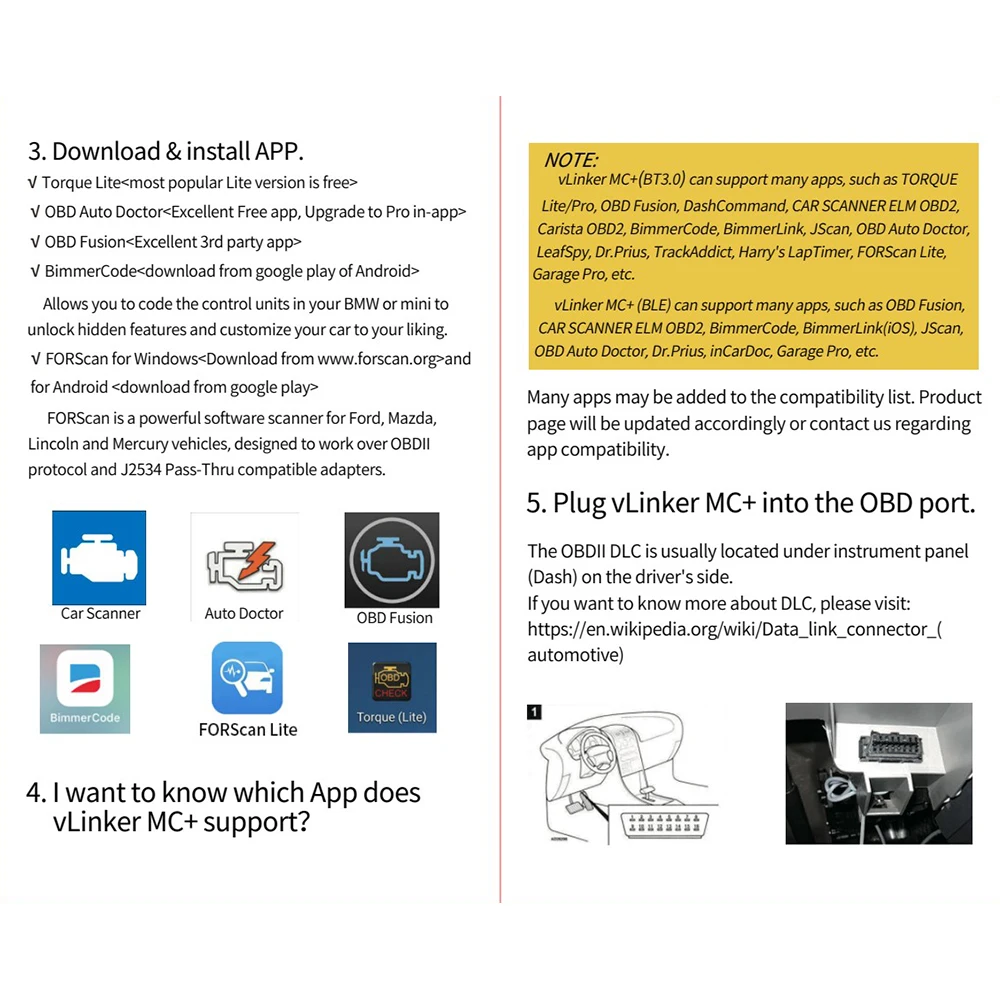

Perfect compatibility: For Bimmer Code/For Torque/For Forscan/For JScan/For Auto Doctor/For OBD Fusion etc. 99% APP Software
Please Note：
We only sell adapters. If you need to charge for some functions of the software you choose, this money is paid to the software developer，not to us
Rich instruction set, compatible with more APP software：
-- Fully compatible with ELM's AT command set;
-- Fully compatible with STN's ST command set;
-- Expanded 7 AT commands for HS-CAN, MS-CAN, SW-CAN;
--39 VT macro commands, some instructions are equivalent to the effect of several AT and ST instructions, simplifying the communication steps.
-- Compatible with ELM and STN power management solutions.
-- Support for instructions, UART silence, battery low voltage, OBD bus silence, etc. Up to 5 ways to go to sleep;
-- Support UART active, battery voltage drop, OBD bus active, key, etc. Up to 5 ways to wake up from sleep mode.
-- Device sleep power consumption is less than 2 mA.
-- OBD request byte up to 48 bytes, can meet the needs of some special long framecommunication.
-- UART data buffer up to 2K bytes, baudrate increased to 230.4Kbps.
-- 256-byte storage unit
-- More than 100,000 erasable times
-- Read and write operations on any unit in the storage area by using the VT command
-- Mix ID Sending" mode of CAN protocol.
-- Optional formatted send data according to protocol
-- Multiple WM sequence settings
-- Support AT command to manually set WM sequence
-- Support for specifying a protocol or a full protocol-wide temporary WM sequence
-- Support for a permanent link between a protocol and a private WM sequence
-- Secure bootloader for easy firmware updates
Typical Applications：
• Vehicle telematics
• Fleet management and tracking applications
• Usage-based insurance (UBI)
• OBD data loggers
• Automotive diagnostic scan tools and code readers
• Digital dashboards
Special Function:
1.Fully automatic identification of vehicle protocols,quick reading of vehicle information
2.Fully automatic standby/start,no manual switch button required
Connection method:

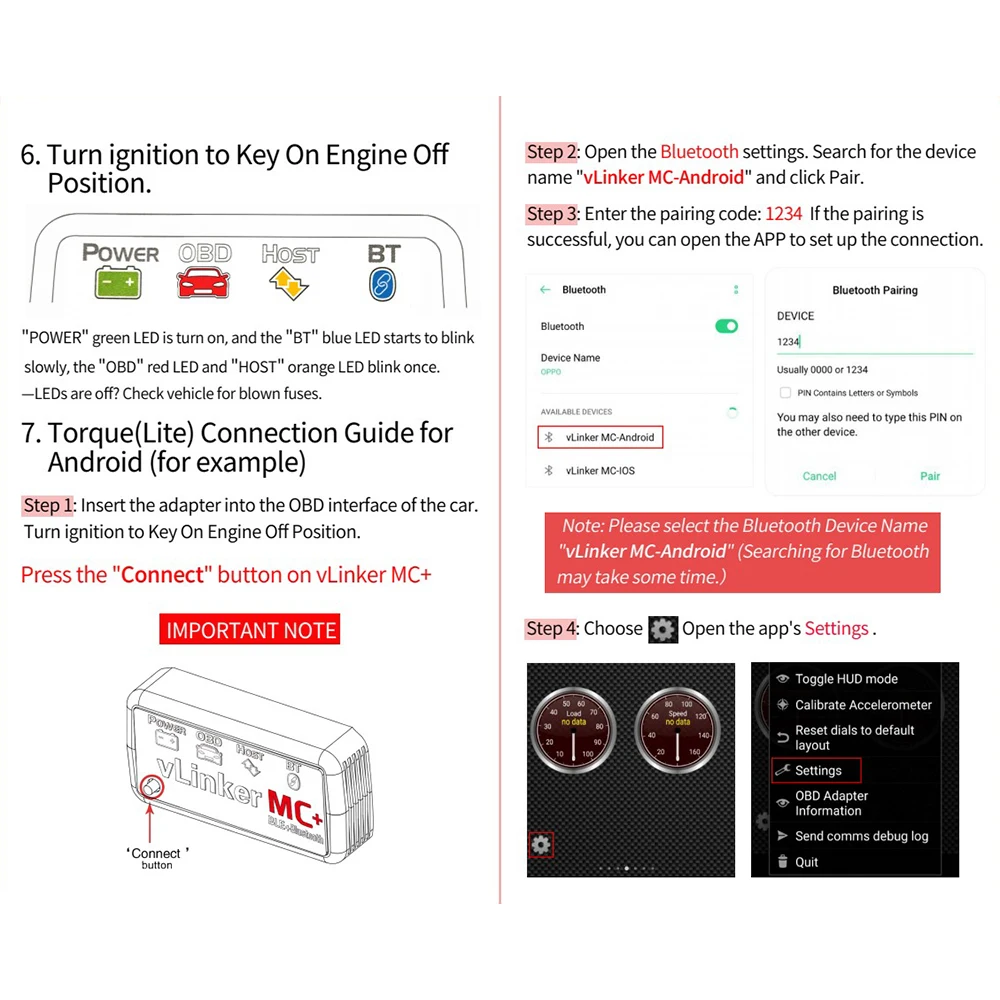

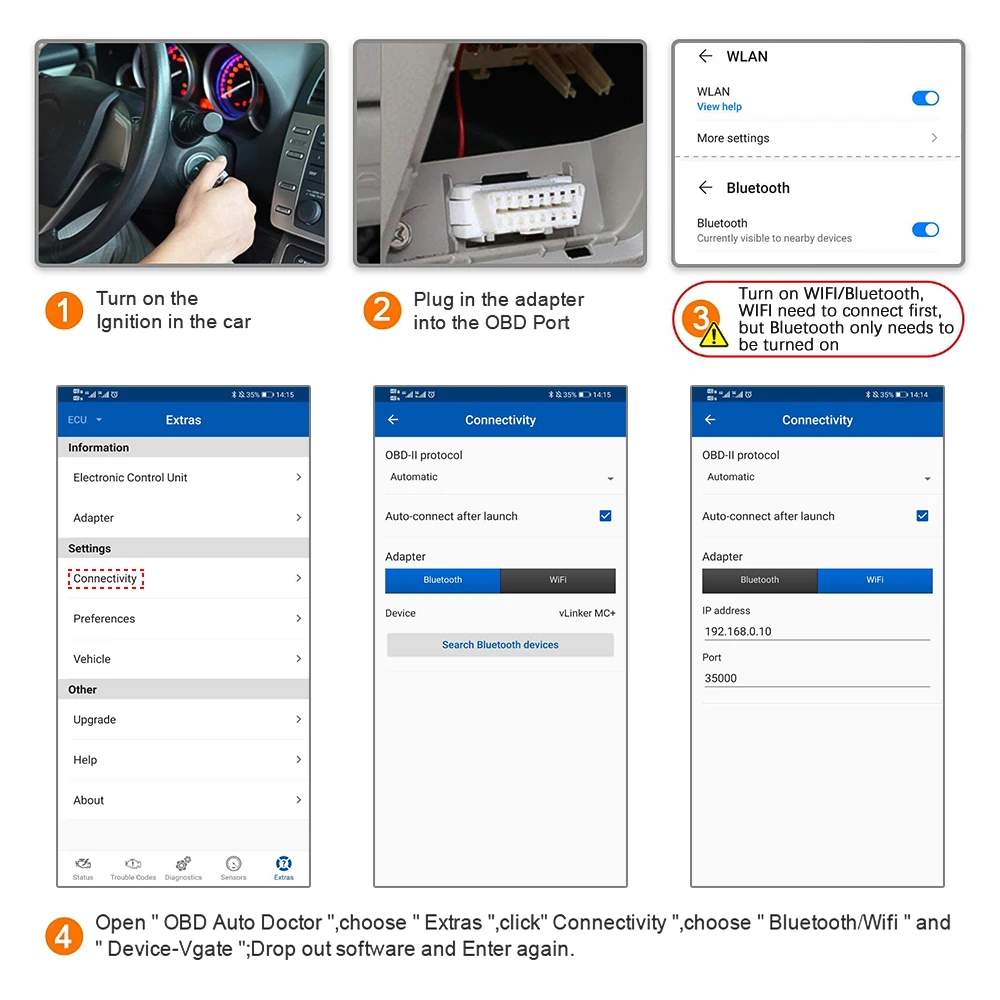

How to install the BT4.0/3.0(type 4 and type 5)?
1.Turn on theIgnition in the car
2.Plug in the adapterinto the OBD Port
3.Turn on Bluetooth-compatible only needs to be turned on
4.Open OBD Auto Doctor choose “Extras” ，cick “Connectivity”,choose “Bluetooth-compatible”and “vLinker MC+” Drop out software and Enter again
How to install the Wifi (type 3)?
1.Turn on theIgnition in the car
2.Plug in the adapterinto the OBD Port
3.Turn on WIFI,connected “vLinker”
4.Open OBD Auto Doctor choose “Extras” ，cick “Connectivity”,choose “WIFI”，Drop out software and Enter again

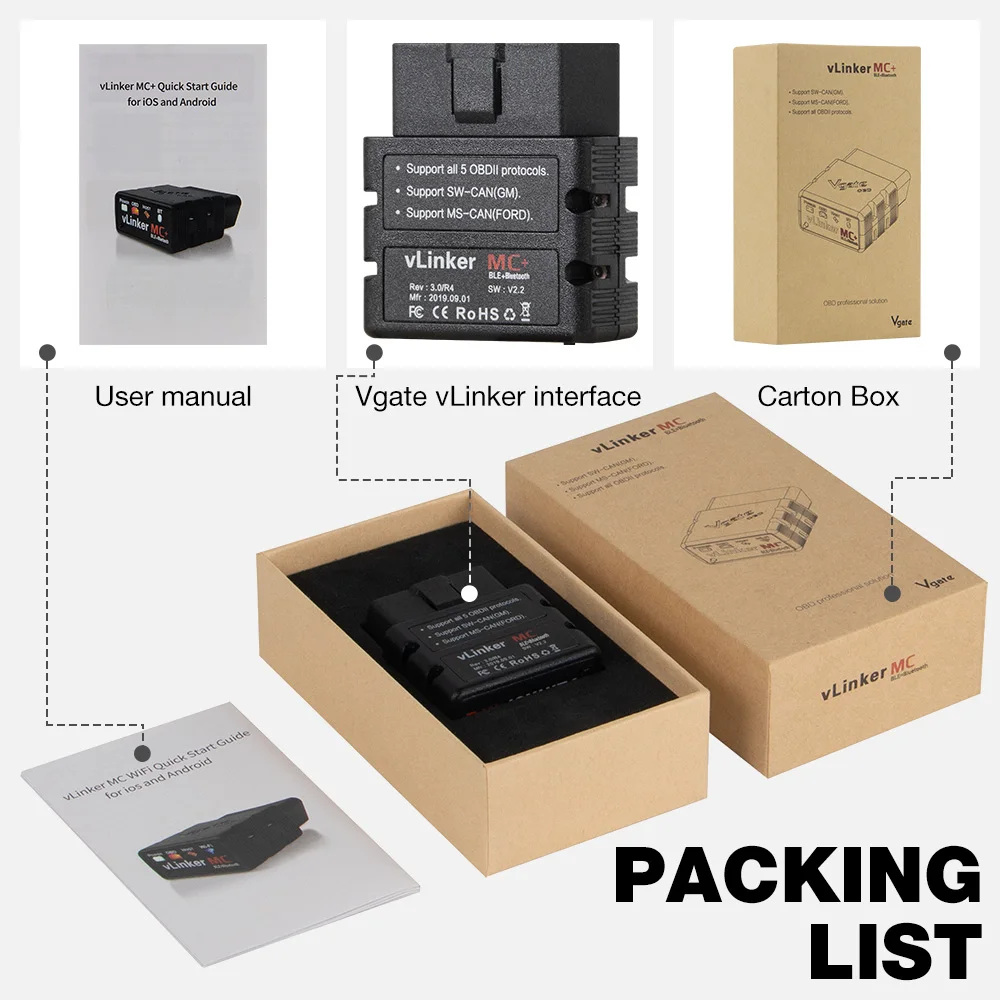

Package List:
1 x Vgate vLinker WIFI/BT3.0/BT4.0
1 x User manual
