Remote Control Peripherals/Devices: Battery Charging Units
Tool Supplies: Assembled class
Quantity: 1 pcs

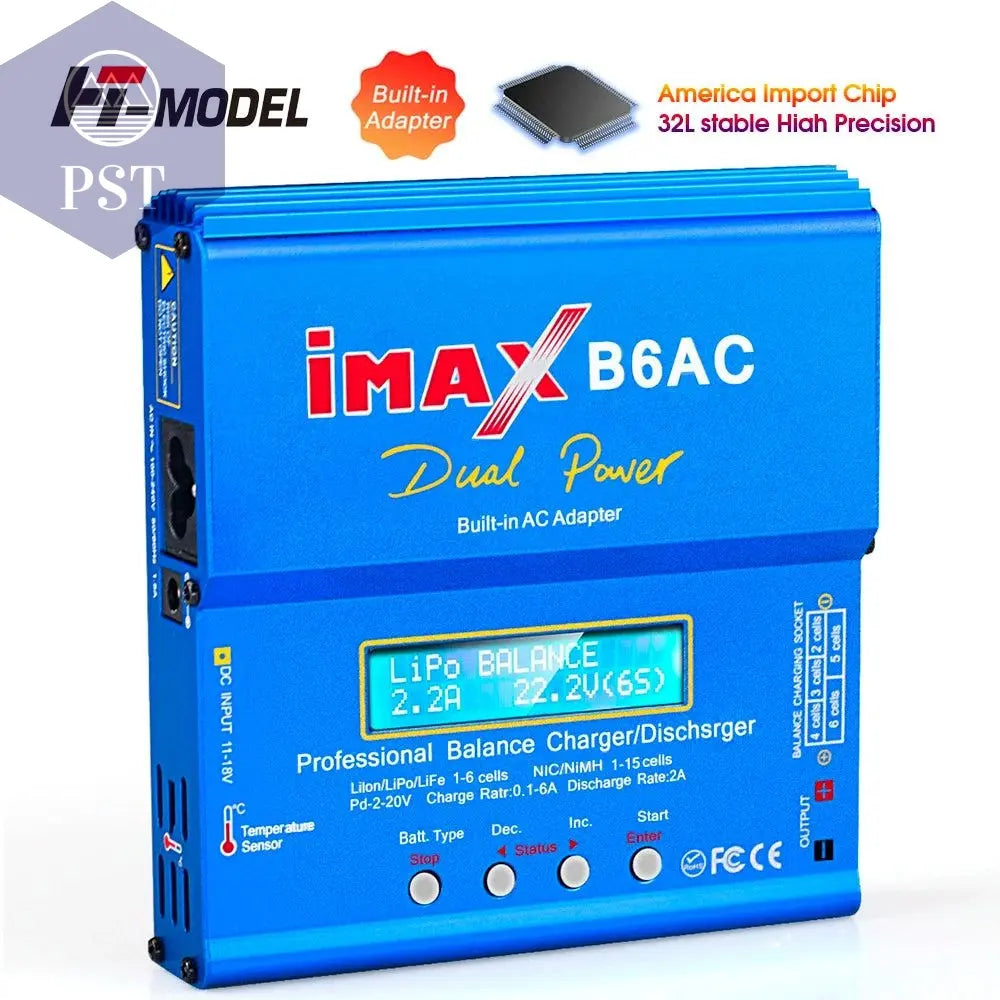

Model Number: Imax-B6 ac
Four-wheel Drive Attributes: Assemblage
Operation voltage range: DC 11.0 ~ 18.0 AC 100V ~ 240V
Circuit power: AC to DC adaptor (DC 11.0 ~ 18.0V / 5A)
Max. charge power: 80W
Max. discharge power: 5W
Charge current range: 0.1~6.0A
Discharge current range: 80W:0.1~2.0A
Current drain for balancing Li-Po: 300mAh/cell
Li-Ion / Polymer cell count: 1~6 series
Pb battery voltage: 2V~20V
features: RC charger
features 2: Llipo charger
features 3: Lipo battery charger
features 4: Balance charger
FAQ
Q:What Difference of B6ac between Hb6 ac ？
A:The HB6 ac and B6 ac is just the color and brand differ,same Function,In order to satisfy to color preferences of more customer,Please don't worry.
Q:Does The IMAX B6 ac Original?
A:Yes.Our imax b6 ac is "HTRC "Brand And produced by Our HTRC factory which focus on the high quality chargers.not Skyrc,no fake,and don't need Security Code,if you mind,please don't buy,thanks!
Q:How to charge correctly when received the goods?
A:after you received the goods,please follow those using turn
1.plug in the adapter firstly.
2.then plug the machine.
(if you plug the machine firstly,that will caused the machine can not open or work unnormally)
Q:How to use?
A:Do as below the picture show:
1.press the "battery type"button to choose the correct battery type
2.press the "start"button twice to the charging parameters setting
3.press the "dec."or "inc" and "start"button to set the current & voltage .
4.press and hold the "start"button for 3 seconds to entrt charging mode .
Specifications:
Operation Voltage range :
DC 11.0 ~ 18.0 Volt - AC 100V ~ 240V 50/60Hz Circuit Power : AC to DC adaptor (DC 11.0 ~ 18.0V / 5A) Max. Charge power 80W Max.Discharge power 5W Charge Current range : : 0.1~6.0A Discharge Current range : 0.1~2.0A Current Drain for Balancing Li-Po : 300mAh/cell NiCd / NiMH battery Cell Count : 1~15 cell Li-Ion / Polymer Cell Count : 1~6 series Pb Battery Voltage : 2V~20V Dimensions : approx. 13.5x14.4x3.6cm

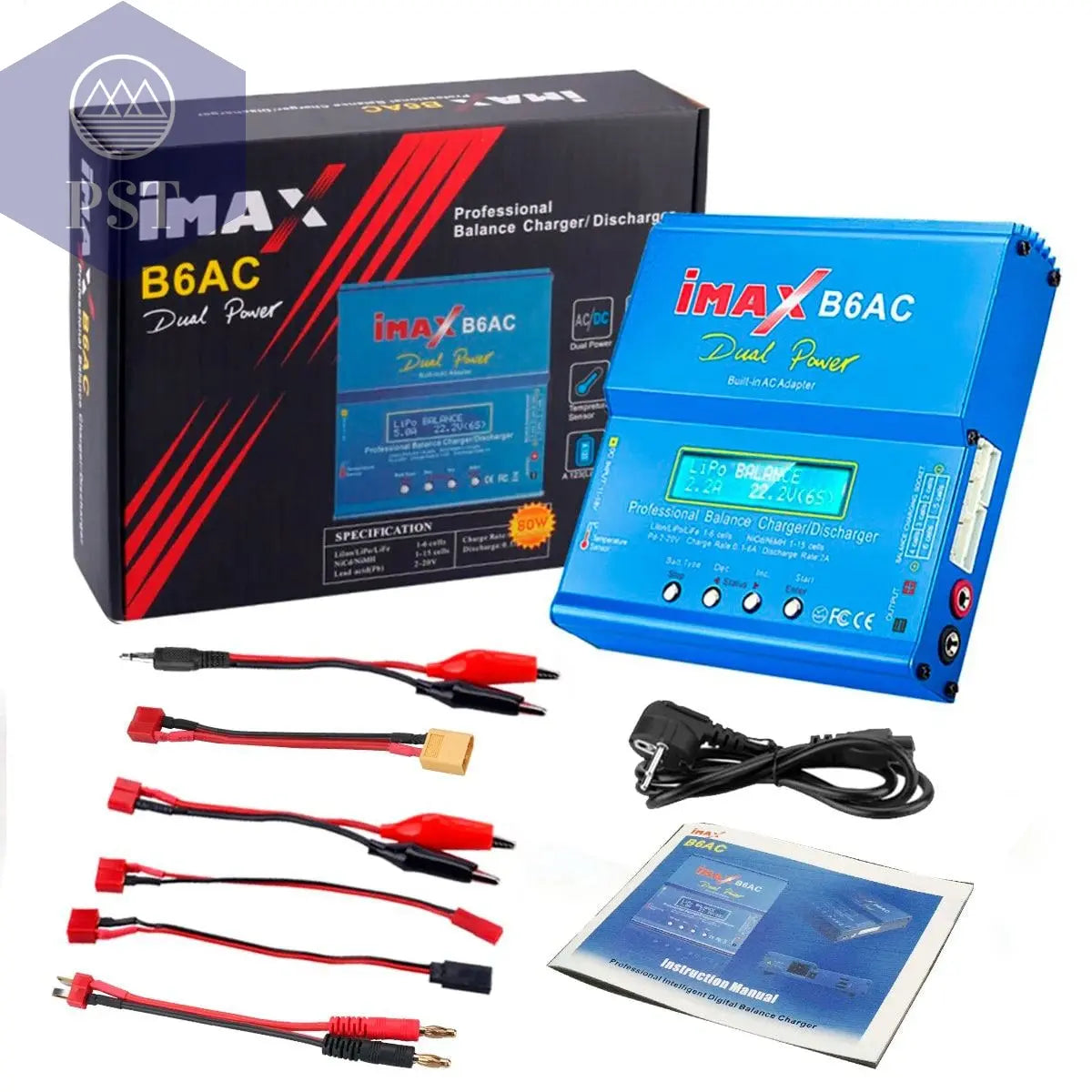

Package Included:
1 x B6AC Charger 1 x Multi-fuctional extension wire 1 x Universal crocodile clip 1 x JST plug
1 x Manual 1 x AC plug
Please note:
Our machine can't support to measure the 1s battery 's voltage and Resistance
Feedback:
Charge well and good quality:
NOTE:
1.About the positive electrode and negative electrode interfaces,you need to connect correctly,otherwise,it will fail to charger.
2.About the connectors,you need to connect correctly,otherwise,it will fail to charger.
3.If you choose the balance mode about the balance ports ,you need to connect correctly ,otherwise,it will fail to charger
4.After setting ,press the "ENTER"button for 3 seconds,then you can charge the battery .
